WIDE GAIN BANDWIDTH : 1.3MHz

.

INPUT COMMON-MODE VOLTAGE RANGE

INCLUDES GROUND

.

LARGE VOLTAGE GAIN : 100dB

.

VERY LOW SUPPLY CURRENT/AMPLI : 375

µA

.

LOW INPUT BIAS CURRENT : 20nA

.

LOW INPUT OFFSET CURRENT : 2nA

.

WIDE POWER SUPPLY RANGE :

SINGLE SUPPLY : +3V TO +30V

DUAL SUPPLIES :

±1.5V TO ±15V

DESCRIPTION

This circuit consists of four independent, high gain,

internally frequency compensated operational am-

plifiers which were designed specifically for automo-

tive and industrial control systems. It operates from

a single power supply over a wide range of volt-

ages. Operation from split power supplies is also

possible and the low power supply current drain is

independent of the magnitude of the power supply

voltage.

Inve rting Input 2

Non-inve rting Input 2

Non-inve rting Input 1

CC

V

-

CC

V

1

2

3

4

8

5

6

7

9

10

11

12

13

14

+

Output 3

Output 4

Non-inve rting Input 4

Inve rting Input 4

Non-inve rting Input 3

Inve rting Input 3

-

+

-

+

-

+

-

+

Output 1

Inve rting Input 1

Output 2

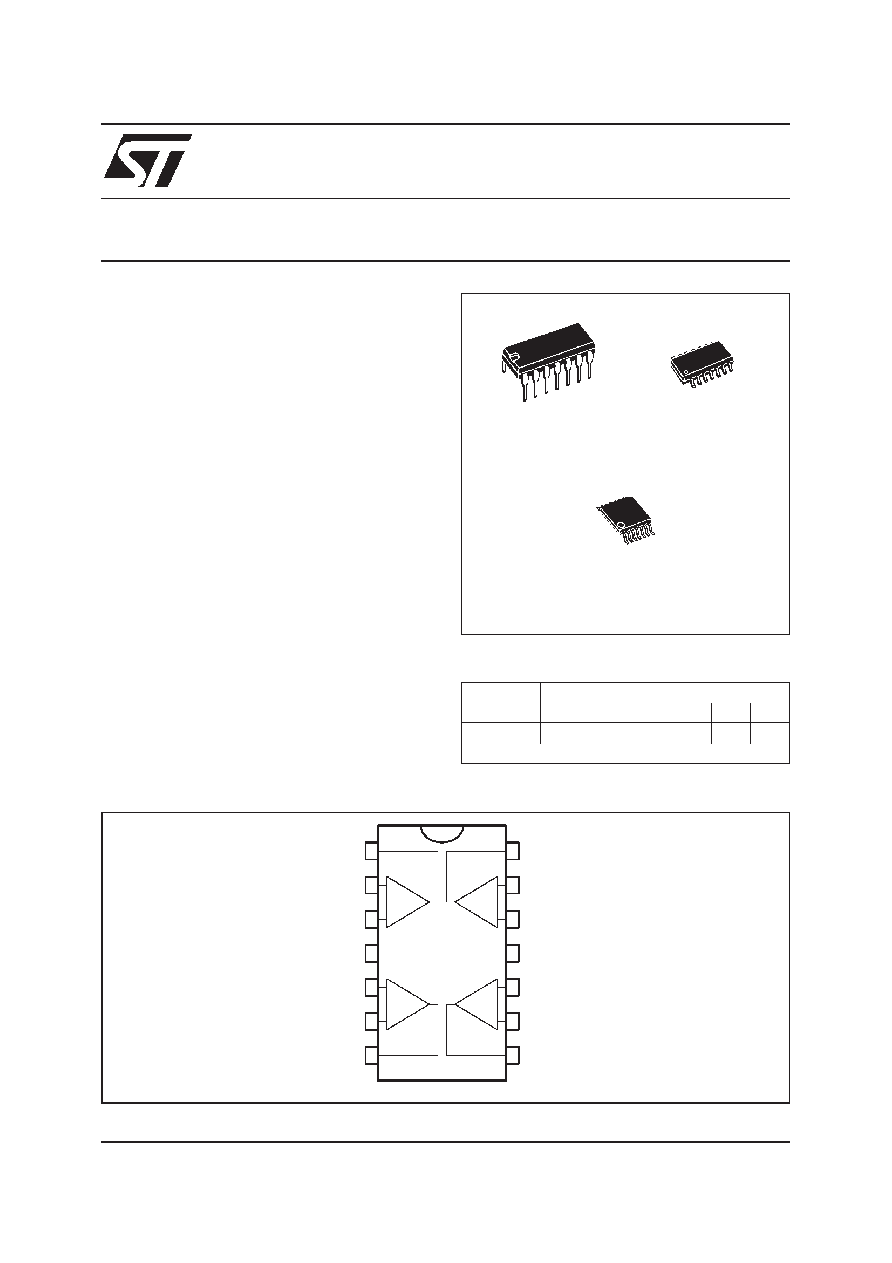

PIN CONNECTIONS (top view)

ORDER CODES

Part

Number

Temperature

Range

Package

NDP

LM2902

-40

oC, +125oC

••

•

Example : LM2902D

N

DIP14

(Plastic Package)

D

SO14

(Plastic Micropackage)

LOW POWER QUAD OPERATIONAL AMPLIFIERS

LM2902

August 1998

P

TSSOP14

(Thin Shrink Small Outline Package)

1/14
