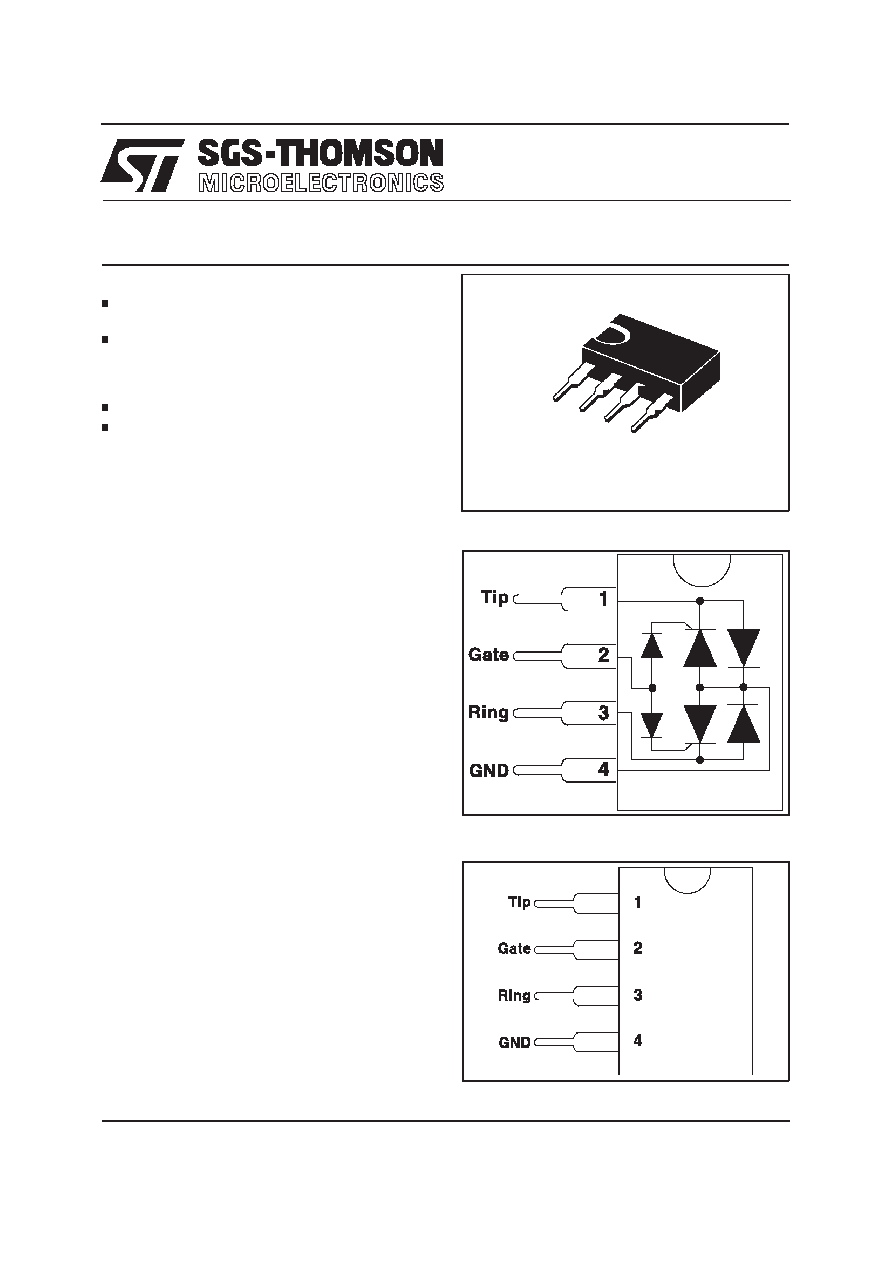

LCP150S
®
PROGRAMMABLE TRANSIENT VOLTAGE
SUPPRESSOR FOR SLIC PROTECTION
Application Specific Discretes
A.S.D.
™
February 1998 - Ed: 3
DUAL PROGRAMMABLE TRANSIENT
SUPPRESSOR
HIGH SURGE CURRENT CAPABILITY.
-IPP = 50A, 10/1000
µs.
-IPP = 60 A, 5/310
µs.
- IPP = 150 A, 2/10
µs.
HOLDING CURRENT = 150 mA min.
LOW GATE TRIGGERING CURRENT :
IGT = 15 mA max.
FEATURES
This device has been especially designed to
protect a subscriber line card interface (SLIC)
against transient overvoltage.
Positive overloads are clipped with two diodes,
while negative surges are suppressed by two
protection thyristors, their breakdown voltage
being is referenced to the -Vbat.
This component presents a very low gate
triggering current (IGT) in order to reduce the
current consumption on the PC board during the
firing phase.
DESCRIPTION
CONNECTION DIAGRAM
SIP 4
CCITT - K20
10/700
µs
1kV
5/310
µs
25A
VDE 0433
10/700
µs
2kV
5/200
µs
50A
VDE 0878
1.2/50
µs
1.5kV
1/20
µs
40A
FCC part 68
2/10
µs
2.5kV
2/10
µs
150A(*)
BELLCORE
TR-NWT-001089 : 2/10
µs
2.5kV
2/10
µs
150A(*)
10/1000
µs
1kV
10/1000
µs
50A(*)
CNET
0.5/700
µs
1kV
0.2/310
µs
25A
(*) with series resistors or PTC.
COMPLIES WITH THE FOLLOWING STANDARDS:
SCHEMATIC DIAGRAM
TM: ASD is trademarks of SGS-THOMSON Microelectronics.
