AD822

Rev. G | Page 24 of 28

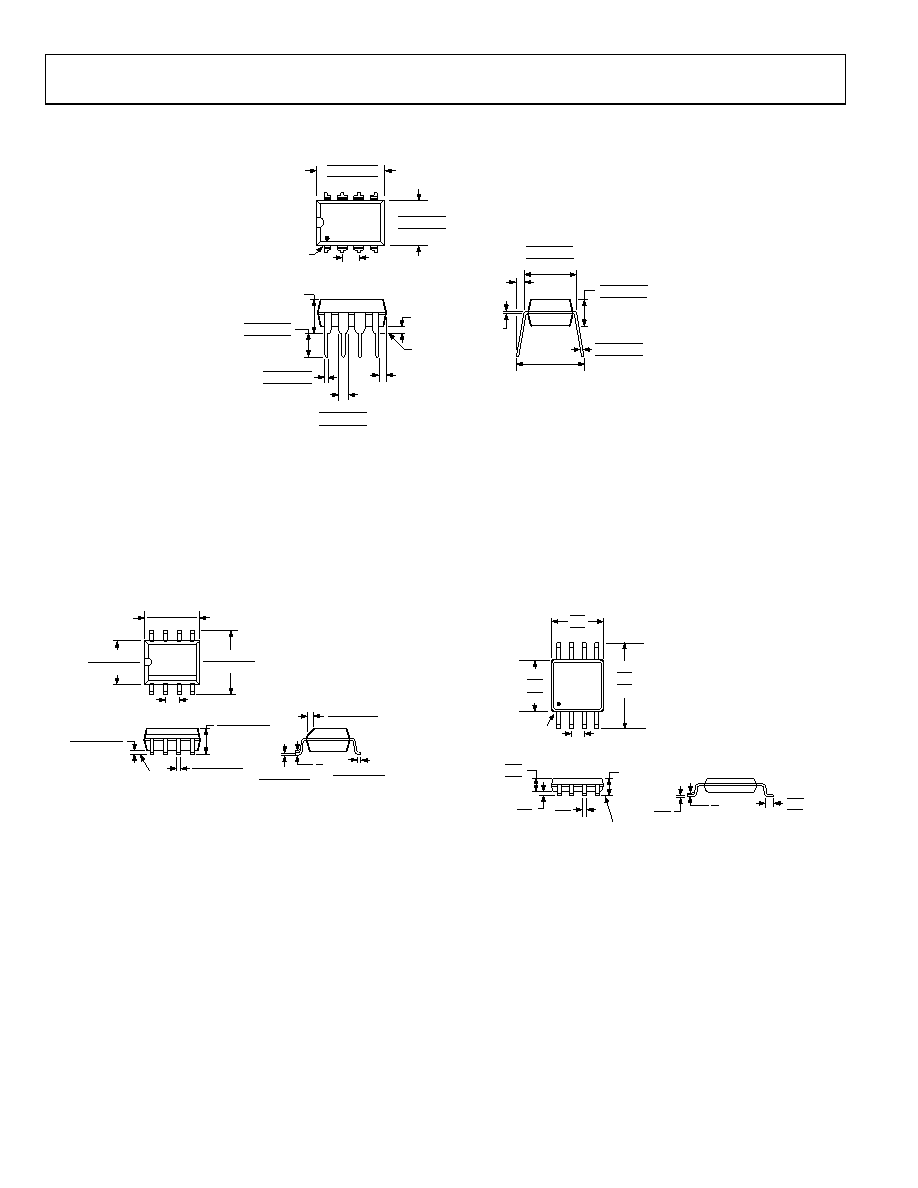

OUTLINE DIMENSIONS

COMPLIANT TO JEDEC STANDARDS MS-001-BA

0.022 (0.56)

0.018 (0.46)

0.014 (0.36)

SEATING

PLANE

0.015

(0.38)

MIN

0.210

(5.33)

MAX

PIN 1

0.150 (3.81)

0.130 (3.30)

0.115 (2.92)

0.070 (1.78)

0.060 (1.52)

0.045 (1.14)

0.280 (7.11)

0.250 (6.35)

0.240 (6.10)

0.100 (2.54)

BSC

0.400 (10.16)

0.365 (9.27)

0.355 (9.02)

0.060 (1.52)

MAX

0.430 (10.92)

MAX

0.014 (0.36)

0.010 (0.25)

0.008 (0.20)

0.325 (8.26)

0.310 (7.87)

0.300 (7.62)

0.195 (4.95)

0.130 (3.30)

0.115 (2.92)

0.015 (0.38)

GAUGE

PLANE

0.005 (0.13)

MIN

CONTROLLING DIMENSIONS ARE IN INCHES; MILLIMETER DIMENSIONS

(IN PARENTHESES) ARE ROUNDED-OFF INCH EQUIVALENTS FOR

REFERENCE ONLY AND ARE NOT APPROPRIATE FOR USE IN DESIGN.

CORNER LEADS MAY BE CONFIGURED AS WHOLE OR HALF LEADS.

Figure 52. 8-Lead Plastic Dual In-Line Package [PDIP]

Narrow Body

(N-8)

Dimensions shown in inches and (millimeters)

0.25 (0.0098)

0.17 (0.0067)

1.27 (0.0500)

0.40 (0.0157)

0.50 (0.0196)

0.25 (0.0099)

× 45°

8°

0°

1.75 (0.0688)

1.35 (0.0532)

SEATING

PLANE

0.25 (0.0098)

0.10 (0.0040)

5.00 (0.1968)

4.80 (0.1890)

4.00 (0.1574)

3.80 (0.1497)

1.27 (0.0500)

BSC

6.20 (0.2440)

5.80 (0.2284)

0.51 (0.0201)

0.31 (0.0122)

COPLANARITY

0.10

CONTROLLING DIMENSIONS ARE IN MILLIMETERS; INCH DIMENSIONS

(IN PARENTHESES) ARE ROUNDED-OFF MILLIMETER EQUIVALENTS FOR

REFERENCE ONLY AND ARE NOT APPROPRIATE FOR USE IN DESIGN.

COMPLIANT TO JEDEC STANDARDS MS-012-AA

Figure 53. 8-Lead Standard Small Outline Package [SOIC_N]

Narrow Body

(R-8)

Dimensions shown in millimeters and (inches)

COMPLIANT TO JEDEC STANDARDS MO-187-AA

0.80

0.60

0.40

8°

0°

PIN 1

0.65 BSC

SEATING

PLANE

0.38

0.22

1.10 MAX

3.20

3.00

2.80

COPLANARITY

0.10

0.23

0.08

3.20

3.00

2.80

5.15

4.90

4.65

0.15

0.00

0.95

0.85

0.75

Figure 54. 8-Lead Mini Small Outline Package [MSOP]

(RM-8)

Dimensions shown in millimeters
