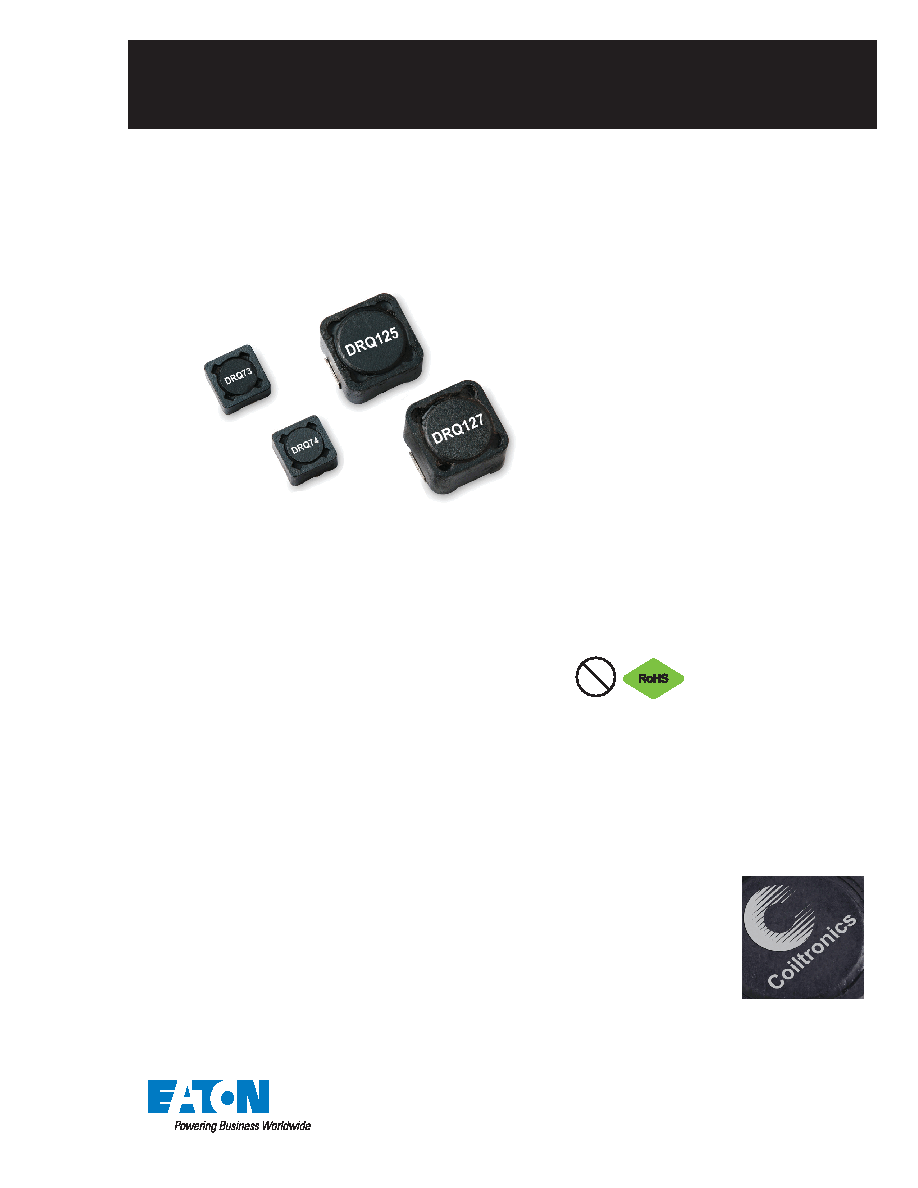

Product description

• Lead free, RoHS compliant

• 125°C maximum total operating

temperature

• Dual winding inductors that can be used

as either a single inductor, or in coupled

inductor/transformer applications

(1:1 turns ratio)

• Four sizes of shielded drum core

inductors

• Windings can be connected in series or

parallel, offering a broad range of

inductance and current ratings

• Peak current ratings from 0.13 to 56

amps

• RMS current ratings from 0.128 to 17.9

amps

• Inductance ratings from 0.33μH to

4.02mH

• Surface mount

• 200Vac Isolation between windings

• Ferrite core material

Applications

• As a transformer: SEPIC, flyback

• As an inductor: buck, boost, coupled inductor

• DC-DC Converters

• VRM inductor for CPU and DDR power supplies

• Input and output filter chokes

Environmental data

• Storage temperature range (Component):

-40°C to +125°C

• Operating temperature range: -40°C to +125°C

(ambient + self-temperature rise)

• Solder reflow temperature: J-STD-020D

compliant

Packaging:

• Supplied in tape and reel packaging (per reel):

- DRQ73 1350

- DRQ74 1100

- DRQ125 600

- DRQ127 350

Coiltronics DRQ Series

Dual winding, shielded inductors/transformers

Technical Data 4311

Effective April 2014

Supersedes December 2007

Coiltronics is now

part of Eaton

Same great

products plus

even more.

The Coiltronics brand of

magnetics (formerly of

the Bussmann Division of

Cooper Industries)

is now part of

Eaton’s Electrical Group,

Electronics Division.
