ADM1192
Rev. B | Page 17 of 20
KELVIN SENSE RESISTOR CONNECTION
When using a low value sense resistor for high current measure-
ment, the problem of parasitic series resistance can arise. The
lead resistance can be a substantial fraction of the rated resistance,
making the total resistance a function of lead length. This problem
can be avoided by using a Kelvin sense connection. This type of
connection separates the current path through the resistor and

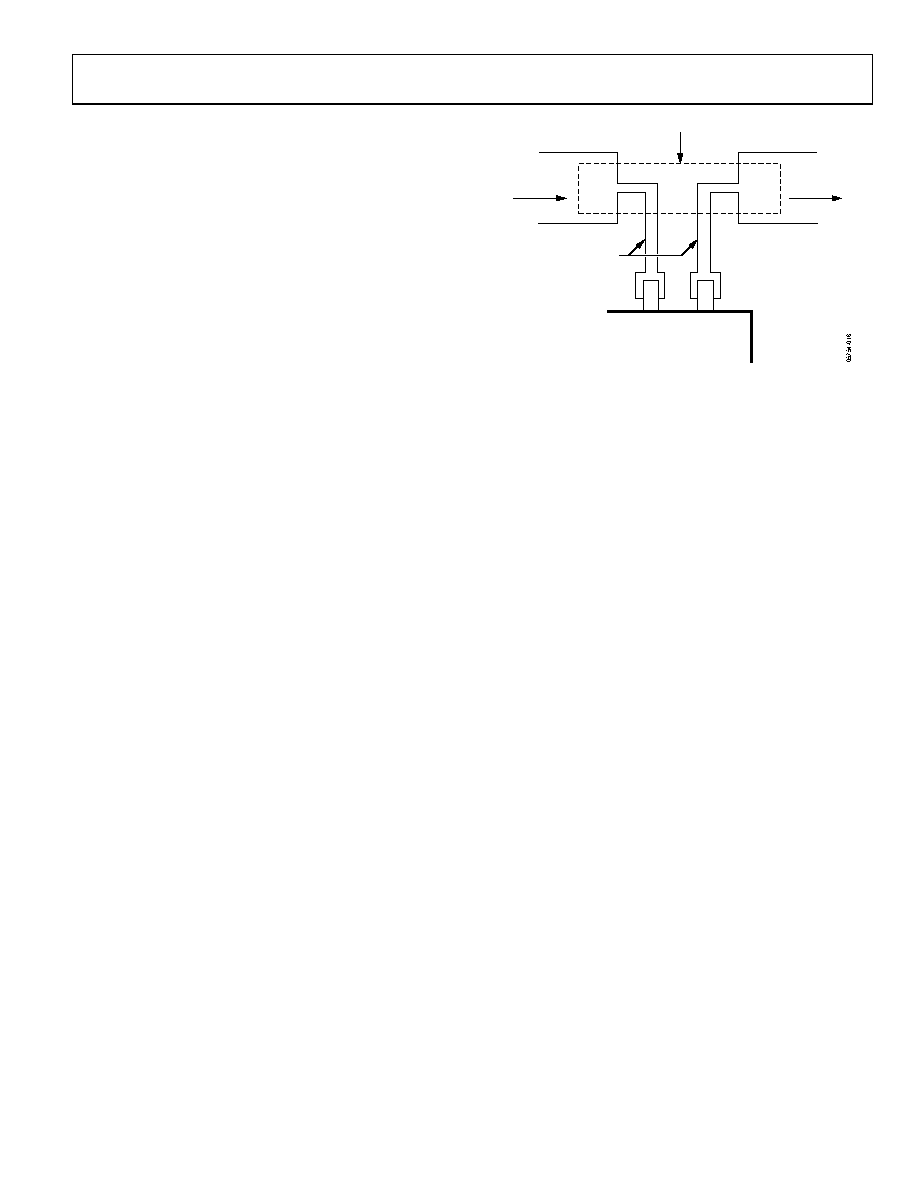

the voltage drop across the resistor. Figure 30 shows the correct
way to connect the sense resistor between the VCC pin and the
SENSE pin of the ADM1192.
SENSE RESISTOR
KELVIN SENSE TRACES
VCC
SENSE
ADM1192
CURRENT
FLOW FROM
SUPPLY
CURRENT
FLOW TO
LOAD
Figure 30. Kelvin Sense Connections
