1/6

L149

July 2003

s

HIGH OUTPUT CURRENT (4A peak)

s

HIGH CURRENT GAIN (10.000 typ.)

s

OPERATION UP TO ± 20 V

s

THERMAL PROTECTION

s

SHORT CIRCUIT PROTECTION

s

OPERATION WITHIN SOA

s

HIGH SLEW-RATE (30 V/ms)

DESCRIPTION

The L149 is a general purpose power booster in

Pentawatt ® package consisting of a quasi-com-

plentary darlington output stage with the associat-

ed biasing system an inhibit facility.

The device is particularly suited for use with an op-

erational amplifier inside a closed loop configura-

tion to increase output current.

Pentawatt V

ORDERING NUMBER: L149V

4A LINEAR DRIVER

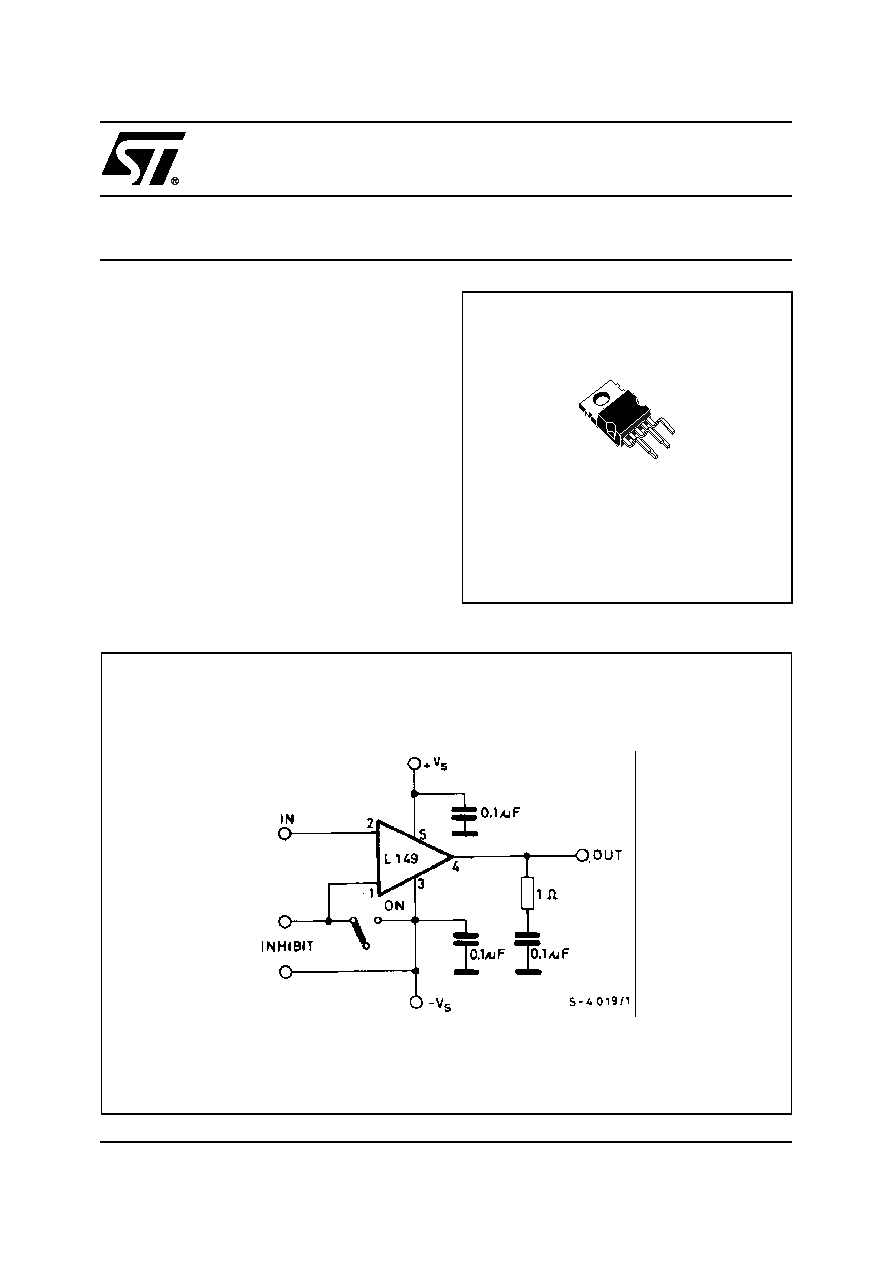

TEST CIRCUIT
