SSM2301

Rev. A | Page 6 of 16

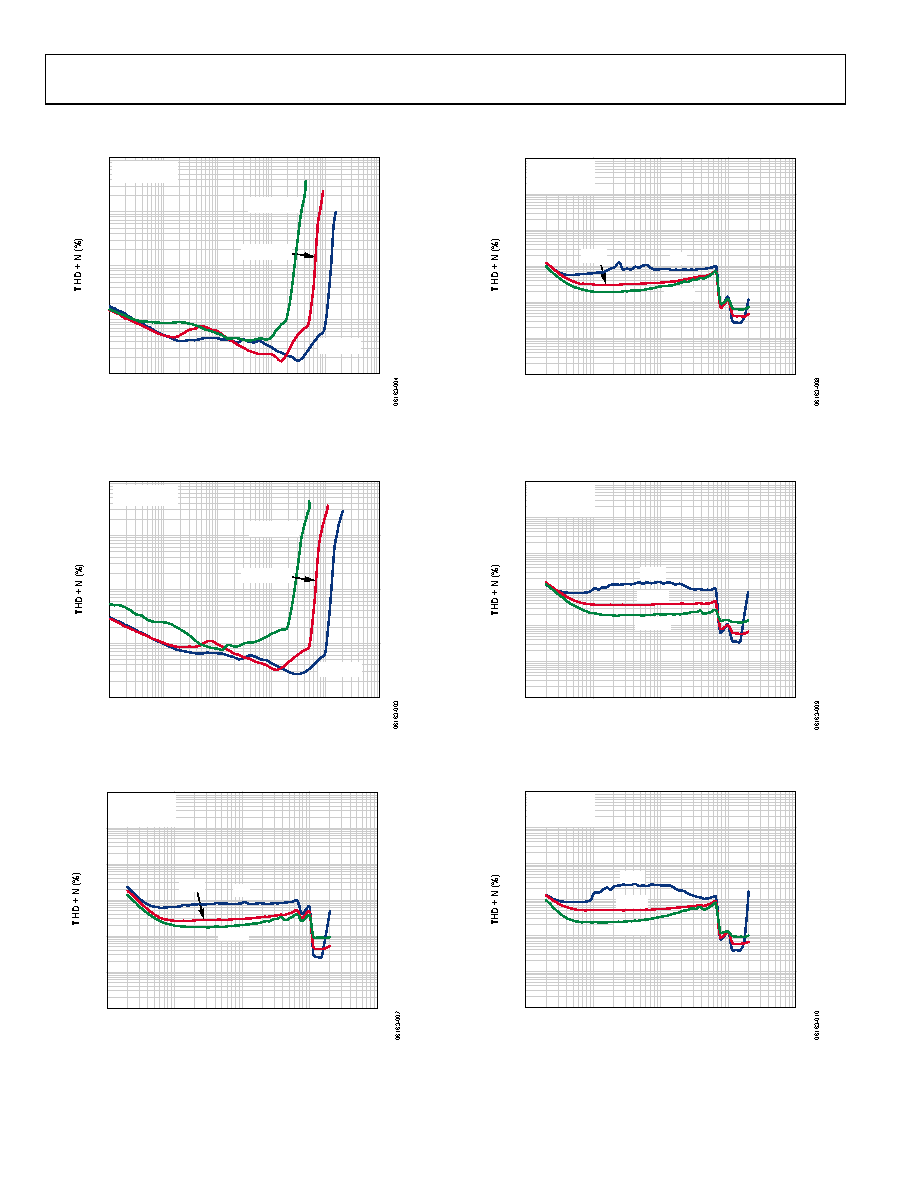

TYPICAL PERFORMANCE CHARACTERISTICS

100

0.01

0.0001

OUTPUT POWER (W)

0.1

0.001

0.01

0.1

RL = 8Ω, 15µH

GAIN = 6dB

VDD = 2.5V

VDD = 3.6V

VDD = 5V

Figure 4. THD + N vs. Output Power into 8 Ω, AV = 6 dB

100

0.01

0.0001

OUTPUT POWER (W)

0.1

0.001

0.01

0.1

RL = 8Ω, 15µH

GAIN = 12dB

VDD = 2.5V

VDD = 3.6V

VDD = 5V

Figure 5. THD + N vs. Output Power into 8 Ω, AV = 12 dB

100

0.0001

100k

FREQUENCY (Hz)

VDD = 5.0V

GAIN = 6dB

RL = 8Ω, 15µH

0.1

0.01

0.001

100

10k

0.5W

0.25W

Figure 6. THD + N vs. Frequency, VDD = 5.0 V, AV = 6 dB, RL = 8 Ω

100

0.0001

100k

FREQUENCY (Hz)

VDD = 5.0V

GAIN = 12dB

RL = 8Ω, 15µH

0.1

0.01

0.001

100

10k

0.5W

0.25W

Figure 7. THD + N vs. Frequency, VDD = 5.0 V, AV = 12 dB, RL = 8 Ω

100

0.0001

100k

FREQUENCY (Hz)

VDD = 3.6V

GAIN = 6dB

RL = 8Ω, 15µH

0.1

0.01

0.001

100

10k

0.25W

0.5W

0.125W

Figure 8. THD + N vs. Frequency, VDD = 3.6 V, AV = 6 dB, RL = 8 Ω

100

0.0001

100k

FREQUENCY (Hz)

VDD = 3.6V

GAIN = 12dB

RL = 8Ω, 15µH

0.1

0.01

0.001

100

10k

0.25W

0.5W

0.125W

Figure 9. THD + N vs. Frequency, VDD = 3.6 V, AV = 12 dB, RL = 8 Ω
