pHAT Module Series
pHAT-RV Technical Description
pHAT-RV Technical Description
Page 10 of 27

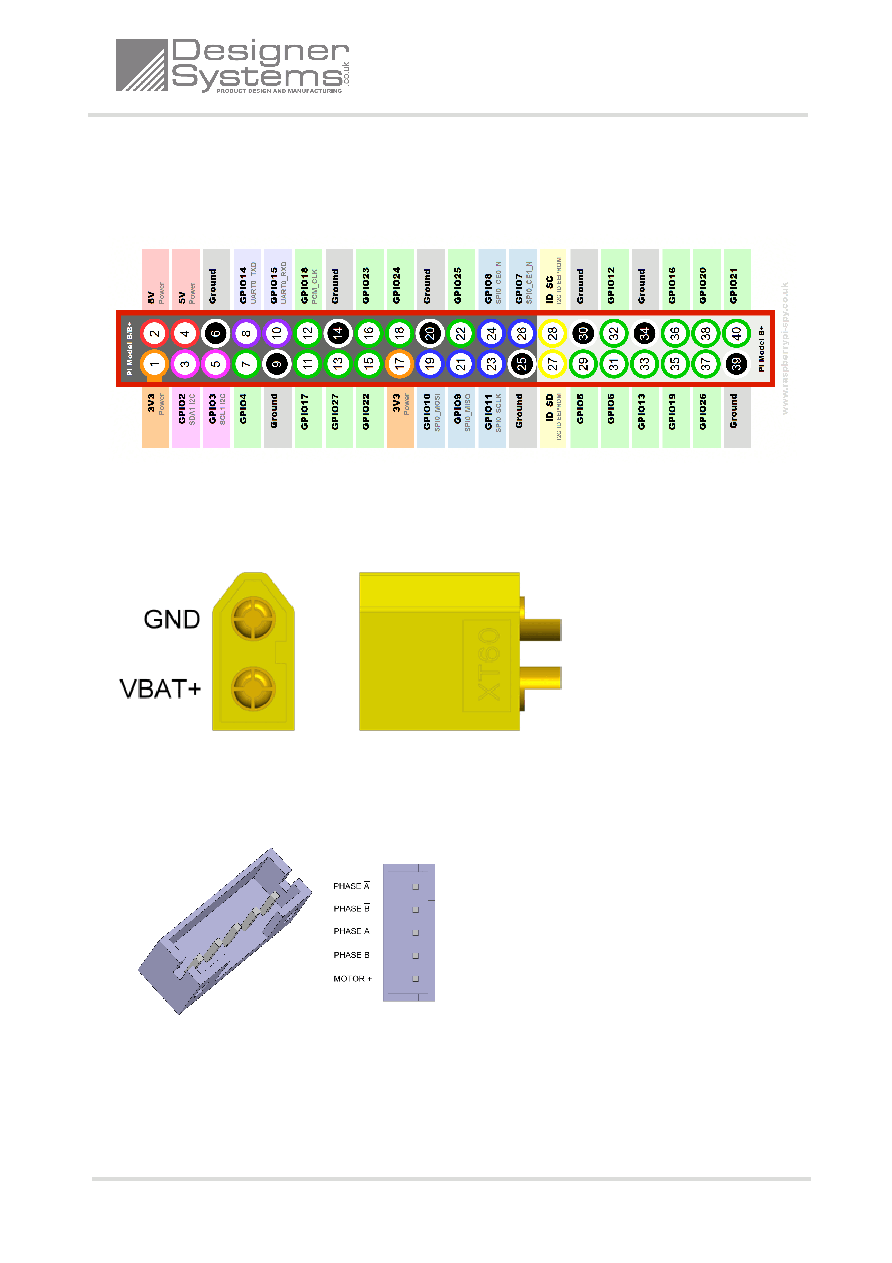

3.5 Pin Assignment
3.5.1 Raspberry-Pi Header
The RV module connects to the Raspberry-Pi 40pin header, pinout as follows:
3.5.2 Lithium Battery Dean XT60 Socket
The Lithium Battery input connector is a Deans XT60 socket, pinout as follows:
3.5.3 Stepper Motor Header
The 4 x Stepper motor headers are 5way JST ZHR 1.5mm pitch, pinout as follows:
