IS25LE512M

IS25WE512M

Integrated Silicon Solution, Inc.- www.issi.com

Rev. A6

06/16/2025

FAST READ OPERATION IN QPI MODE (FRD, 0Bh or 4FRD, 0Ch)

The Fast Read (FRD) instruction in QPI mode is used to read memory data at up to a 133MHz clock.

• 0Bh (EXTADD=0) is followed by a 3-byte address (A23-A0) or

• 0Bh (EXTADD=1) is followed by a 4-byte address (A31-A0) or

• 0Ch is followed by a 4-byte address (A31-A0)

The Fast Read instruction code (2 clocks) is followed by three (6 clocks) or four (8 clocks) address bytes as above

and 6 dummy cycles (configurable, default is 6 clocks), transmitted via the IO3, IO2, IO1 and IO0 lines, with each

bit latched-in during the rising edge of SCK. Then the first data byte addressed is shifted out on the IO3, IO2, IO1

and IO0 lines, with each bit shifted out at a maximum frequency fCT, during the falling edge of SCK.

The first byte addressed can be at any memory location. The address is automatically incremented by one after

each byte of data is shifted out. When the highest address is reached, the address counter will roll over to the

000000h address, allowing the entire memory to be read with a single Fast Read QPI instruction. The Fast Read

QPI instruction is terminated by driving CE# high (VIH).

If the Fast Read instruction in QPI mode is issued while an Erase, Program or Write cycle is in process (WIP=1)

the instruction is ignored without affecting the current cycle.

The Fast Read sequence in QPI mode is also applied to the commands in the following table 8.6. However, only

3-byte address mode QPI sequence is applied for RDUID, and IRRD commands.

Table 8.6 Instructions that Fast Read sequence in QPI Mode is applied to

Instruction Name

Operation

Hex Code

FRQIO

Fast Read Quad I/O

EBh

RDUID

Read Unique ID

4Bh

IRRD

Read Information Row

68h

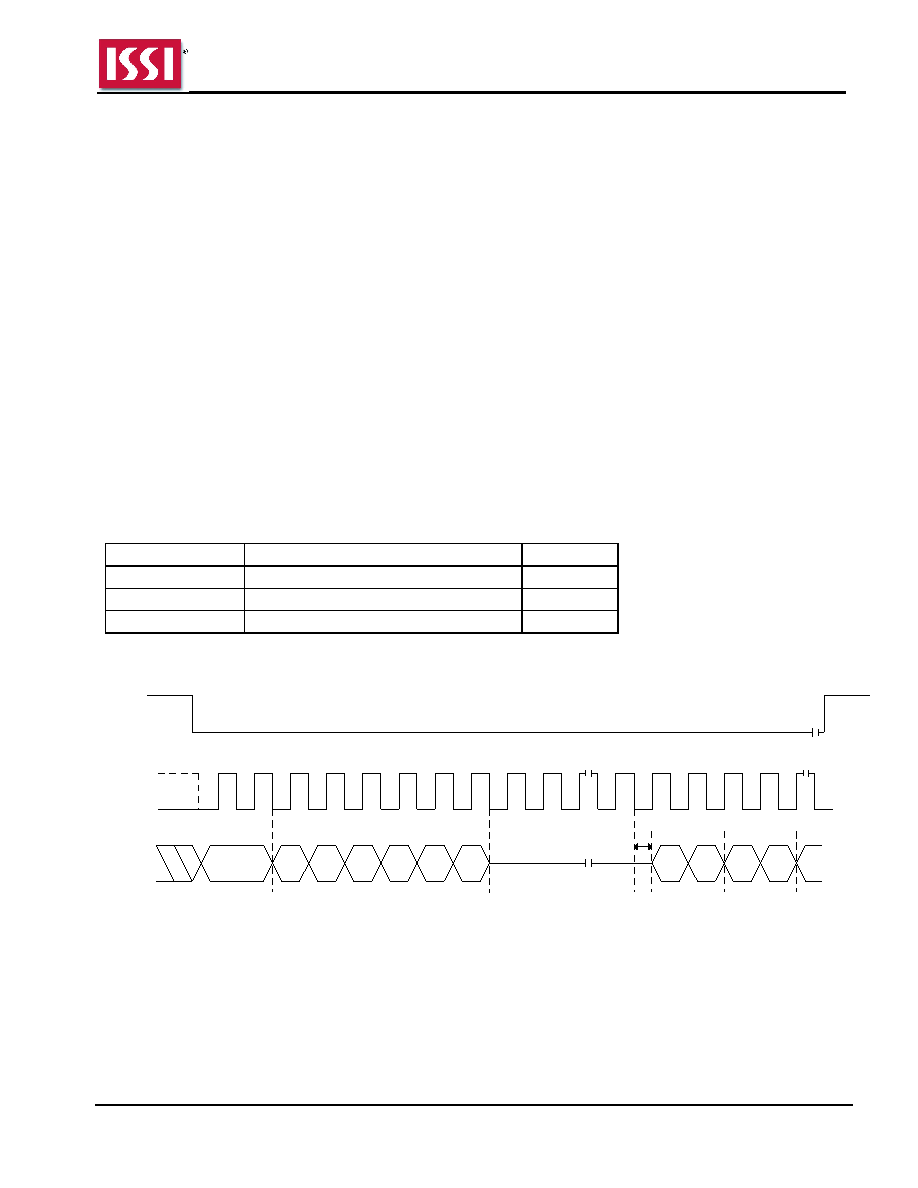

Figure 8.5 Fast Read Sequence In QPI Mode (0Bh [EXTADD=0], 3-byte address)

0Bh

CE#

SCK

IO[3:0]

6 Dummy Cycles

3-byte Address

...

Mode 3

Mode 0

23:20

7:4

3:0

7:4

3:0

Data 1

Data 2

19:16 15:12 11:8

7:4

3:0

...

Instruction

Note: Number of dummy cycles depends on Read Parameter setting. Detailed information in Table 6.11 Read Dummy

Cycles.
