Dual-Band Wi-Fi LTCC RF Diplexer

ADID-R-0015

1.6 x 0.8 x 0.6 mm

RoHS Compliant

Request Samples

Check Inventory

Tape & Reel

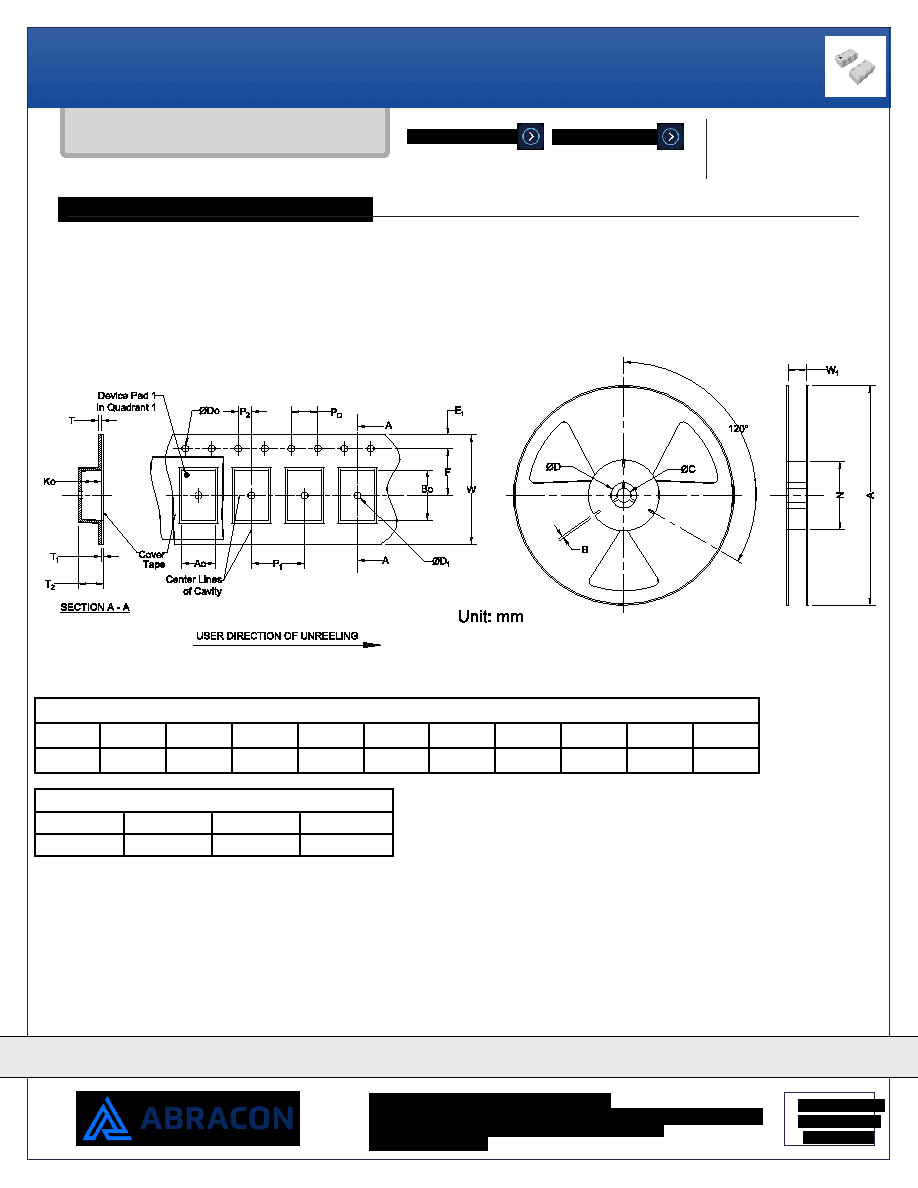

1. Tape & Reel Dimension 1608(0603)

Carrier Tape Specifications (mm)

Do

E1

P0

P2

T

F

P1

W

A0

B0

Reel Qty

1.5±0.1

1.75±0.10

4.00±0.10

2.00±0.05

0.75±0.10

3.50±0.05

4.00±0.10

8.00±0.30

1.0±0.10

1.8±0.10

4,000

Reel Specifications (mm)

A

N

B

C

Φ

±2.0

Φ58.0±2.0

Φ2.45±0.20

Φ 3.5±0.20

Packaging

ATTENTION: Abracon LLC’s products are Commercial-Off-The-Shelf (‘COTS’), which are designed, intended, and validated for use in commercial, industrial, and automotive applications.

The customer is responsible for testing and verifying the performance of an Abracon solution to meet their system-level requirements.
