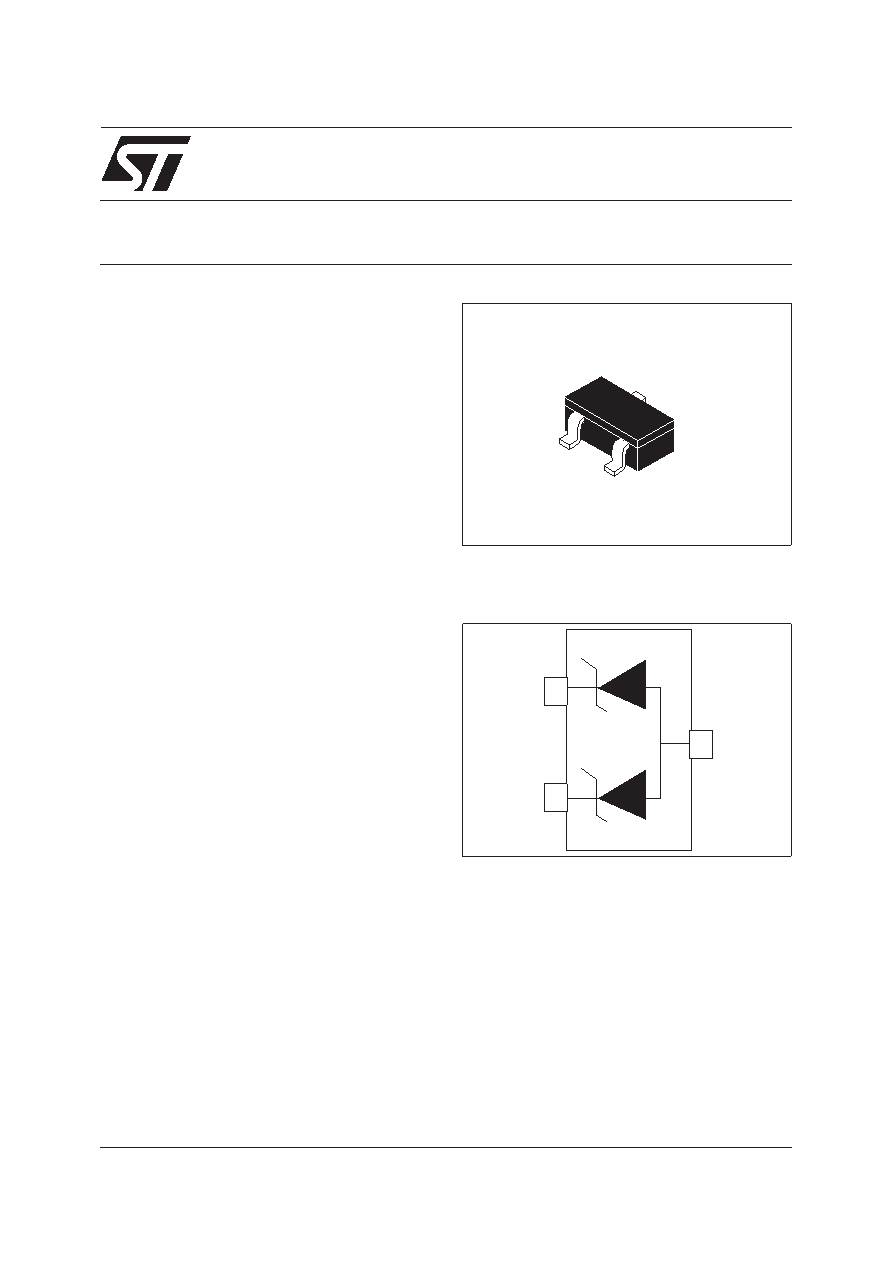

ESDA25W

®

March 2000 - Ed: 1A

QUAL TRANSIL

™ ARRAY

FOR ESD PROTECTION

SOT323-3L

Where transient overvoltage protection in ESD

sensitive equipment is required, such as :

n

Computers

n

Printers

n

Communication systems

n

Cellular phones handsets and accessories

n

Other telephone sets

n

Set top boxes

MAIN APPLICATIONS

Application Specific Discretes

A.S.D.

™

1

2

3

FUNCTIONAL DIAGRAM

n

2 unidirectional TRANSIL

™ functions.

n

Breakdown voltage : VBR = 25V min.

n

Low leakage current:<1

µA.

n

Very low PCB space consuming : 4.2 mm

2 typically.

FEATURES

DESCRIPTION

The ESDA25W is a 2-bit wide monolithic

suppressor designed to protect components

which are connected to data and transmission

lines against ESD.

It clamps the voltage just above the logic level

supply for positive transients, and to a diode drop

below ground for negative transients.

BENEFITS

n

High ESD protection level : up to 25 kV.

n

High integration.

n

Suitable for high density boards.

n

IEC61000-4-2 level 4

n

MIL STD 883C-Method 3015-6 : class 3.

(human body model)

COMPLIES WITH THE FOLLOWING STANDARDS :
