Supported character codes

UTF-8, ASCII, Japanese (Shift-JIS), Chinese (GB2312), Western Europe (ISO 8859-1)

The following data can be acquired via ModbusTCP communication

* The same configuration is also used for EtherNet/IP and

CC-LINK IE FB.

Communication via Ethernet with host devices such as touch panels and PLCs

When using a supported communication protocol

KW2D series

RFID Reader

UID: 123456789

0ABCDEF

Switching hub

Verification - Success

PLC or

controller

External device

- Inverter, motor,

etc.

Employee ID card

IoT

Touch panel

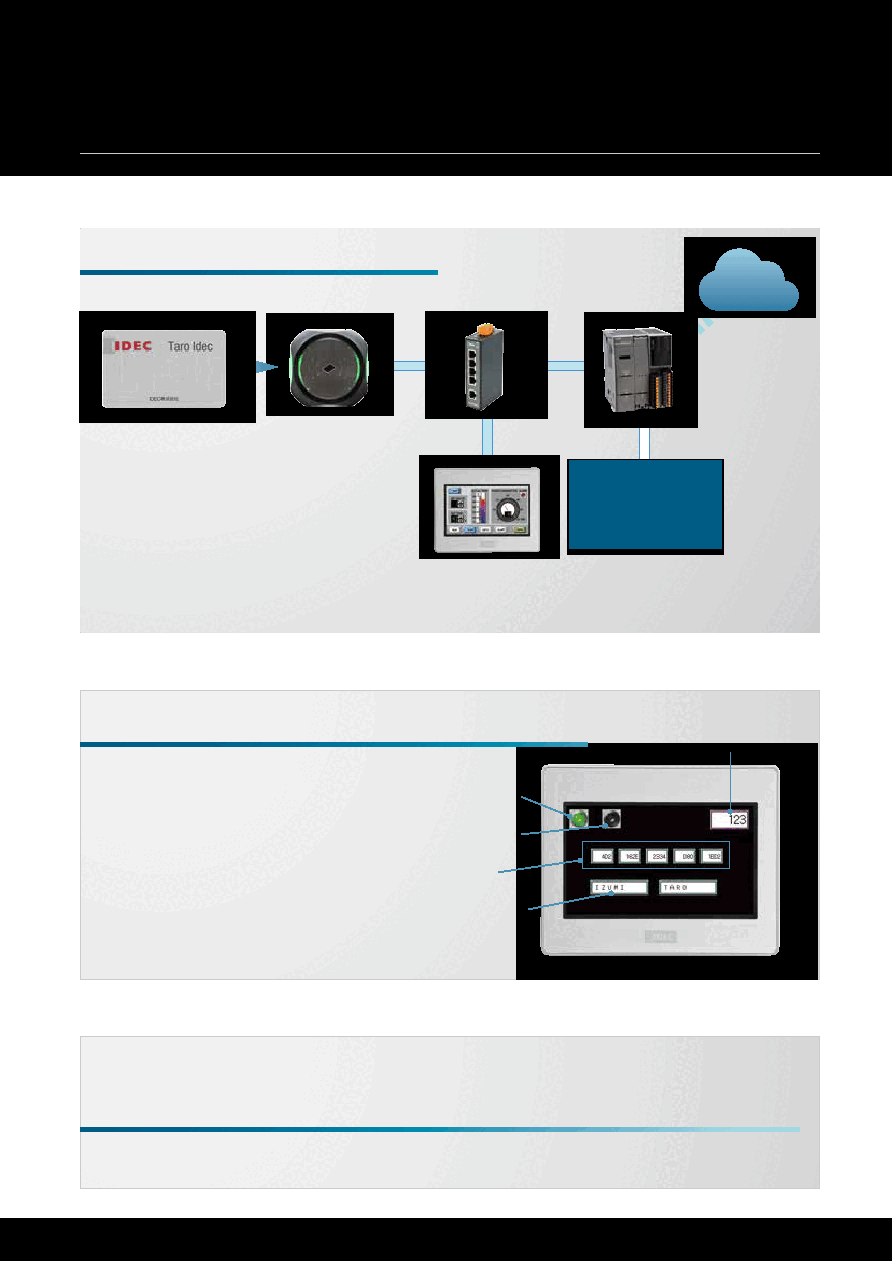

System Configuration Example

KW2D SERIES

• UID

Input register (300004 to 300008)

• Name 1

Input register (300012 to 300020)

• Name 2

Input register (300022 to 300030)

• Authority level

Input register (300002)

• Verification success

Input relay (100001)

• Verification error

Input relay (100002)

Next, simply enter the required data via the touch panel or PLC.

Verification success

Verification error

UID

Name 1, 2

Authority level
