E39-R3 datasheet(60/64 Pages) OMRON

60 / 64 page

E3X

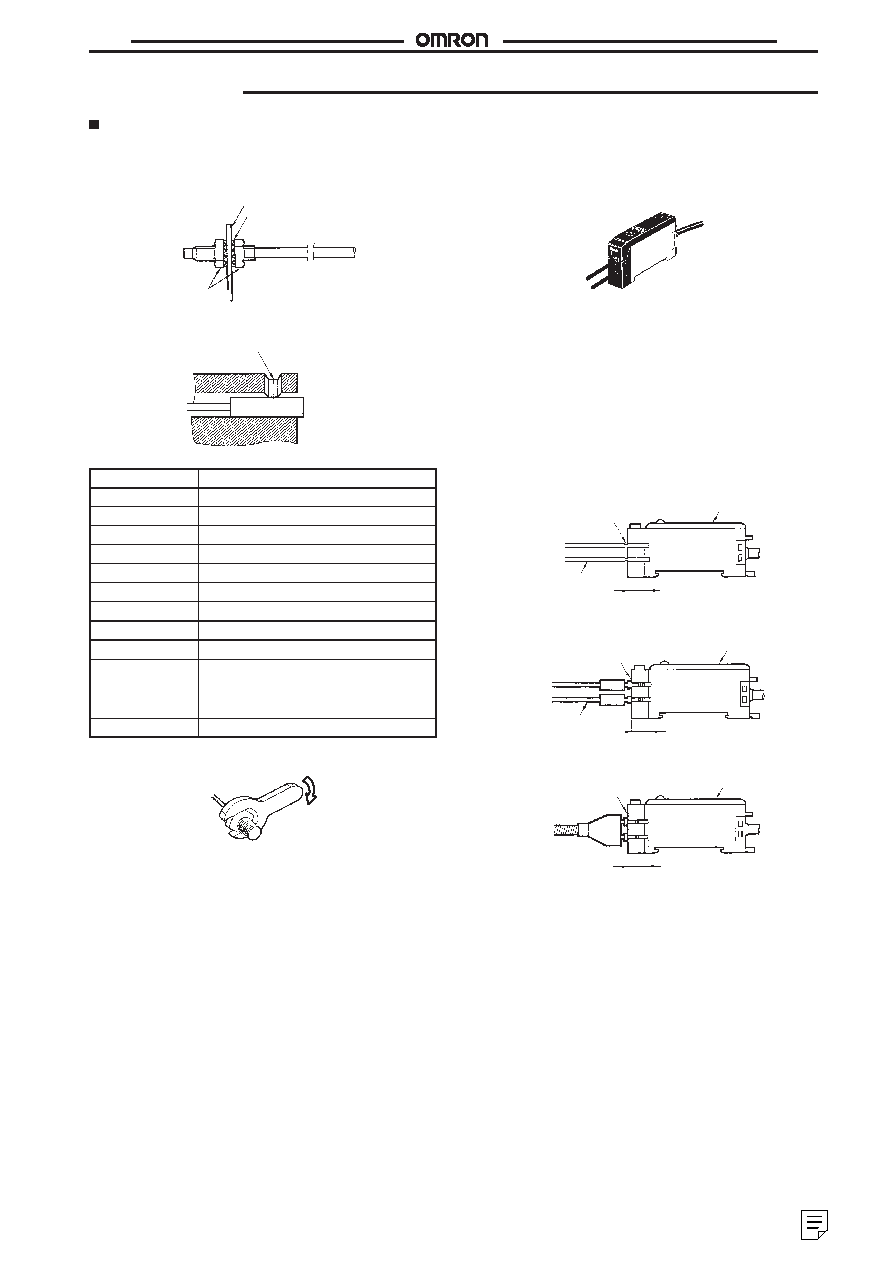

Precautions

Fiber Units

Tightening Force

The tightening force applied to the Fiber Unit should be as follows:

Screw-mounting Model

Column Model

Spring mounting clip

Toothed washers

Nuts

(attachment)

Retaining screw

(M 3 max.)

Clamping torque

3 kgf

S cm max.

Fiber units

Clamping torque

M3/M4 screw

8 kgf

S cm max. (0.78 N S m)

M6 screw

10 kgf

S cm max. (0.98 N S m)

2-mm dia. column

3 kgf

S cm max. (0.29 N S m)

3-mm dia. column

3 kgf

S cm max. (0.29 N S m)

E32-D14L

10 kgf

S cm max. (0.98 N S m)

E32-T12F

8 kgf

S cm max. (0.78 N S m)

E32-D12F

8 kgf

S cm max. (0.78 N S m)

E32-T16

5 kgf

S cm max. (0.49 N S m)

E32-R21

6 kgf

S cm max. (0.59 N S m)

E32-M21

Up to 5 mm to the tip: 5 kgf

S cm max.

(0.49 N

S m)

Up to 5 mm from the tip: 8 kgf

S cm max.

(0.78 N

S m)

E32-L25A

8 kgf

S cm max. (0.78 N S m)

Use a proper-sized wrench.

Fiber Connection and Disconnection

The E3X Amplifier has a push lock. Connect or disconnect the fibers

to or from the E3X Amplifier using the following procedures:

1. Connection

Insert the fibers into the E3X Amplifier and press the push lock until

the Amplifier clicks to lock the fibers. The fibers will have insertion

marks when they are cut with the E39-F4 (Fiber Cutter). The portion

from the tips to the insertion mark should be inserted to the E3X.

2. Disconnection

Be sure to press the push lock again to unlock before pulling out the

fiber, otherwise the fiber may be deteriorated.

Fiber Insertion

If the portion from the tip to the insertion mark of the fibers are not

inserted into the Amplifier Unit, the sensing distance will be re-

duced.

2.2-mm dia. Fiber

Thin Fiber with the E39-F4 Attachment

Fiber with Fixed Length

Amplifier

Fiber unit

12.6 mm

Insertion mark

Amplifier

Fiber unit

Amplifier

12.6 mm

The portion from the

tips to the insertion

mark should be in-

serted into the E3X.

The portion from the

tips to the insertion

mark should be in-

serted into the E3X.
