STTH8S06

Package information

5/8

2

Package information

●

Epoxy meets UL94, V0

●

Cooling method: by conduction (C)

●

Recommended torque value: 0.4 to 0.6 N·m

In order to meet environmental requirements, ST (also) offers these devices in ECOPACK®

packages. ECOPACK® packages are Lead-free. The category of second level Interconnect

is marked on the package and on the inner box label, in compliance with JEDEC Standard

JESD97. The maximum ratings related to soldering conditions are also marked on the inner

box label.

ECOPACK is an ST trademark. ECOPACK specifications are available at: www.st.com.

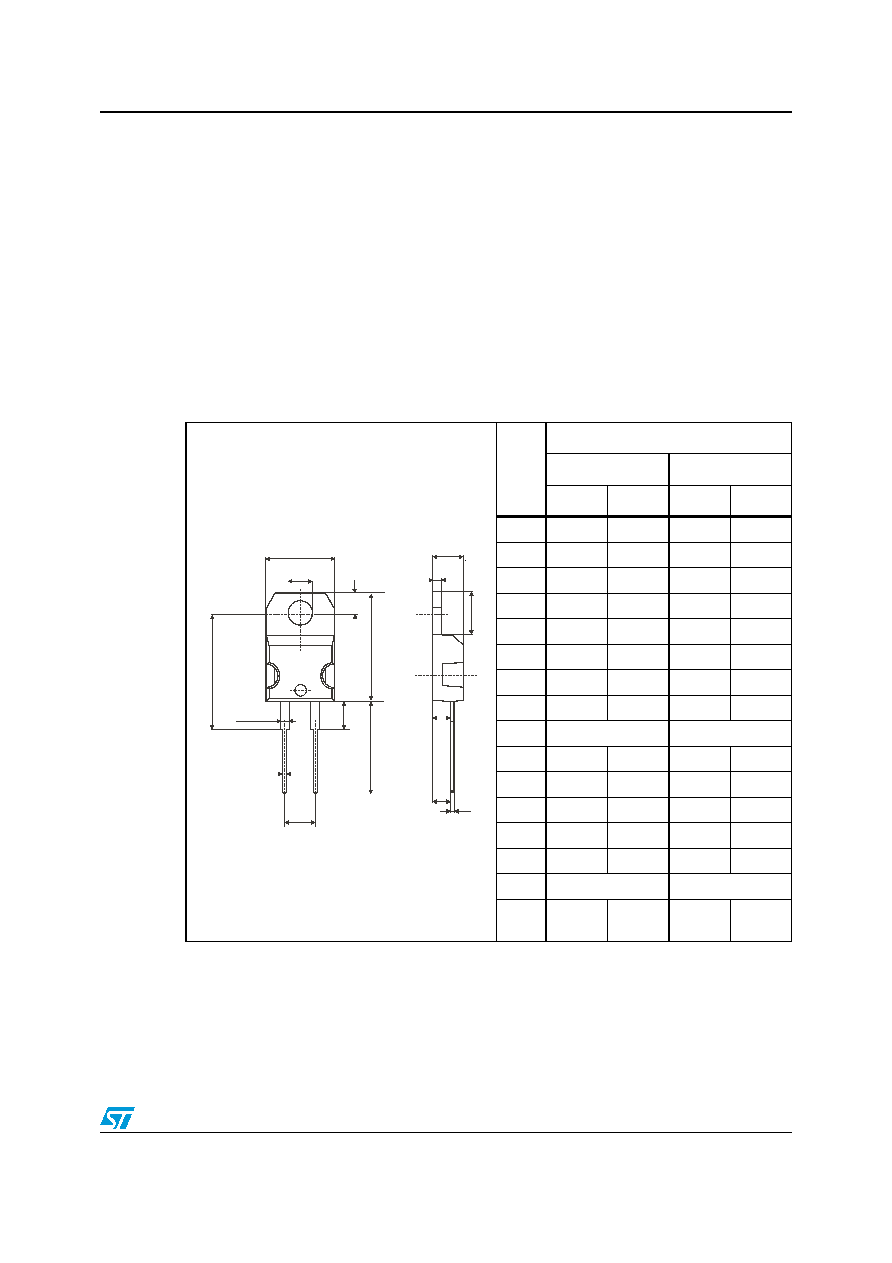

Table 6.

TO-220AC dimensions

Ref.

Dimensions

Millimeters

Inches

Min.

Max.

Min.

Max.

A

4.40

4.60

0.173

0.181

C

1.23

1.32

0.048

0.051

D

2.40

2.72

0.094

0.107

E

0.49

0.70

0.019

0.027

F

0.61

0.88

0.024

0.034

F1

1.14

1.70

0.044

0.066

G

4.95

5.15

0.194

0.202

H2

10.00

10.40

0.393

0.409

L2

16.40 typ.

0.645 typ.

L4

13.00

14.00

0.511

0.551

L5

2.65

2.95

0.104

0.116

L6

15.25

15.75

0.600

0.620

L7

6.20

6.60

0.244

0.259

L9

3.50

3.93

0.137

0.154

M

2.6 typ.

0.102 typ.

Diam.

I

3.75

3.85

0.147

0.151

A

C

D

L7

Ø I

L5

L6

L9

L4

F

H2

G

L2

F1

E

M
