KMXP

LINEAR POSITION SENSOR

SENSOR SOLUTIONS /// KMXP Linear Position Sensor

05/2018

Page 2

MEASUREMENT PRINCIPLE

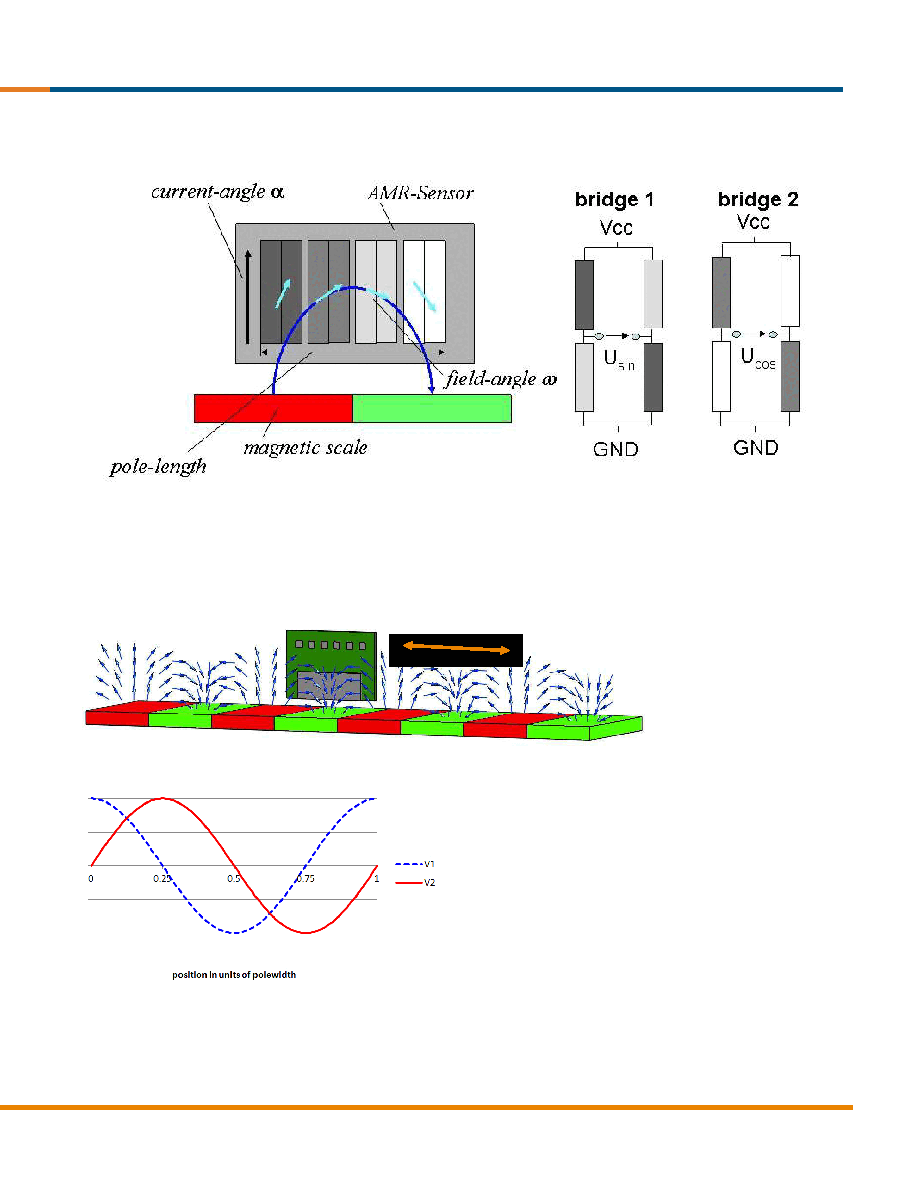

Figure 1: principle function of the sensor

The KMXP sensors consist of two magneto resistive Wheatstone bridges, whose resistors are placed in a such way

that the characteristic magnetic field distribution of a magnetic scale with matching pole pitch produces a sine and

a cosine signal output when the sensor is moved along the scale.

Figure 2: typical application of a PCB mounted KMXP sensor moving relative to a magnetic pole and the corresponding output

signal voltage depending on sensor position
