74VHC32

QUAD 2-INPUT OR GATE

PRELIMINARY DATA

®

June 1999

s

HIGH SPEED: tPD = 3.8 ns (TYP.) at VCC =5V

s

LOW POWER DISSIPATION:

ICC =2

µA (MAX.) at TA =25 oC

s

HIGH NOISE IMMUNITY:

VNIH =VNIL =28% VCC (MIN.)

s

POWER DOWN PROTECTION ON INPUTS

s

SYMMETRICAL OUTPUT IMPEDANCE:

|IOH|=IOL = 8 mA (MIN)

s

BALANCED PROPAGATION DELAYS:

tPLH

≅ tPHL

s

OPERATING VOLTAGE RANGE:

VCC (OPR) = 2V to 5.5V

s

PIN AND FUNCTION COMPATIBLE WITH

74 SERIES 32

s

IMPROVED LATCH-UP IMMUNITY

s

LOW NOISE: VOLP = 0.8V (Max.)

DESCRIPTION

The 74VHC32 is an advanced high-speed CMOS

QUAD 2-INPUT OR GATE fabricated with

sub-micron silicon gate and double-layer metal

wiring C

2MOS technology.

The internal circuit is composed of 2 stages

including buffer output, which provide high noise

immunity and stable output.

Power down protection is provided on all inputs

and 0 to 7V can be accepted on inputs with no

regard to the supply voltage. This device can be

used to interface 5V to 3V.

All inputs

and

outputs are

equipped with

protection circuits against static discharge, giving

them 2KV ESD immunity and transient excess

voltage.

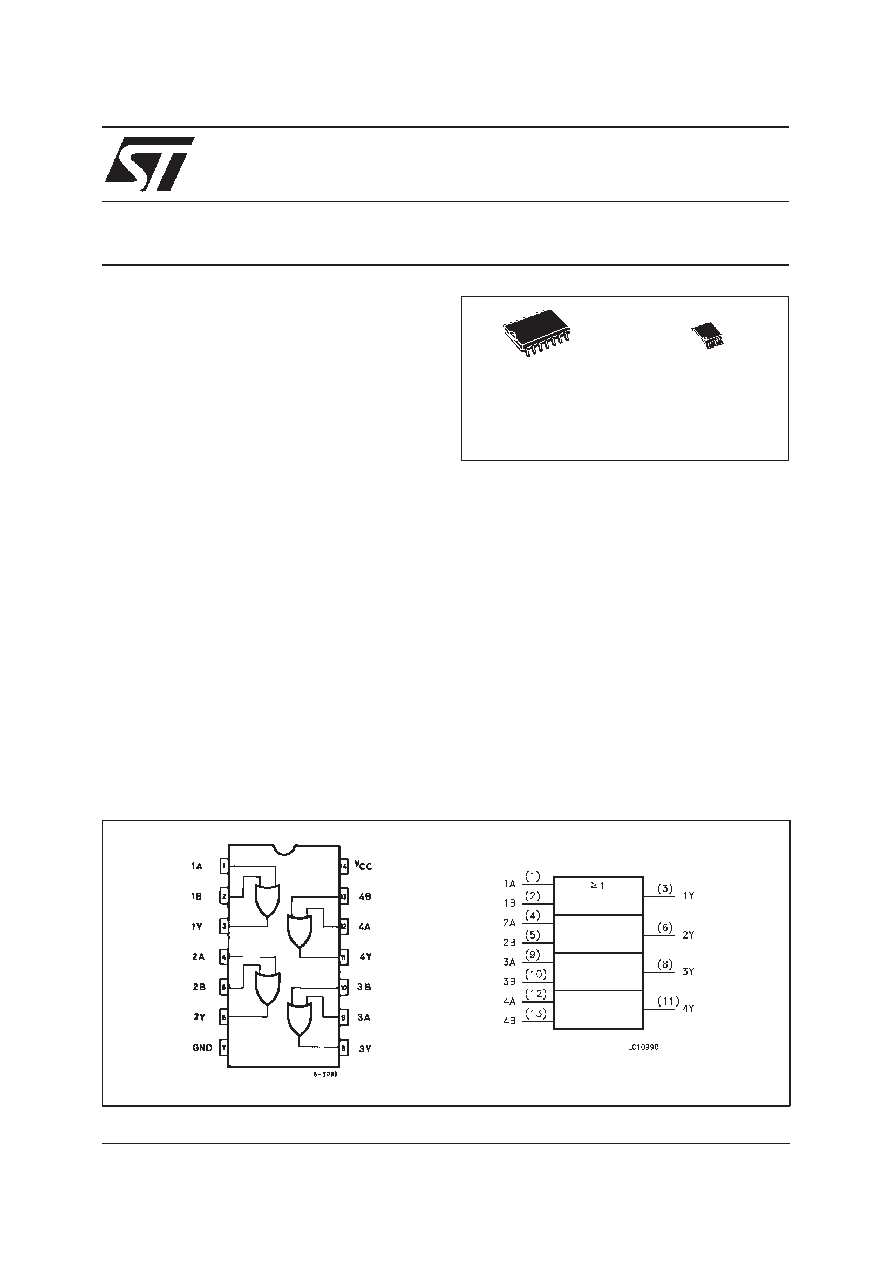

PIN CONNECTION AND IEC LOGIC SYMBOLS

ORDER CODES :

74VHC32M

74VHC32T

M

(Micro Package)

T

(TSSOP Package)

1/7
