STEVAL-ROBKIT1 bảng dữ liệu(PDF) 20 Page - STMicroelectronics

tên linh kiện STEVAL-ROBKIT1
Giải thích chi tiết về linh kiện  Evaluation kit for Robotics applications
PDF  26 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
nhà sản xuất  STMICROELECTRONICS [STMicroelectronics]
Trang chủ  http://www.st.com
Logo STMICROELECTRONICS - STMicroelectronics

STEVAL-ROBKIT1 bảng dữ liệu(HTML) 20 Page - STMicroelectronics

Back Button STEVAL-ROBKIT1 Datasheet HTML 16Page - STMicroelectronics STEVAL-ROBKIT1 Datasheet HTML 17Page - STMicroelectronics STEVAL-ROBKIT1 Datasheet HTML 18Page - STMicroelectronics STEVAL-ROBKIT1 Datasheet HTML 19Page - STMicroelectronics STEVAL-ROBKIT1 Datasheet HTML 20Page - STMicroelectronics STEVAL-ROBKIT1 Datasheet HTML 21Page - STMicroelectronics STEVAL-ROBKIT1 Datasheet HTML 22Page - STMicroelectronics STEVAL-ROBKIT1 Datasheet HTML 23Page - STMicroelectronics STEVAL-ROBKIT1 Datasheet HTML 24Page - STMicroelectronics Next Button
Zoom Inzoom in Zoom Outzoom out
 20 / 26 page
background image

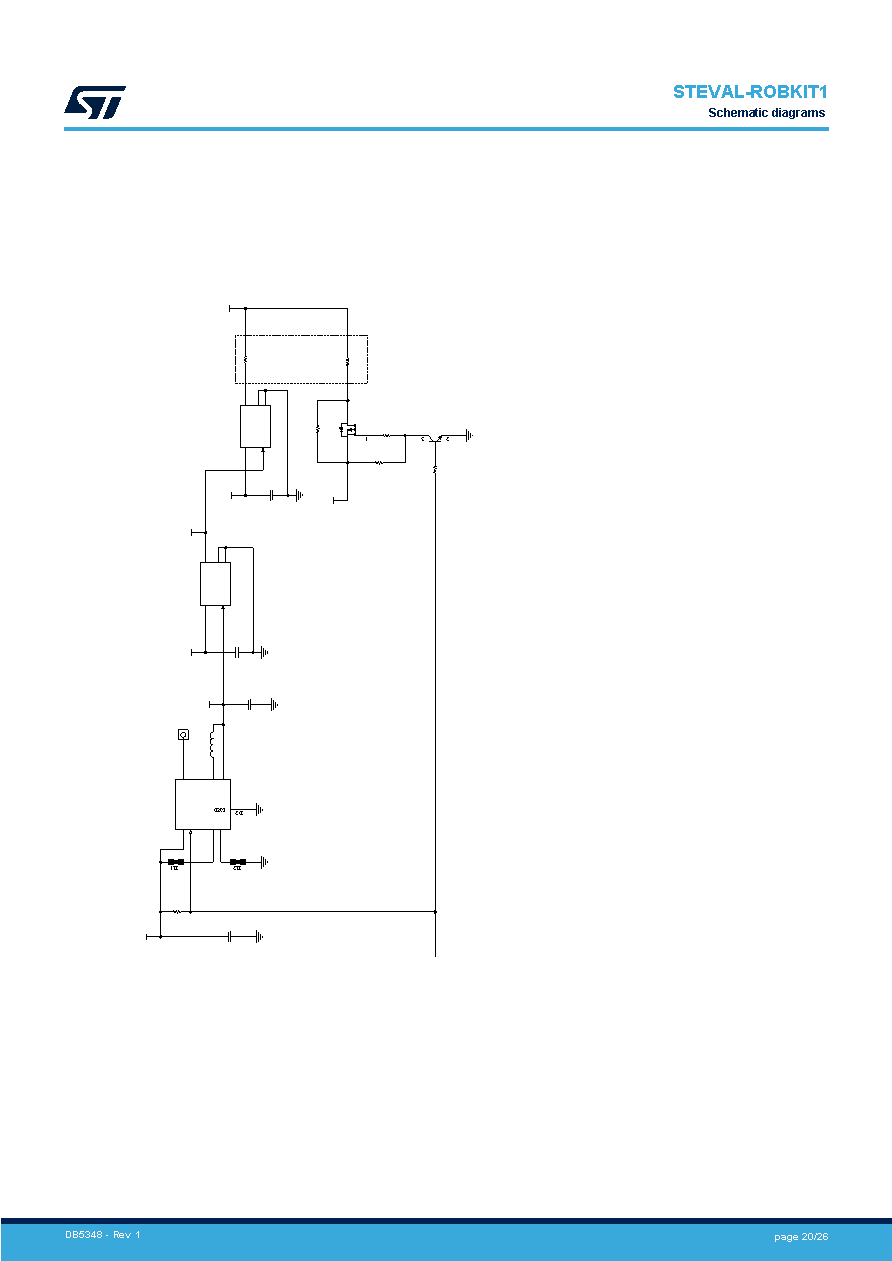

Figure 18. STEVAL-ROBKIT1-3 schematic (1 of 3)
Power
GND
GND
PWR_EN
P3V3
6.3V
C1
10uF
6.3V
C3
10uF
10V
C2
4.7uF
GND
P3V3
VANA
GND
VCORE
1V2
2V8
PWGOOD
E1
SW
C3
VIN
A3
EN
B2
D1
A1
D0
C1
VOUT
E3
U1
ST1PS01BJR
GND
L1 3.3 uH
TP1
Cu
R1
10k
P1V8
VDDIO
2
3
Q1
FDN5618P/NM
R6
0R/NM
1%
R5
1k/NM
1%
R13
1k/NM
1
Q2
BC847ALT1G/NM
GND
10V
C4
4.7uF
GND
P3V3
1V8
Jumper
R17
0R
Jumper
R21
0RNM
Exclusive Fitting
Jumper
R22
0RNM
VIN
4
VOUT
1
GND
2
EN
3
TH_PAD
5
U3
LD39020ADTPU18R
VIN
4
VOUT
1
GND
2
EN
3
TH_PAD
5
U2
LD39020ADTPU28R
STMicroelectronics and/or its licensors do not warrant the
accuracy or completeness of this specification or any
information
contained therein. STMicroelectronics and/or
its
licensors do not warrant that this design will meet the
specifications, will be suitable for
your application or
fit
for any particular purpose, or will operate in an
implementation. STMicroelectronics and/or its licensors do
not
warrant that the design is production worthy. You
should
completely
validate and test your design implementation to
confirm the system functionality for your application.
