HIGH SPEED:

fMAX = 250MHz (TYP.) at VCC = 5V

s

LOW POWER DISSIPATION:

ICC = 4µA(MAX.) at TA=25°C

s

COMPATIBLE WITH TTL OUTPUTS

VIH = 2V (MIN.), VIL = 0.8V (MAX.)

s

50

Ω TRANSMISSION LINE DRIVING

CAPABILITY

s

SYMMETRICAL OUTPUT IMPEDANCE:

|IOH| = IOL = 24mA (MIN)

s

BALANCED PROPAGATION DELAYS:

tPLH ≅ tPHL

s

OPERATING VOLTAGE RANGE:

VCC (OPR) = 4.5V to 5.5V

s

PIN AND FUNCTION COMPATIBLE WITH

74 SERIES 74

s

IMPROVED LATCH-UP IMMUNITY

DESCRIPTION

The 74ACT74 is an advanced high-speed CMOS

DUAL D-TYPE FLIP FLOP WITH PRESET AND

CLEAR fabricated with sub-micron silicon gate

and double-layer metal wiring C2MOS tecnology.

A signal on the D INPUT is transferred to the Q

and Q OUTPUTS during the positive going

transition of the clock pulse.

CLEAR and PRESET are independent of the

clock and accomplished by a low setting on the

appropriate input.

The device is designed to interface directly High

Speed CMOS systems with TTL, NMOS and

CMOS output voltage levels.

All

inputs

and

outputs

are

equipped

with

protection circuits against static discharge, giving

them 2KV ESD immunity and transient excess

voltage.

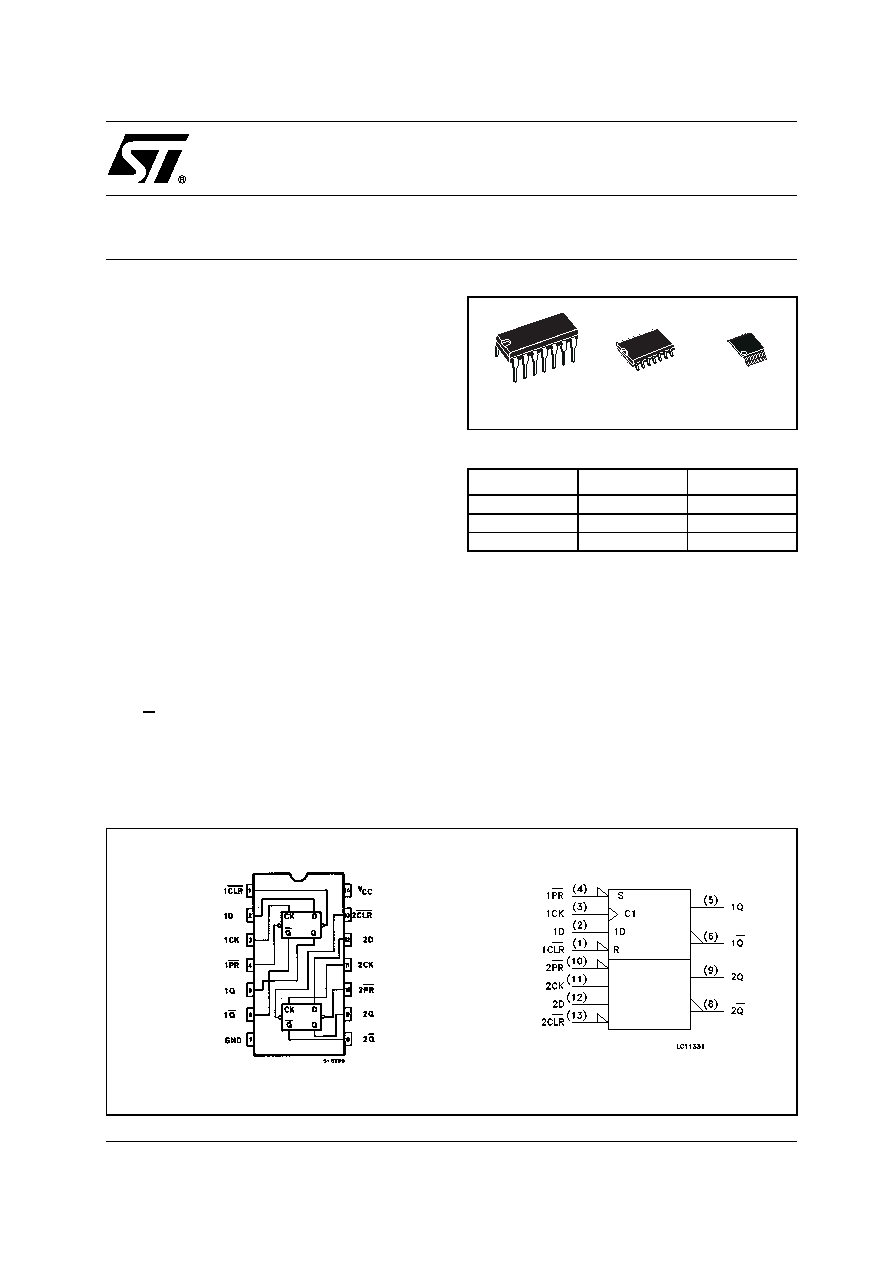

74ACT74

DUAL D-TYPE FLIP FLOP WITH PRESET AND CLEAR

PIN CONNECTION AND IEC LOGIC SYMBOLS

ORDER CODES

PACKAGE

TUBE

T & R

DIP

74ACT74B

SOP

74ACT74M

74ACT74MTR

TSSOP

74ACT74TTR

TSSOP

DIP

SOP
