74ACT04

HEX INVERTER

April 1997

s

HIGH SPEED: tPD = 4.5 ns (TYP.) at VCC = 3.3V

s

LOW POWER DISSIPATION:

ICC =4

µA (MAX.) at TA =25 oC

s

COMPATIBLE WITH TTL OUTPUTS

VIH =2V (MIN), VIL = 0.8V (MAX)

s

50

Ω TRANSMISSION LINE DRIVING

CAPABILITY

s

SYMMETRICAL OUTPUT IMPEDANCE:

|IOH|= IOL =24 mA (MIN)

s

BALANCED PROPAGATION DELAYS:

tPLH

≅ tPHL

s

OPERATING VOLTAGE RANGE:

VCC (OPR) = 4.5V to 5.5V

s

PIN AND FUNCTION COMPATIBLE WITH

74 SERIES 04

s

IMPROVED LATCH-UP IMMUNITY

DESCRIPTION

The ACT04 is an advanced high-speed CMOS

HEX INVERTER

fabricated with sub-micron

silicon gate and double-layer metal wiring C

2MOS

technology. It is ideal for low power applications

mantaining high speed operation similar to

equivalent Bipolar Schottky TTL.

The internal circuit is composed of 3 stages

including buffer output, which enables high noise

immunity and stabe output.

The device is designed to interface directly High

Speed CMOS systems with TTL, NMOS and

CMOS output voltage levels.

All

inputs and

outputs

are

equipped with

protection circuits against static discharge, giving

them 2KV ESD immunity and transient excess

voltage.

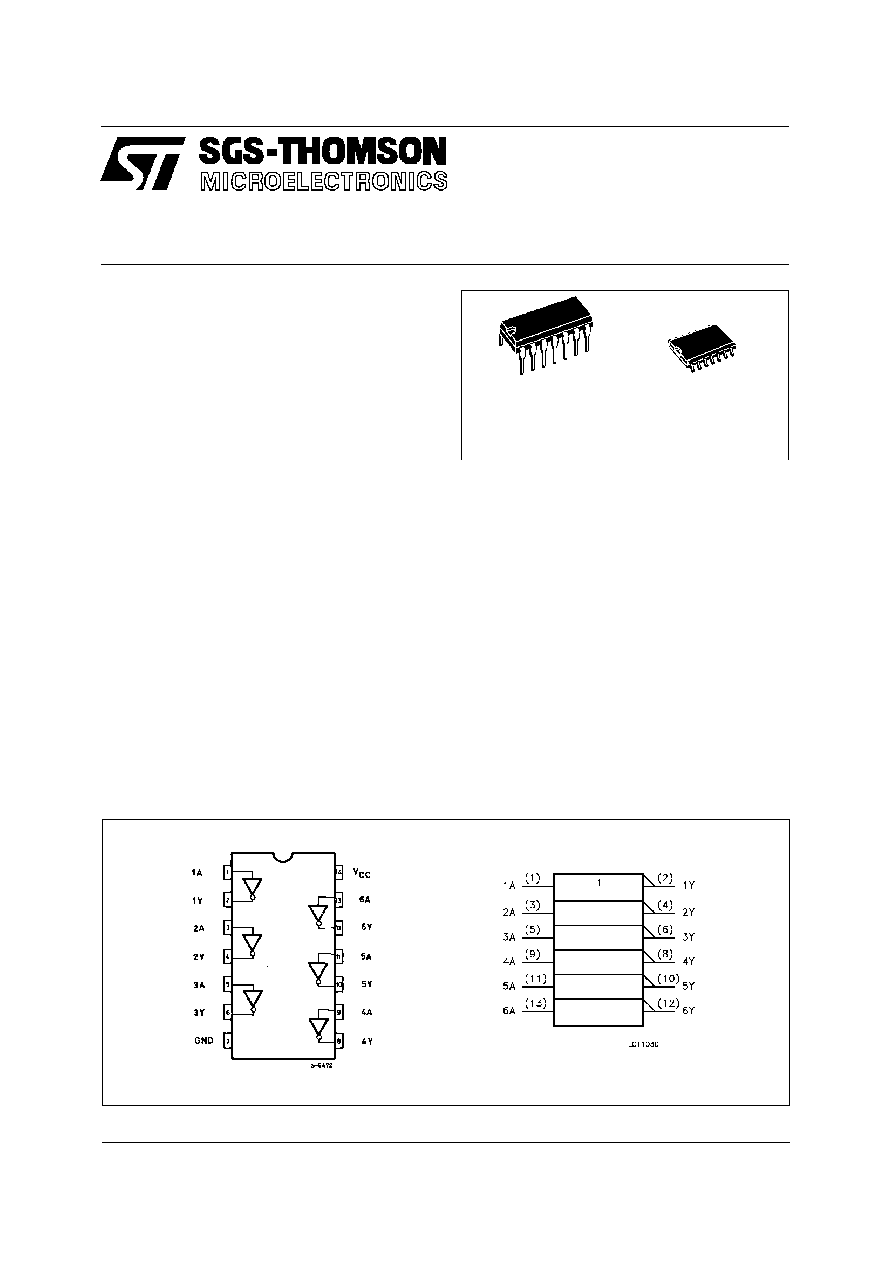

PIN CONNECTION AND IEC LOGIC SYMBOLS

ORDER CODES :

74ACT04B

74ACT04M

M

(Micro Package)

B

(Plastic Package)

1/7
