FT600Q-FT601Q IC DatasheetDatasheet
Version 1.04
Document No.: FT_001118
Clearance No.: FTDI#424

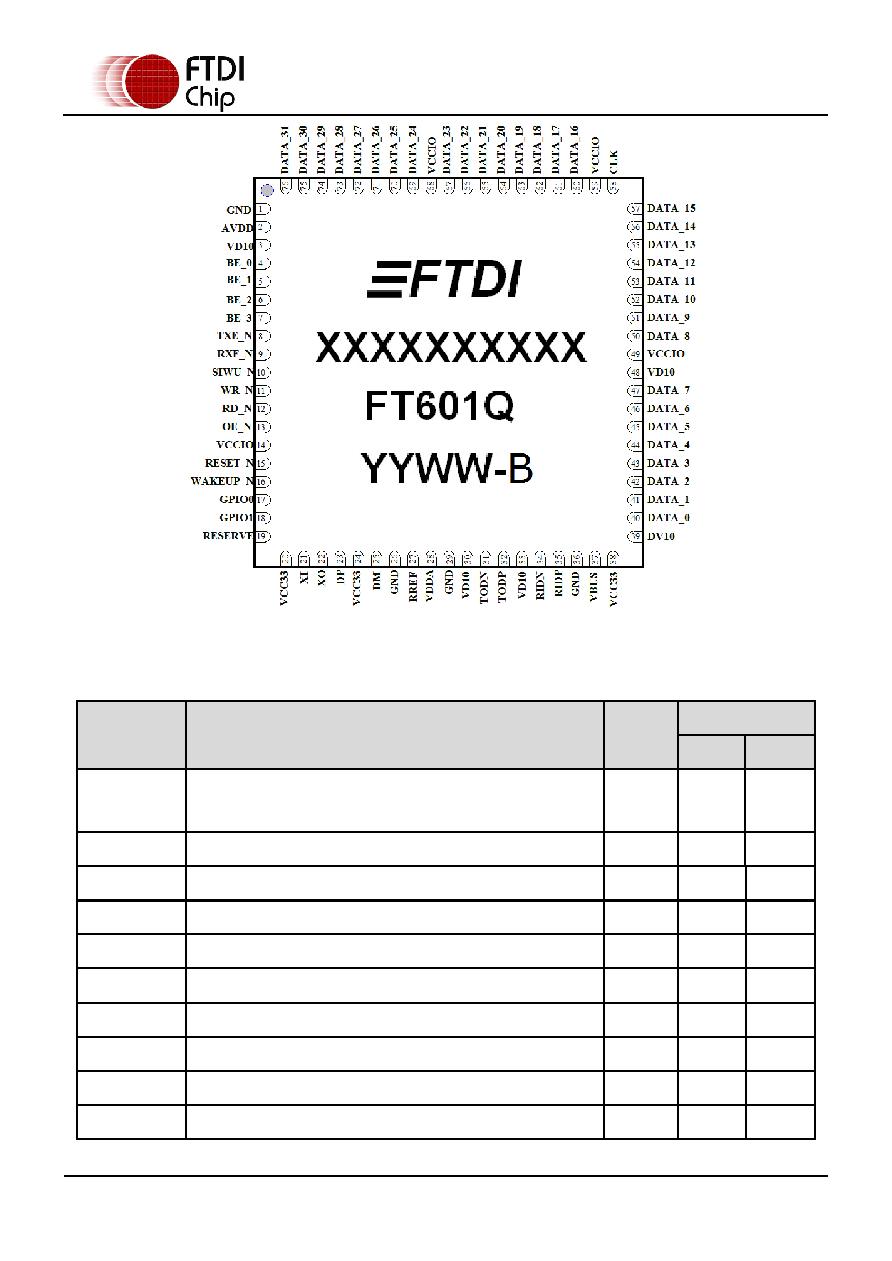

Figure 3.2 QFN76 Package Pin Out
3.2
Device Pin Out Signal Description
Pin Name
Description
Type
Pin No.
QFN76
QFN56
CLK
Parallel FIFO bus clock output pin to FIFO bus master, the
Frequency can be configured as 66Mhz or 100Mhz for both FIFO
bus modes.
O
58
43
DATA_0
Parallel FIFO bus data I/O bit 0.
I/O
40
33
DATA_1
Parallel FIFO bus data I/O bit 1.
I/O
41
34
DATA_2
Parallel FIFO bus data I/O bit 2.
I/O
42
35
DATA_3
Parallel FIFO bus data I/O bit 3.
I/O
43
36
DATA_4
Parallel FIFO bus data I/O bit 4.
I/O
44
39
DATA_5
Parallel FIFO bus data I/O bit 5.
I/O
45
40
DATA_6
Parallel FIFO bus data I/O bit 6.
I/O
46
41
DATA_7
Parallel FIFO bus data I/O bit 7.
I/O
47
42
DATA_8
Parallel FIFO bus data I/O bit 8.
I/O
50
45
