Data Sheet

ADPL40502

analog.com

Rev. 0

8 of 17

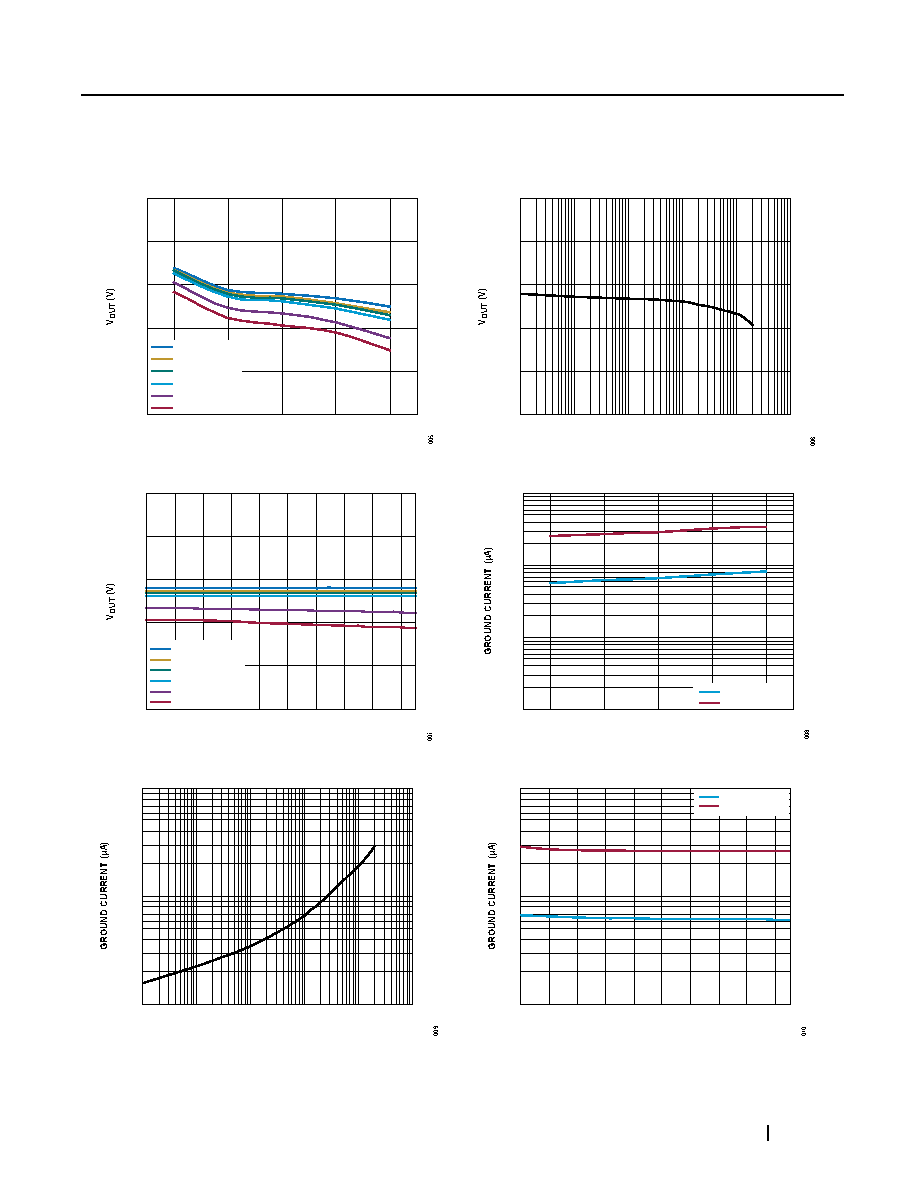

TYPICAL PERFORMANCE CHARACTERISTICS

VIN = 5V, VOUT = 3.3V, IOUT = 1mA, CIN = COUT = 1µF, and TA = 25°C, unless otherwise noted.

Figure 5. Output Voltage (VOUT) vs. Junction Temperature

(TJ)

Figure 6. Output Voltage (VOUT) vs. Load Current (ILOAD)

Figure 7. Output Voltage (VOUT) vs. Input Voltage (VIN)

Figure 8. Ground Current (IGND) vs. Junction

Temperature (TJ)

Figure 9. Ground Current (IGND) vs. Load Current (ILOAD)

Figure 10. Ground Current (IGND) vs. Input Voltage (VIN)

3.35

3.25

3.27

3.29

3.31

3.33

–40

–5

125

JUNCTION TEMPERATURE (°C)

LOAD = 10µA

LOAD = 100µA

LOAD = 1mA

LOAD = 10mA

LOAD = 100mA

LOAD = 200mA

3.35

3.25

3.27

3.29

3.31

3.33

0.01

1000

100

0.1

ILOAD (mA)

3.35

3.25

3.27

3.29

3.31

3.33

3.6

3.8

4.0

4.2

4.4

4.6

4.8

5.0

5.2

5.4

VIN (V)

LOAD = 10µA

LOAD = 100µA

LOAD = 1mA

LOAD = 10mA

LOAD = 100mA

LOAD = 200mA

100

–40

–5

125

JUNCTION TEMPERATURE (°C)

LOAD = 10mA

LOAD = 200mA

100

0.01

1000

100

0.1

ILOAD (mA)

VIN (V)

100

3.6

3.8

4.0

4.2

4.4

4.6

4.8

5.0

5.2

5.4

LOAD = 10mA

LOAD = 200mA
