H2C

H2C

7

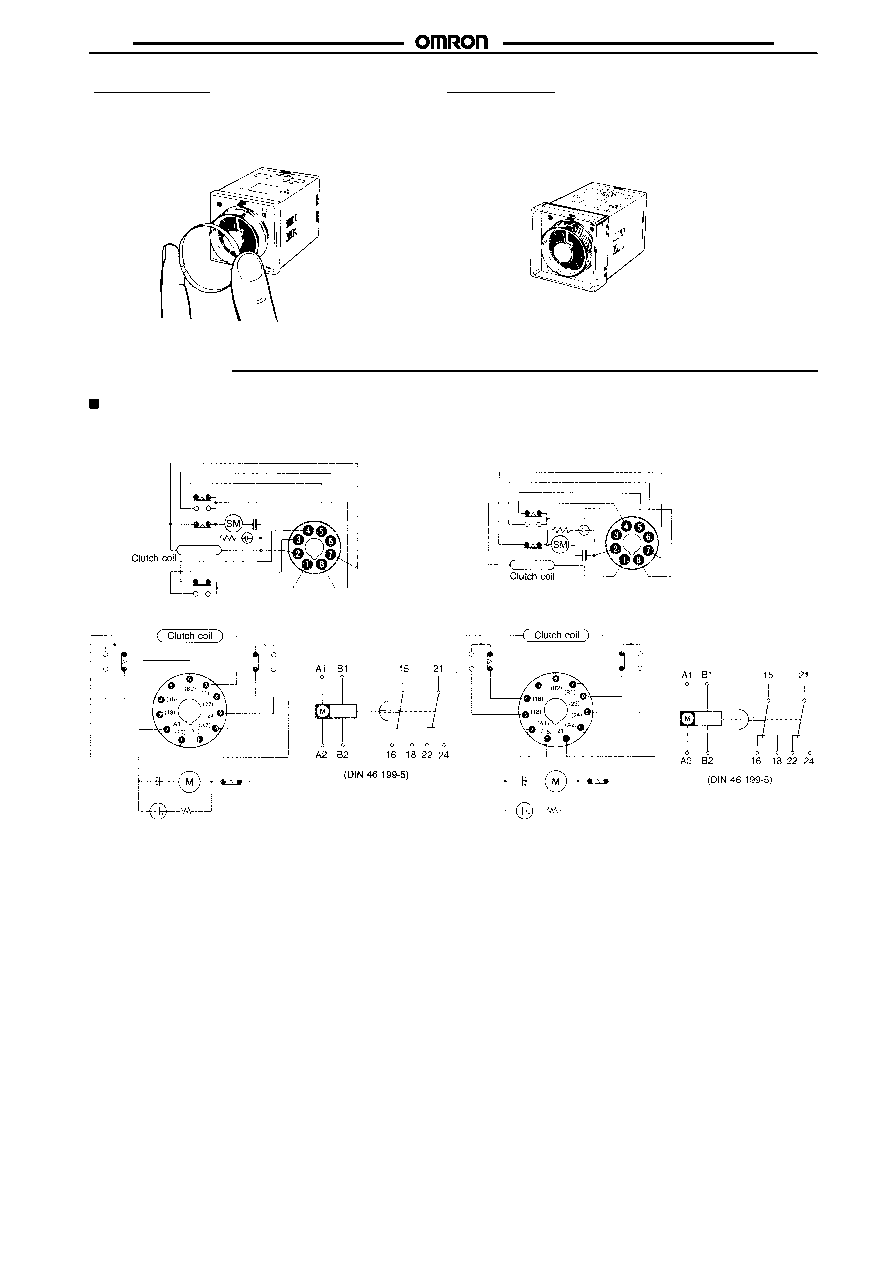

Time Setting Ring

Y92A-Y1

The time setting ring locks the time setting knob to

store the set time to facilitate its resetting. A maximum

of two time setting rings are connectable per timer.

Protective Cover

Y92A-48B

The protective cover shields the front panel, particular-

ly the time setting section, from dust, dirt, and water,

as well as prevents the set value from being altered

due to accidental contact with the time setting knob.

Installation

Terminal Arrangement

H2C-8

ON-delay 8-pin Round Socket

H2C(-F)

H2C-(F)R

H2C-8R

OFF-delay 8-pin Round Socket
