E5CS-X

E5CS-X

7

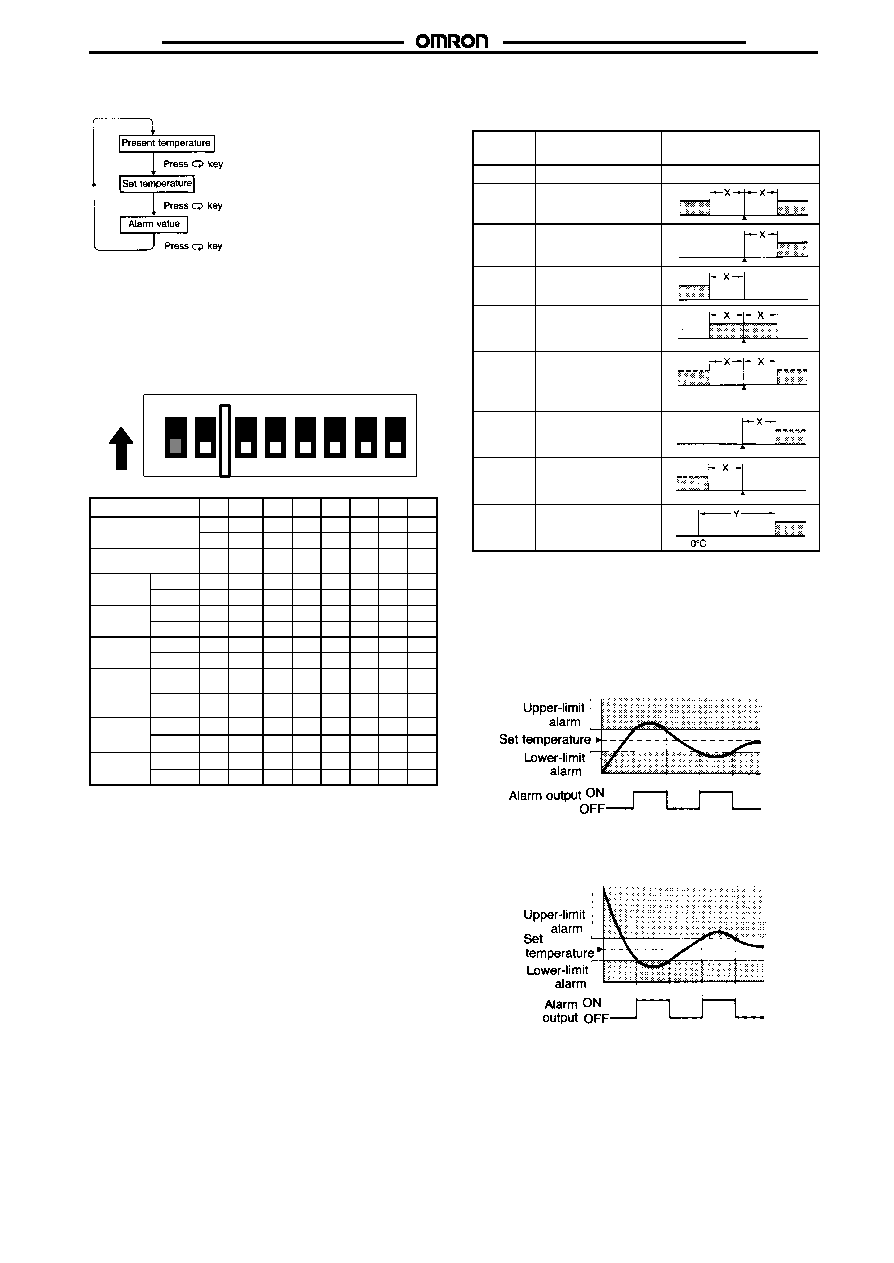

Temperature Indication Switching Key

If the set temperature is shifted out-

side the temperature range as a re-

sult of changing the range, the set

temperature is displayed. It is then

automatically changed to the maxi-

mum or minimum vale of the newly

set range.

If the alarm value is shifted outside

the temperature range as a result of

changing the range, it is automati-

cally changed to the maximum value

of the newly set range.

If the alarm mode selector switch is set to “0” or “9”, no alarm value is

displayed.

On models without alarms, no alarm value is displayed.

DIP Switch Settings

The control mode and other settings are selected using the internal

DIP switch as shown below.

ON

16

5

4

3

2

PX

ON

Function

P

X

1

2

3

4

5

6

Protect

ON

OFF

---

Not

used

Control

mode

PID

ON

mode

ON/OFF

OFF

Proportional

period

2 s

ON

period

20 s

OFF

Control

output

Normal

ON

output

Reverse

OFF

Input shift

Setting

enabled

ON

Setting

disabled

OFF

Temperature

sensor

DIN

ON

sensor

standard

JIS

OFF

Scale

indicator

°F

ON

indicator

(selectable)

°C

OFF

Setting the Alarm Mode

The desired alarm mode can be chosen from one of the eight alarm

modes using the alarm mode selector switch as shown below.

Switch

setting

Mode

Alarm output

0, 9

No alarm function

OFF

1

Upper- and

lower-limit alarms

2

Upper-limit alarm

3

Lower-limit alarm

4

Upper- and

lower-limit range

alarm

5

Upper- and

lower-limit alarms

with standby

sequence (see note)

6

Upper-limit alarm

with standby

sequence (see note)

7

Lower-limit alarm

with standby

sequence (see note)

8

Absolute-value alarm

Note:

The selector switch is factory-set to “2.”

The triangular mark

Y indicates the set temperature.

X denotes alarm values.

Y denotes the set value value within the temperature range.

Operation of Standby Sequence

Alarm output set with standby sequence will operate in the way

shown below when the temperature rises above the upper-limit.

Alarm output set with standby sequence will operate in the way

shown below when the temperature drops below the upper-limit.
