ADS630-R680EIRM datasheet(2/5 Pages) DFI

tên linh kiện	ADS630-R680EIRM

Giải thích chi tiết về linh kiện	14th/13th/12th Gen Intel® CoreTM ATX

PDF	5 Pages

Scroll/Zoom	100%

nhà sản xuất	DFI [DFI Inc]

Trang chủ	https://www.dfi.com/

Logo

2 / 5 page

www.dfi.com

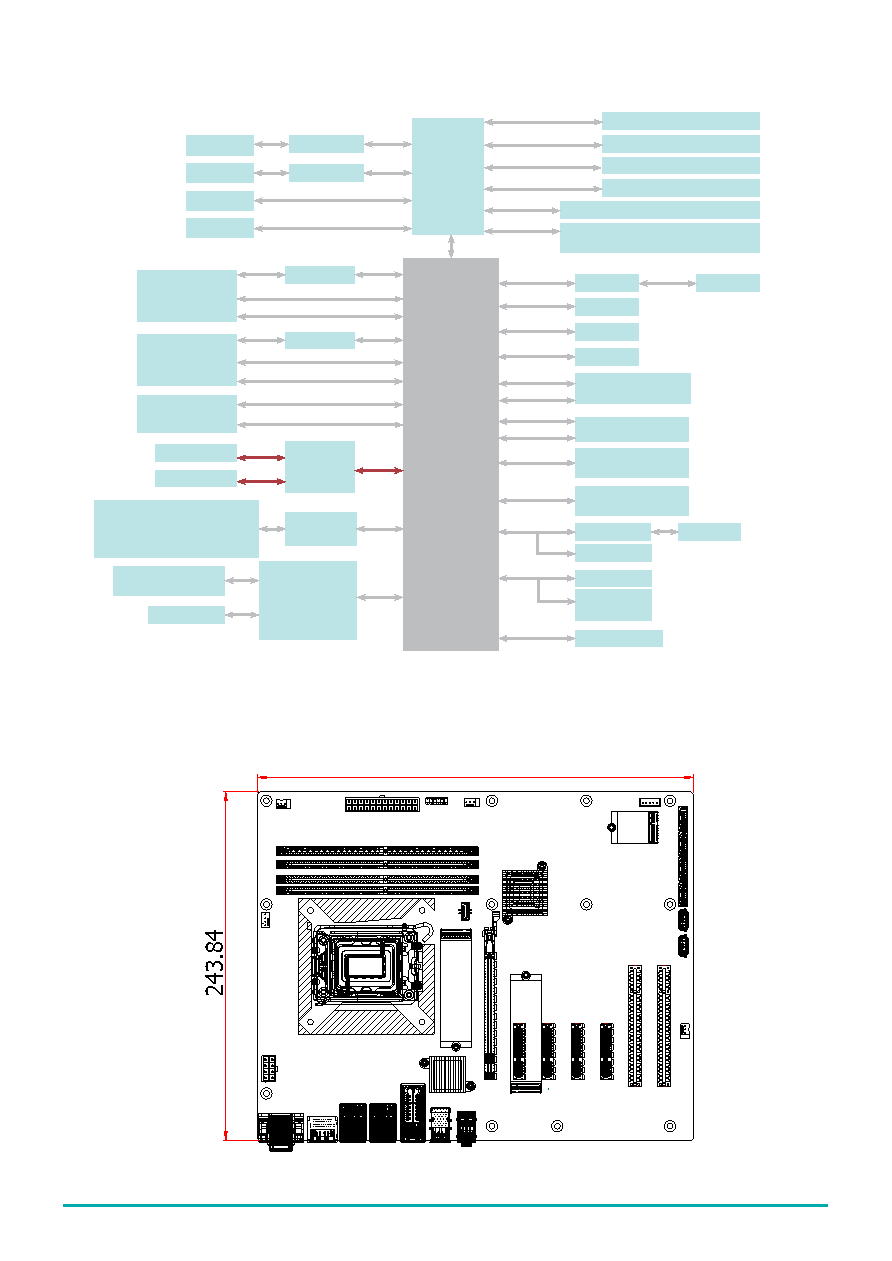

MECHANICAL DRAWING

BLOCK DIAGRAM

R680E/

Q670E

Channel A

SATAIII

DDI

DDR4 3200 MHz Support

SATA 4x

VGA

DMI 4.0

LGA 1700

2.5G LAN 1

USB 3.2 Gen2 2x

I225LM

USB 2.0

USB 2.0 1x

Vertical Type A

Channel A

DDR4 3200 MHz Support

Channel B

DDR4 3200 MHz Support

Channel B

DDR4 3200 MHz Support

PTN3355

DDI

DP++

HDMI 2.0

PCIe x4

M.2 M Key

PCIe x4

USB 2.0

USB 3.2

GbE

2.5G LAN 2

USB 3.2 Gen2 2x

USB 2.0

USB 3.2

USB 3.2 Gen1 4x

PCIe 16x

PCIe x16 Slot

PCIe

IT8893

PCI

PCI 2x

DDI

PI3HDX1204

PCIe x4 3x

DDI

DP++

USB 2.0

Intel

x550-AT2

(R680E only)

10G LAN 1

MDI

PCIe

MDI

10G LAN 1

HDA

S/PDIF

Front Audio

Audio Jack

(Line-out/Mic-in/Line-in (opt.))

Realtek

ALC888

RS232/422/485 2x

RS232 4x

Super IO

with WDT

Fan Control

Case Open

H/W Monitor

PS/2 KB/MS

eSPI

PCIe 4x

M.2 M key (opt.)

Co-lay PCIe x4 slot

USB 3.2

USB 3.2 Gen2 2x

(Key B 20-pin)

USB 2.0

PCIe/CNVi

M.2 E Key (opt.)

USB 2.0

SMBus

TCA6408A

SMBus

8 Bit DIO

SPI

SPI BIOS

TPM 2.0

NPCT754

eSPI

80 port Header

304.80

USB 2.0

USB 2.0 2x

colay vertical Type A

MDI

I225LM

GbE

MDI
