ST-2A Digital Indicator

All specifications are subject to change without notice. All sales subject to standard terms and conditions.

Ashcroft®, Quick-Select™ and Trust the Shield® are trademarks of Ashcroft Inc. The following non-Ashcroft trademarks are

the property of their respective owners: 17-4 PH®, VCR®. For more information, see Ashcroft Brands & Trademarks

©2023 Ashcroft Inc. ST-2A_gauge_ds_RevD_01-24-23

ashcroft.com

| 1.800.328.8258 | Contact Us

Data Sheet

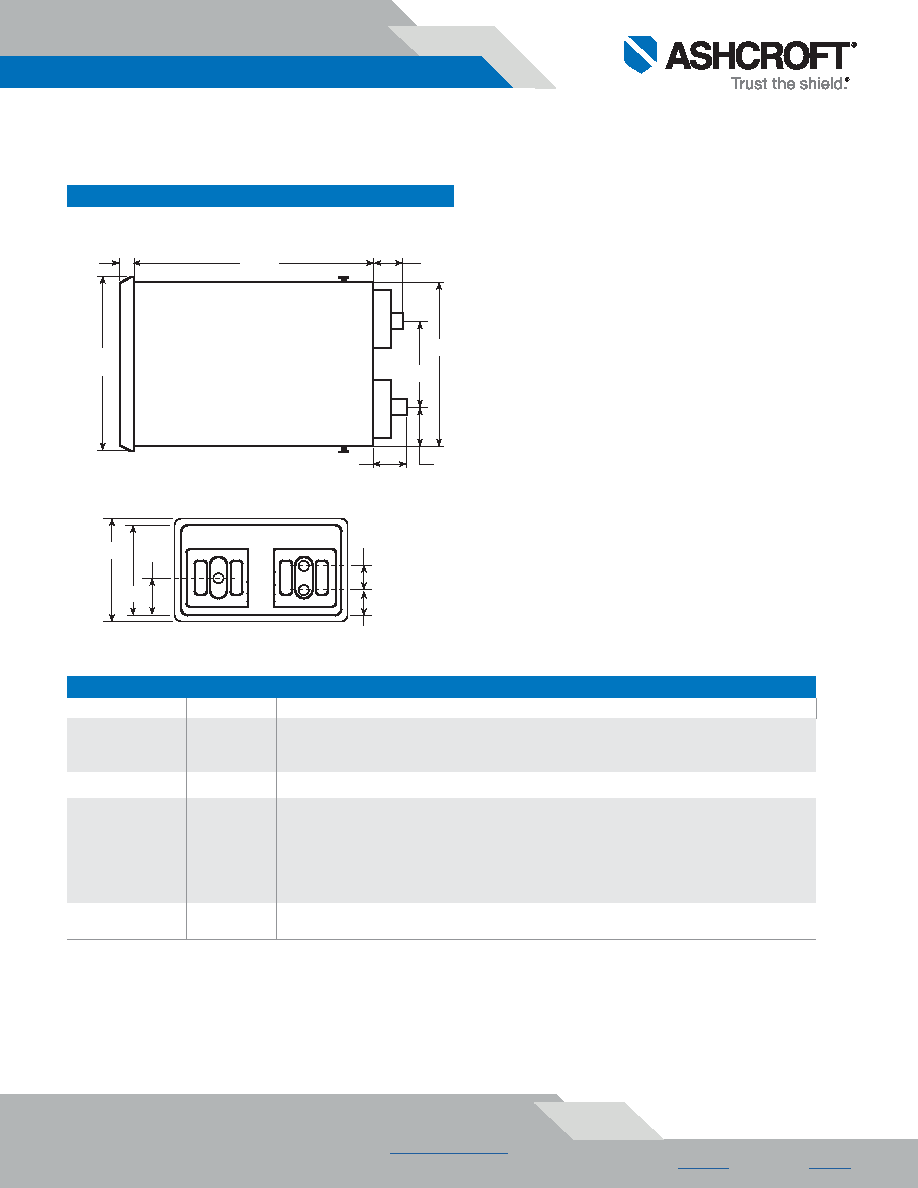

DIMENSIONS

For reference only, consult Ashcroft for specific dimensional drawings

0.93

0.97

1.44

3.47

4.00

9.24

0.56

6.74

6.33

3.31

1.51

1.25

1.10

ADDITIONAL ACCESSORIES

Item

Part Number

Description

RS 232 Accessories

838X011-01

Cable assembly, connects base unit to computer with a 9 point serial port.

838X012-01

Adapter, converts connector on cable (838X011-01) to 25 pin type connector on personal computer.

Test Leads

836X115-02

Test leads with miniature banana jacks, alligator clips and miniature to standard banana jack adapter.

Power Supplies

831X016-01

AC adapter to run system off line power (110 Vac, 60 Hz)

831X016-02

AC adapter to run system off line power (100 Vac, 60 Hz)

831X016-03

AC adapter to run system off line power (220 Vac, 50 Hz)

8361176-01

1.5 volt NiCad battery (5 required)

Other quick select

modules

840X009-01

AQS-XS

For base unit calibration, provides quick access to pins inside module bay

“System Protection” module to fill unused module bay in single module applications.
