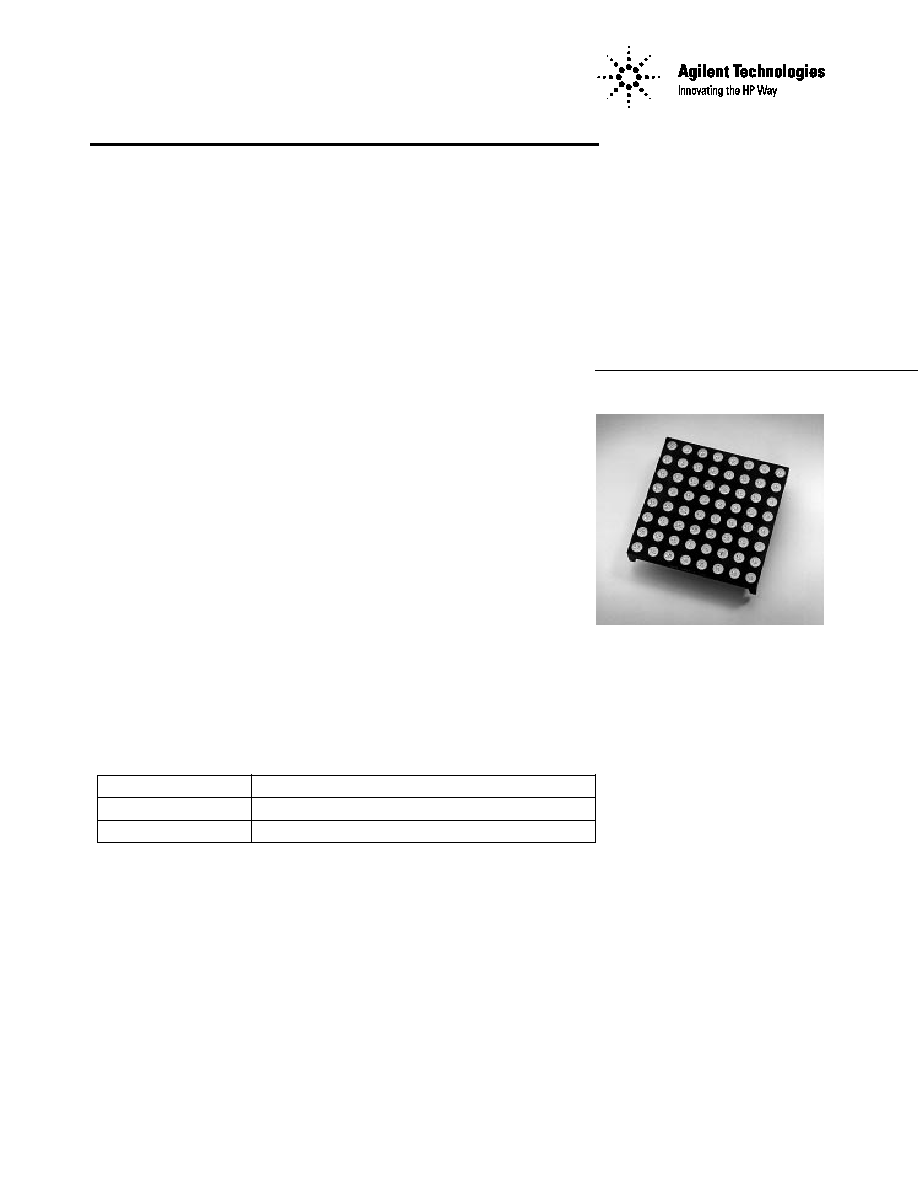

8 x 8 Rich Color General Purpose

Dot Matrix Displays

47.8 mm (1.88 inch) Package

Technical Data

HDSP-R881

HDSP-R883

Features

• 8 x 8 Dot Matrix

Dot Diameter 3.75 mm

Dot Pitch 6.0 mm

• Rich Color Capability

Mix Colors Red, Blue, and

Green for Rich Colors

including White

• Viewable up to 30 Meters

• X-Y Stackable

• Industry Standard Pin-out

36.0 mm (1.4 in.) DIP Leads on

2.54 mm (0.1 in.) Centers

• Black Face Paint

Description

This display comprises 8 rows by

8 columns of 3.75 mm diameter

dots on a pitch of 6.0 mm. The

device is available in common row

cathode and common row anode

configurations. The displays come

in black face paint and black side-

walls. Each dot has red, green,

and blue (RGB) colors that may be

mixed to produce the intended

rich color. Water clear dots

provide for higher intensities for

the display.

Devices

Description

HDSP-R881

Common Row Anode

HDSP-R883

Common Row Cathode

Note:

1. For details, please contact your local Agilent components sales office or an authorized distributor.
