July 2006

Rev 1

1/9

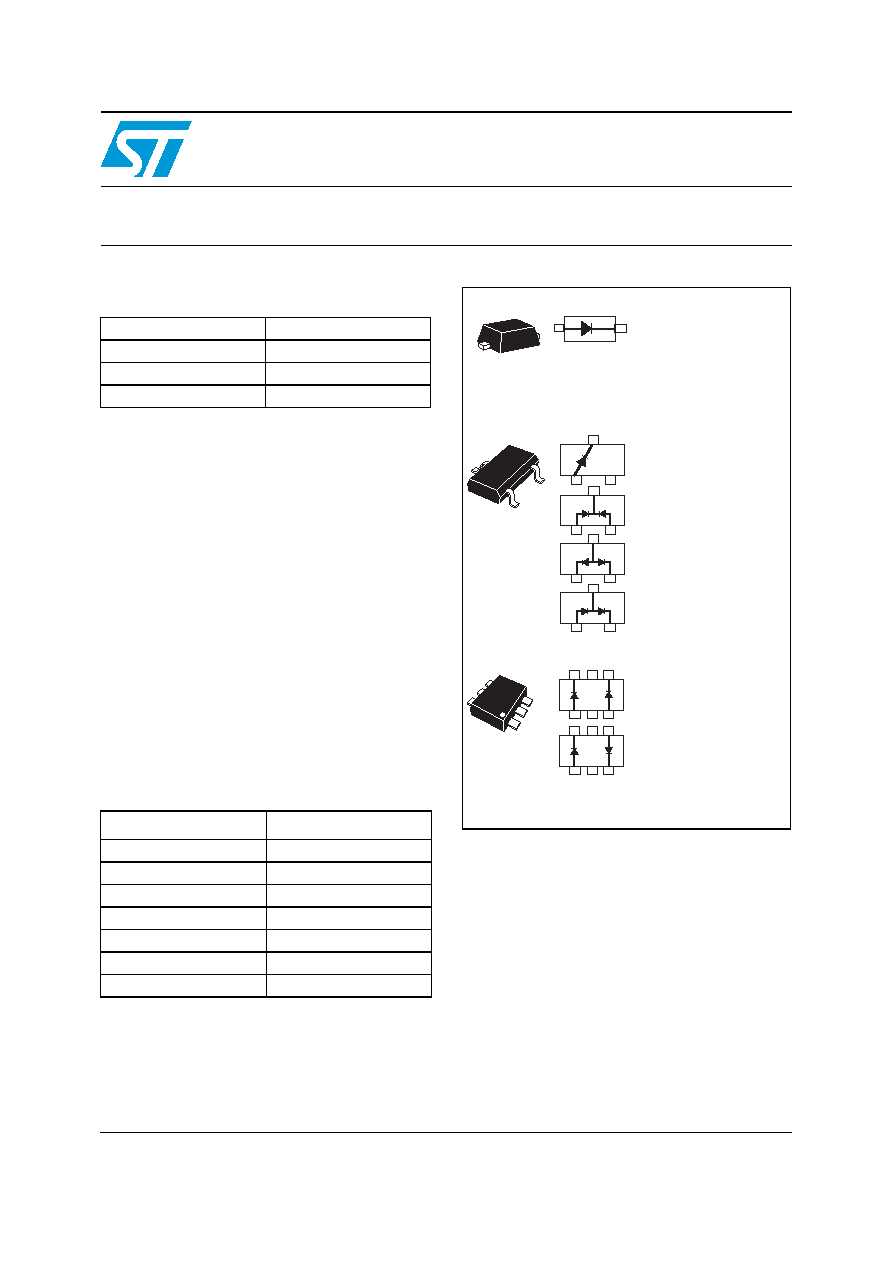

BAS69 Series

Low capacitance small signal Schottky diodes

Main product characteristics

Features and benefits

■ Low diode capacitance

■ Designed for RF applications

■ Low profile packages

■ Very low parasitic inductor and resistor

Description

The BAS69 series use 15V barrier, with extremely

low junction capacitance, suitable for the

detection of an RF signal and the compensation

of the voltage drift with the temperature. The

presented packages make the device ideal in

applications where space saving is critical.

The low junction capacitance will reduce the

disturbance on the RF signal.

Order codes

IF

10 mA

VRRM

15 V

C (typ)

<1 pF

Tj (max)

150° C

Part Number

Marking

BAS69WFILM

23

BAS69-04WFILM

24

BAS69-05WFILM

25

BAS69-06WFILM

26

BAS69KFILM

65

BAS69-09P6FILM

69

BAS69-07P6FILM

67

SOD-523

SOT-666

BAS69KFILM

(Single)

BAS69WFILM

(Single)

BAS69-05WFILM

(Common cathode)

BAS69-06WFILM

(Common anode)

BAS69-04WFILM

(Series)

BAS69-07P6FILM

(2 parallel diodes)

BAS69-09P6FILM

(2 opposite diodes)

SOT-323

Configurations in top view

www.st.com
