Data Sheet
ADL8105
USING THE RBIAS PIN TO ENABLE AND DISABLE THE ADL8105
analog.com
Rev. A | 21 of 22
By attaching a single-pole, double throw (SPDT) switch to the
RBIAS pin, an enable and/or disable circuit can be implemented as
shown in Figure 76. The ADG719 CMOS switch is used to connect
the RBIAS resistor either to supply or ground. When the RBIAS
resistor is connected to ground, the overall current consumption
reduces to 4.73 mA with no RF signal present and 4.92 mA when
the RF input level is –10 dBm.
Figure 77 shows a plot of the turn on and/or turn off response
time of the RF output envelope when the IN pin of the ADG719 is
pulsed.

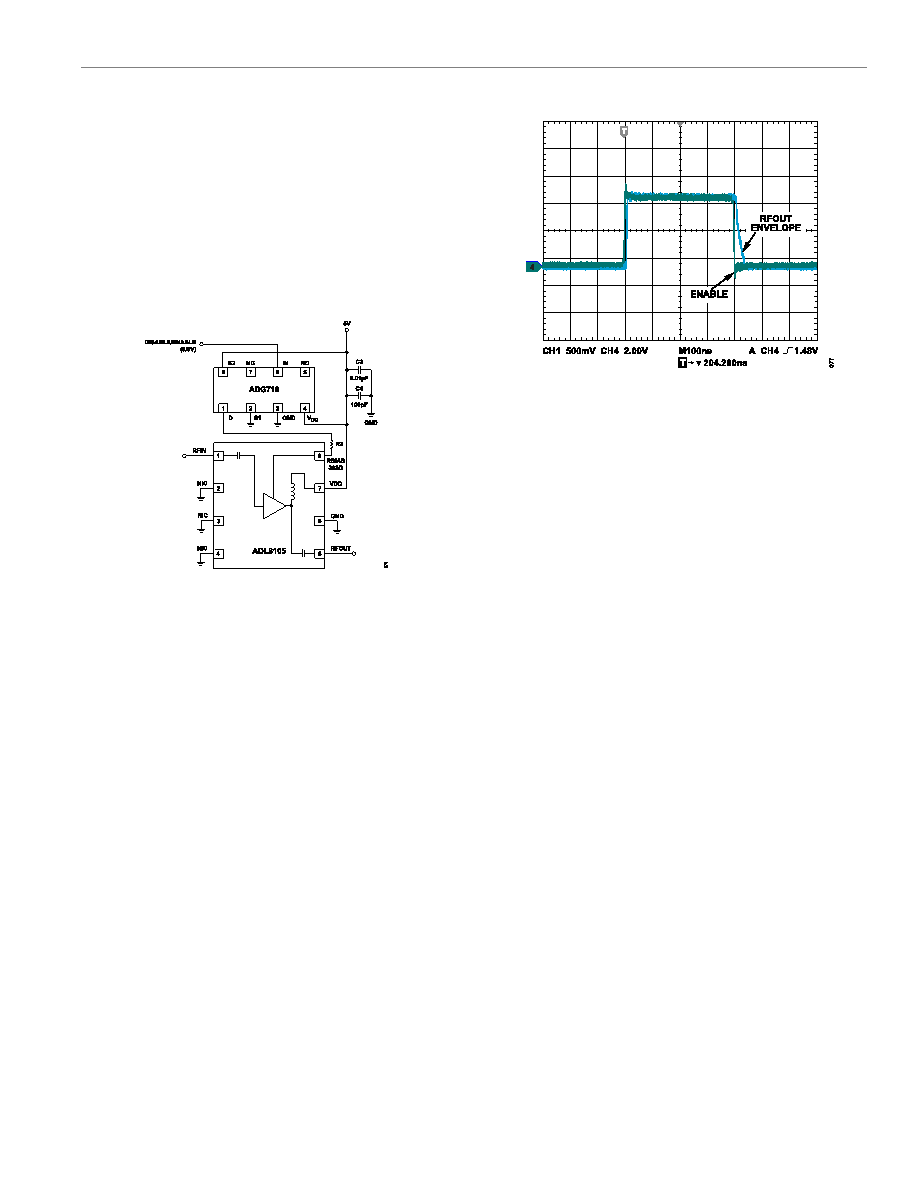

Figure 76. Fast Enable and/or Disable Circuit Using an SPDT
Figure 77. On and/or Off Response of the RF Output Envelope When the IN
Pin of the ADG719 Is Pulsed
