ADA4084-1/ADA4084-2/ADA4084-4

Data Sheet

Rev. I | Page 34 of 36

COMPLIANT TO JEDEC STANDARDS MO-187-AA

6°

0°

0.80

0.55

0.40

0.65 BSC

0.40

0.25

1.10 MAX

3.20

3.00

2.80

COPLANARITY

0.10

0.23

0.09

3.20

3.00

2.80

5.15

4.90

4.65

PIN 1

IDENTIFIER

15° MAX

0.95

0.85

0.75

0.15

0.05

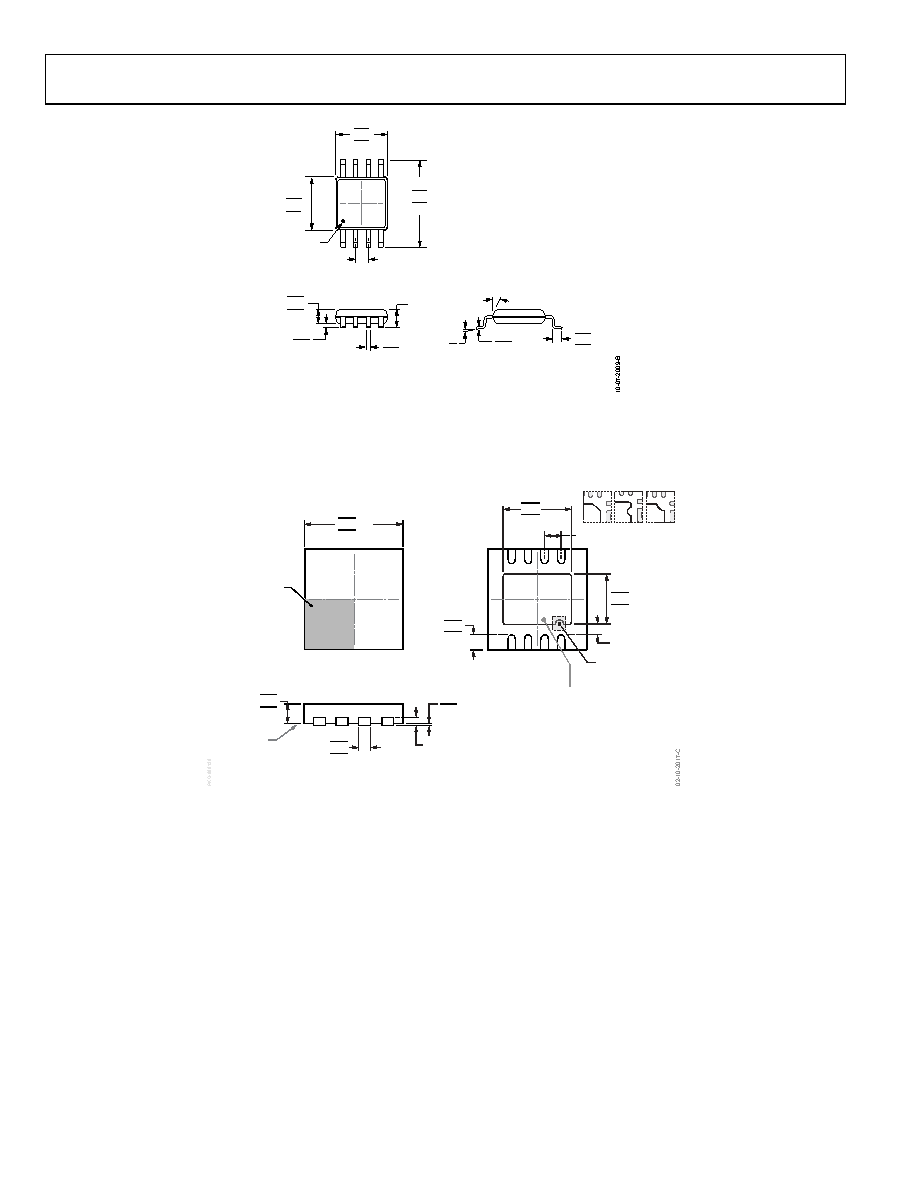

Figure 117. 8-Lead Mini Small Outline Package [MSOP]

(RM-8)

Dimensions shown in millimeters

2.44

2.34

2.24

0.30

0.25

0.20

PIN 1 INDEX

AREA

0.80

0.75

0.70

1.70

1.60

1.50

0.203 REF

0.05 MAX

0.02 NOM

0.50 BSC

3.10

3.00 SQ

2.90

COPLANARITY

0.08

0.50

0.40

0.30

COMPLIANT

TO JEDEC STANDARDS MO-229-W3030D-4

0.20 MIN

SEATING

PLANE

TOP VIEW

SIDE VIEW

EXPOSED

PAD

BOTTOM VIEW

FOR PROPER CONNECTION OF

THE EXPOSED PAD, REFER TO

THE PIN CONFIGURATION AND

FUNCTION DESCRIPTIONS

SECTION OF THIS DATA SHEET

PIN 1

INDIC ATOR AREA OPTIONS

(SEE DETAIL A)

DETAIL A

(JEDEC 95)

Figure 118. 8-Lead Lead Frame Chip Scale Package [LFCSP]

3 mm × 3 mm Body and 0.75 mm Package Height

(CP-8-11)

Dimensions shown in millimeters
