Data Sheet

ADA4511-2

Precision, 40 V, Rail-to-Rail Input and Output Op Amp

Rev. A

DOCUMENT FEEDBACK

TECHNICAL SUPPORT

Information furnished by Analog Devices is believed to be accurate and reliable "as is". However, no responsibility is assumed by Analog

Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to

change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and

registered trademarks are the property of their respective owners.

FEATURES

►

Low-offset voltage drift: ±2 μV/°C maximum

►

Low-offset voltage: ±75 μV maximum

►

Low-voltage noise: 1 μV p-p from 0.1 Hz to 10 Hz typical

►

Low-voltage noise density: 5 nV/√Hz typical at f = 1 kHz

►

High common-mode rejection: 140 dB typical

►

Low-input bias current: ±10 pA maximum

►

Wide gain bandwidth product: 10.4 MHz typical

►

High slew rate: 19 V/μs typical

►

Low THD: −134 dB at f = 1 kHz

►

Low-quiescent supply current: 1.45 mA per amplifier typical

►

Wide supply voltage operation: 6 V to 40 V, ±3 V to ±20 V

►

Integrated EMI filter

►

Multiplexer compatible inputs

►

Rail-to-rail high impedance: differential and common-mode

►

Fast settling time

►

Rail-to-rail output

►

No phase reversal

►

Heavy capacitive load drive capability: 1 nF

►

Wide specified temperature range: −40°C to +125°C

►

Available in 8-lead, SOIC_N and 8-lead, MSOP packages

GENERAL DESCRIPTION

The ADA4511-21 is a dual-channel, 40 V, high precision, low-input

bias current, low-offset voltage, low-offset voltage drift, low noise,

rail-to-rail input and output operational amplifier (op amp) that can

be used at any point of the signal chain, which includes sensing,

conditioning, and output drive. Through trimming, the ADA4511-2

achieves low offset drift (±0.4 μV/°C typical, ±2 μV/°C maximum)

and low offset voltage (±25 μV typical, ±75 μV maximum).

The ADA4511-2 delivers top DC accuracy and AC precision, which

makes it suitable for a wide variety of signal chain applications. By

integrating a robust mux-compatible architecture, the ADA4511-2

effectively solves common system distortion and settling problems

and provides the superior accuracy required in multiplexed multi-

channel precision signal chains. The ADA4511-2 is specified from

−40°C to +125°C and is available in an 8-lead, SOIC_N and 8-lead,

MSOP.

APPLICATIONS

►

Multiplexed data acquisition systems

►

Electronic test and measurement

►

Automated test equipment

►

Medical instruments

►

Energy monitoring

►

Precision current sensing

►

Precision buffer

►

Transimpedance amplifiers

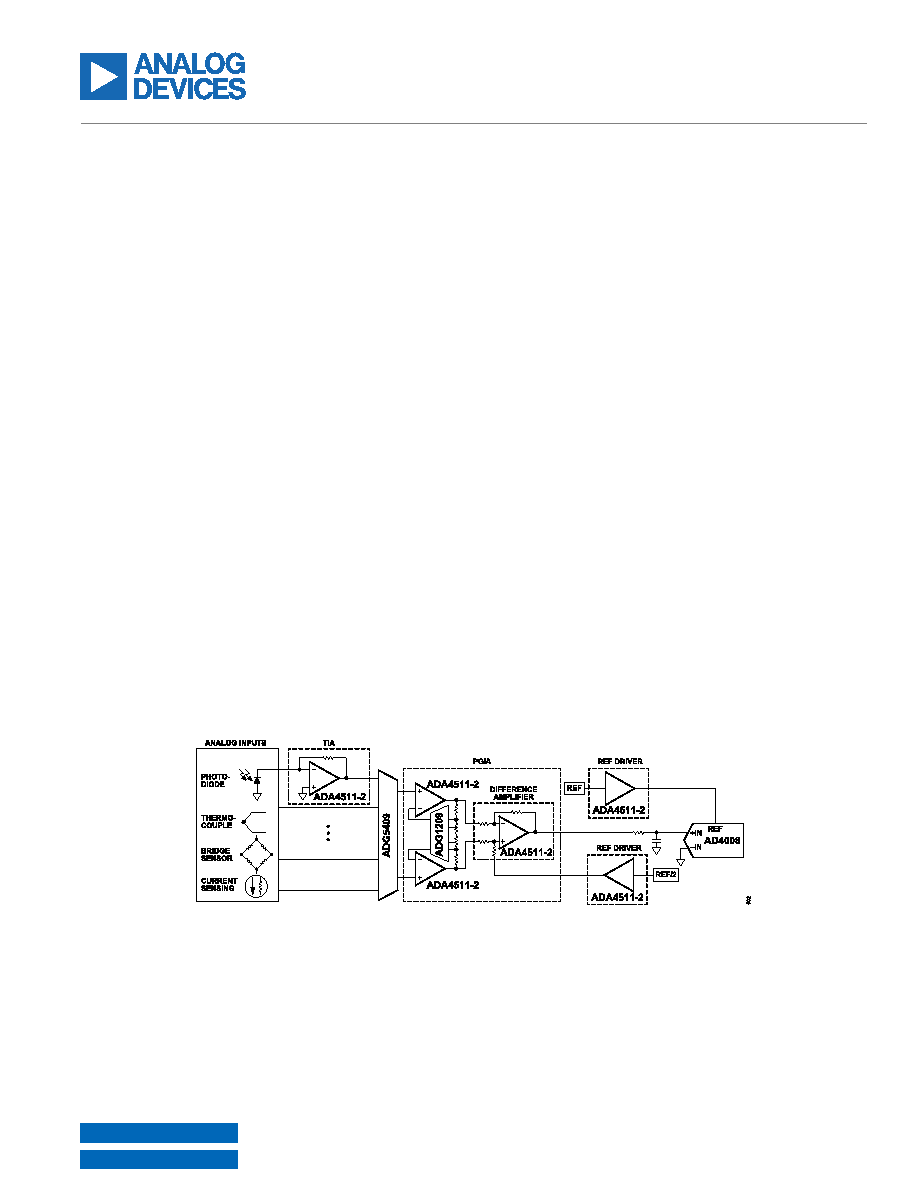

TYPICAL APPLICATION CIRCUIT

Figure 1. Multiplexed Data Acquisition Signal Chain

1 Protected by U.S. patent number 11,329,612; other patents pending.
