ADA4431-1YCPZ-R2 bảng dữ liệu(PDF) 6 Page - Analog Devices |
|
|
|||||||||||||||||||||||||||||
ADA4431-1YCPZ-R2 bảng dữ liệu(HTML) 6 Page - Analog Devices |
|

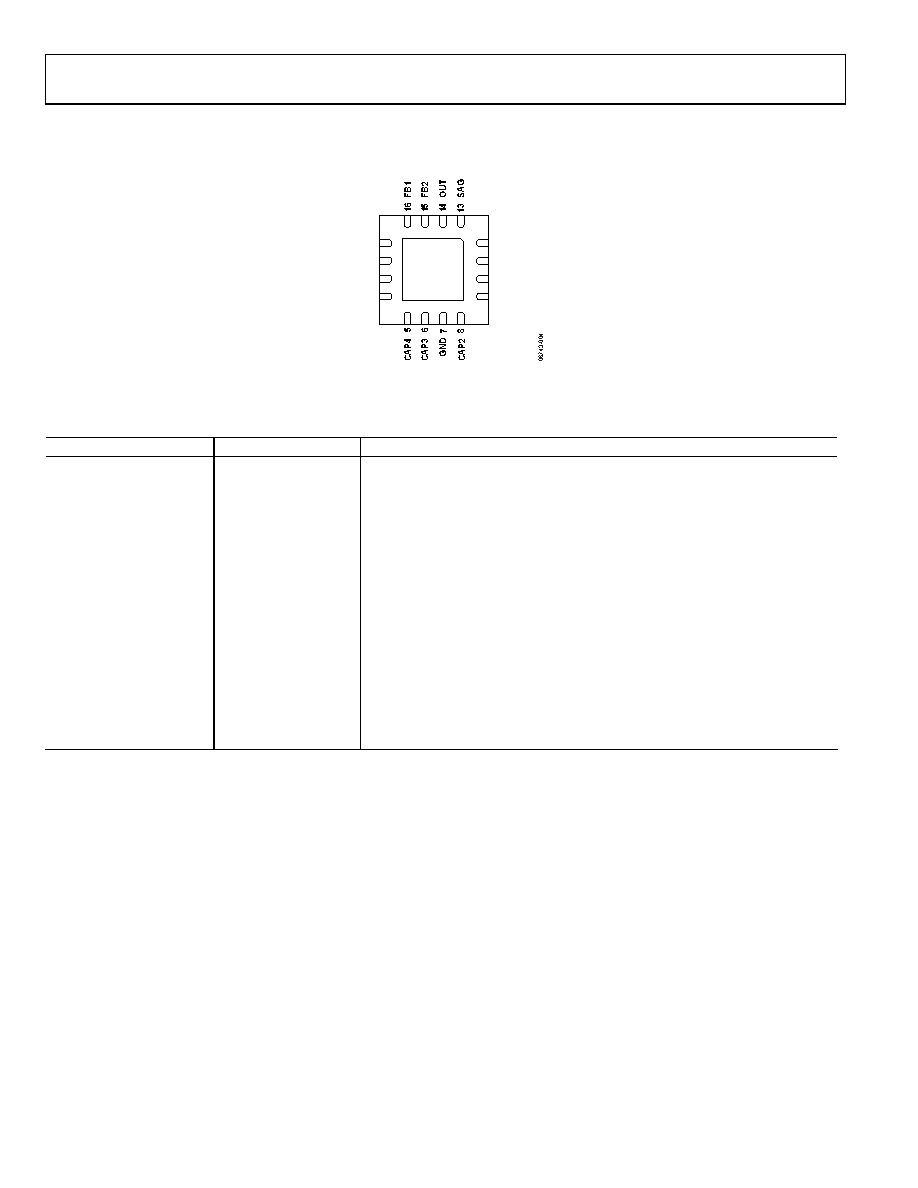

6 / 12 page ![]() ADA4431-1 Rev. 0 | Page 6 of 12 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS 1 2 3 GND SUBS +VS 4 CAP1 12 10 9 +VS DIS 11 IN LDO ADA4431-1 TOP VIEW (Not to Scale) Figure 4. Pin Configuration Table 5. Pin Function Descriptions Pin No. Mnemonic Description 1 +VS Supply Voltage. 2 IN Video Input. 3 DIS Disable Pin. High = charge pump on, floating = charge pump off, low = disabled. 4 LDO Load Detect Output. High = video load present. 5 CAP4 Capacitor 2, Lead 2. 6 CAP3 Capacitor 2, Lead 1. 7 GND Ground. 8 CAP2 Capacitor 1, Lead 2. 9 CAP1 Capacitor 1, Lead 1. 10 +VS Supply Voltage. 11 SUBS Substrate Voltage Pin. Bypass to GND with 1.0 μF capacitor. 12 GND Ground. 13 SAG SAG Feedback Pin. 14 OUT Video Output. 15 FB2 Load Detect Feedback Pin 2. Connect to device side of series termination resistor. 16 FB1 Load Detect Feedback Pin 1. Connect to load side of series termination resistor. |
|
|
