Data Sheet

AD8139

Rev. C | Page 25 of 26

OUTLINE DIMENSIONS

COMPLIANT TO JEDEC STANDARDS MS-012-A A

1.27

0.40

1.75

1.35

2.29

0.356

0.457

4.00

3.90

3.80

6.20

6.00

5.80

5.00

4.90

4.80

0.10 MAX

0.05 NOM

3.81 REF

0.25

0.17

8°

0°

0.50

0.25

45°

COPLANARITY

0.10

1.04 REF

1.27 BSC

SEATING

PLANE

FOR PROPER CONNECTION OF

THE EXPOSED PAD, REFER TO

THE PIN CONFIGURATION AND

FUNCTION DESCRIPTIONS

SECTION OF THIS DATA SHEET.

BOTTOM VIEW

TOP VIEW

0.51

0.31

1.65

1.25

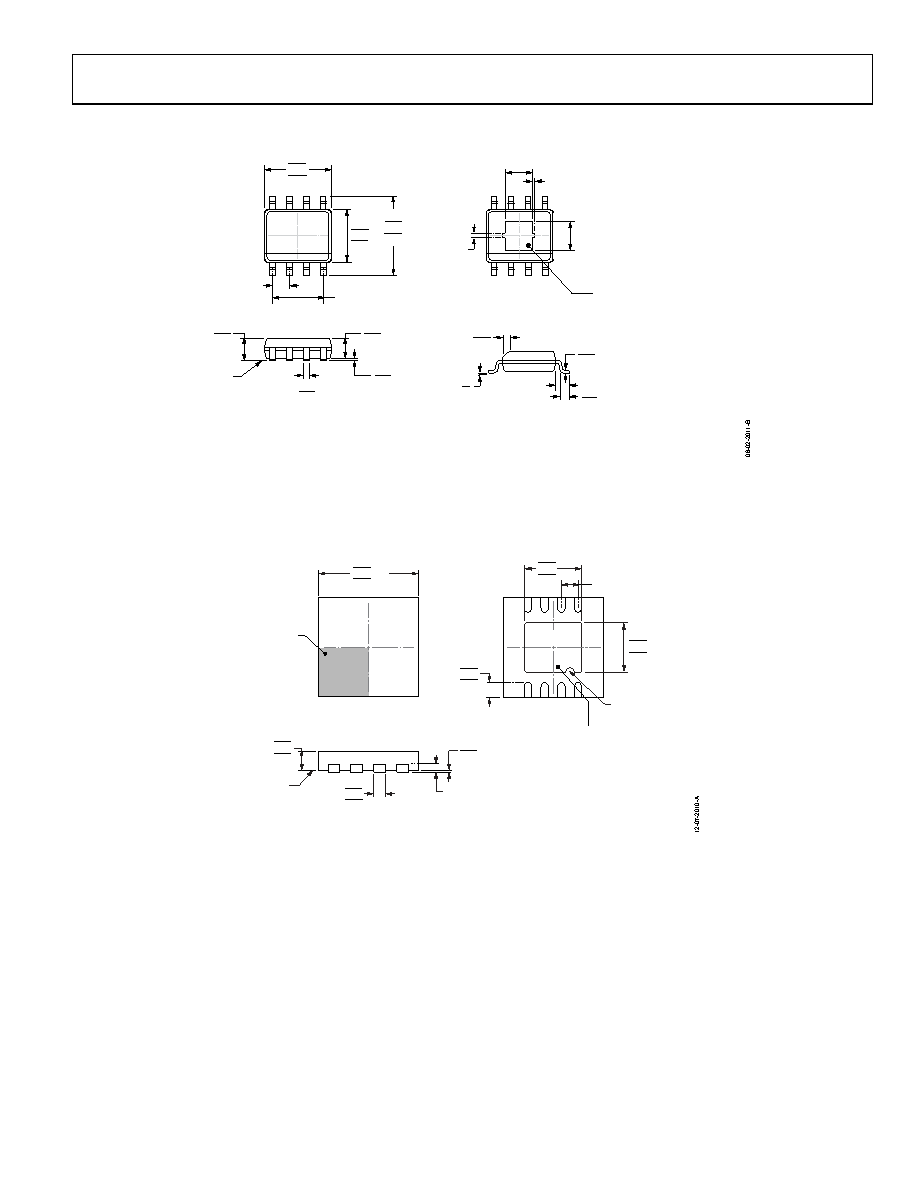

Figure 65. 8-Lead Standard Small Outline Package with Exposed Pad [SOIC_N_EP]

Narrow Body

(RD-8-1)

Dimensions shown in millimeters

TOP VIEW

0.30

0.25

0.20

BOTTOM VIEW

PIN 1 INDEX

AREA

SEATING

PLANE

0.80

0.75

0.70

1.55

1.45

1.35

1.84

1.74

1.64

0.203 REF

0.05 MAX

0.02 NOM

0.50 BSC

EXPOSED

PAD

3.10

3.00 SQ

2.90

FOR PROPER CONNECTION OF

THE EXPOSED PAD, REFER TO

THE PIN CONFIGURATION AND

FUNCTION DESCRIPTIONS

SECTION OF THIS DATA SHEET.

COPLANARITY

0.08

0.50

0.40

0.30

COMPLIANT

TO JEDEC STANDARDS MO-229-WEED

PIN 1

INDICATOR

(R 0.15)

Figure 66. 8-Lead Lead Frame Chip Scale Package [LFCSP]

3 mm × 3 mm Body and 0.75 mm Package Height

(CP-8-13)

Dimensions shown in millimeters
