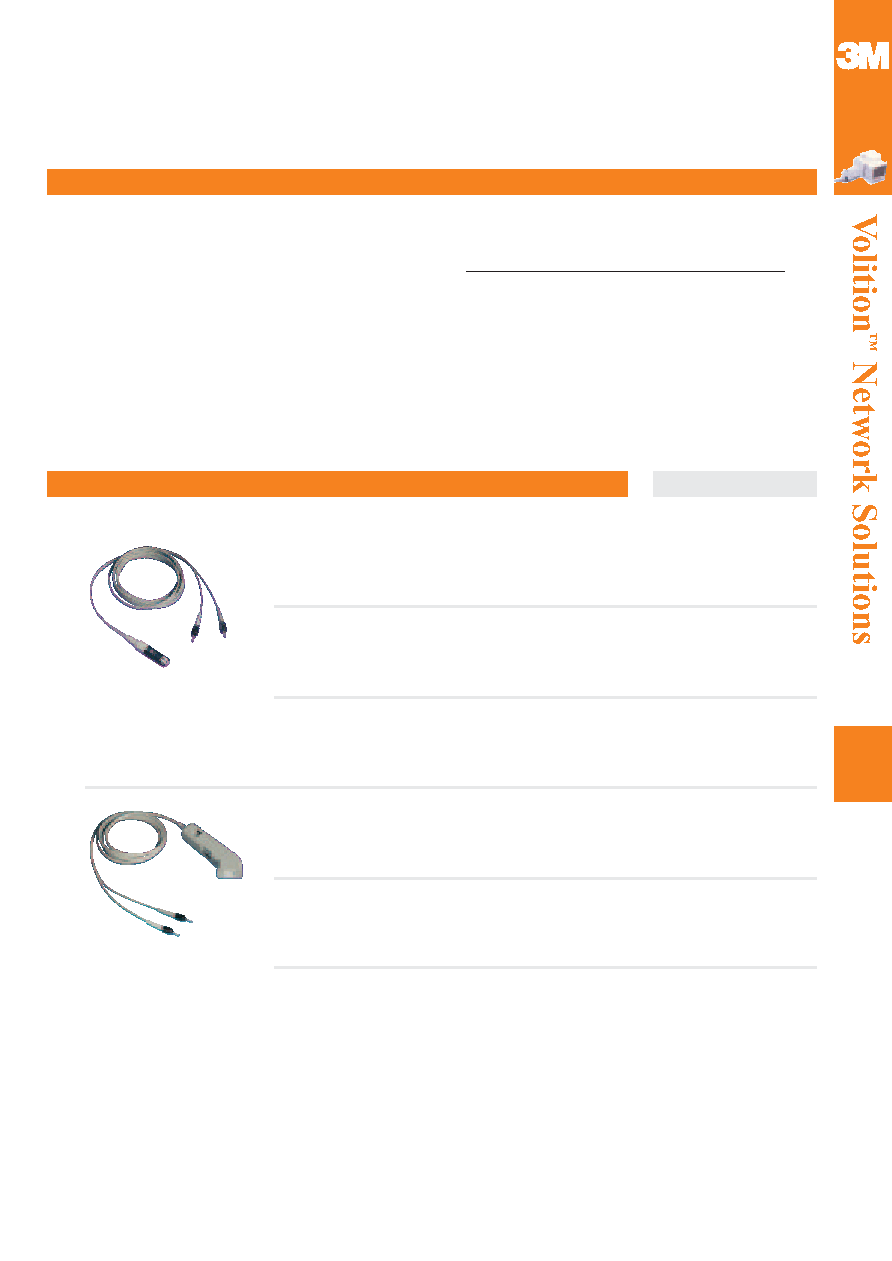

Fibre Cabling

1.2.6

Volition™ VF-45™ Test Leads

Description

Reference Cable Kits

Volition reference cable kits enable connections to be made to test

equipment fitted with an ST or SC connector interface. The trans-

mit cable consists of a VF45 socket on one end and a choice of

either 2 ST, SC or FC at the other end. The receive cable has a

VF-45 socket housed in a protective casing on one end and at the

other there are either 2 ST or 2 SC connectors.

The 100m OTDR cables are necessary to ensure the near end

connector is outside the near end dead zone of the OTDR being

used.

Launch cables are available with SC connectors.

Type/Order Text

Ref.-No.

Highlights:

• Guaranteed high quality

• Receiver or transmitter cable with VF-45™ connector

• Available with either two SC or two ST connectors for

connection to test equipment.

VF-45 Connector to ST Connector and VF-45 Socket

VOL-UREF-050-ST

PU: 1

MOQ: 1

Reference Cable kit, beige, 1,5 m:

50/125µm Connecting Cable

ST Connector to VF-45 Socket (2x)

ST Connector to VF-45 Connector (2x)

50/125 Reference Cable

VF-45 Connector to VF-45 Connector (1x)

VF-45 Connector to ST Connector and VF-45 Socket

VOL-UREF-062-ST

PU: 1

MOQ: 1

Reference Cable kit, beige, 1,5 m:

62,5/125µm Connecting Cable ST Connector to VF-45 Socket (2x)

ST Connector to VF-45 Connector (2x)

62,5/125 Reference Cable

VF-45 Connector to VF-45 Connector (1x)

VF-45 Connector to ST Connector and VF-45 Socket

VOL-UREF-SM-ST

PU: 1

MOQ: 1

Reference Cable kit, green, 1,5 m:

9/125µm Connecting Cable

ST Connector to VF-45 Socket (2x)

ST Connector to VF-45 Connector (2x)

9/125 Reference Cable

VF-45 Connector to VF-45 Connector (1x)

VF-45 Connector to SC Connector and VF-45 Socket

VOL-UREF-050-SC

PU: 1

MOQ: 1

Reference Cable kit, beige, 1,5 m:

50/125µm Connecting Cable

SC Connector to auf VF-45 Socket (2x)

SC Connector to VF-45 Connector (2x)

50/125 Reference Cable

VF-45 Connector to VF-45 Connector (1x)

VF-45 Connector to SC Connector and VF-45 Socket

VOL-UREF-062-SC

PU: 1

MOQ: 1

Reference Cable kit, beige, 1,5 m:

62,5/125µm Connecting Cable SC Connector to VF-45 Socket (2x)

SC Connector to VF-45 Connector (2x)

62,5/125 Reference Cable

VF-45 Connector to VF-45 Connector (1x)

VF-45 Connector to SC Connector and VF-45 Socket

VOL-UREF-SM-SC

PU: 1

MOQ: 1

Reference Cable kit, green, 1,5 m:

9/125µm Connecting Cable

SC Connector to VF-45 Socket (2x)

SC Connector to VF-45 Connector (2x)

9/125 Reference Cable

VF-45 Connector to VF-45 Connector (1x)
