Data Sheet
ADN4600
Rev. C | Page 7 of 28
PIN CONFIGURATION AND FUNCTION DESCRIPTIONS
RESETB
VEE
IN0
IP0
VCC
IN1
IP1
VTTI
IN2
IP2
VEE
IN3
IP3
DVCC
VCC
VEE
SCL
SDA
VEE
IP7
IN7
VCC
IP6
IN6
VTTI
IP5
IN5
VEE
IP4
IN4
VCC
VEE
NOTES
1. PAD ON BOTTOM OF PACKAGE MUST BE CONNECTED TO VEE.
ADN4600
TOP VIEW
(Not to Scale)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33

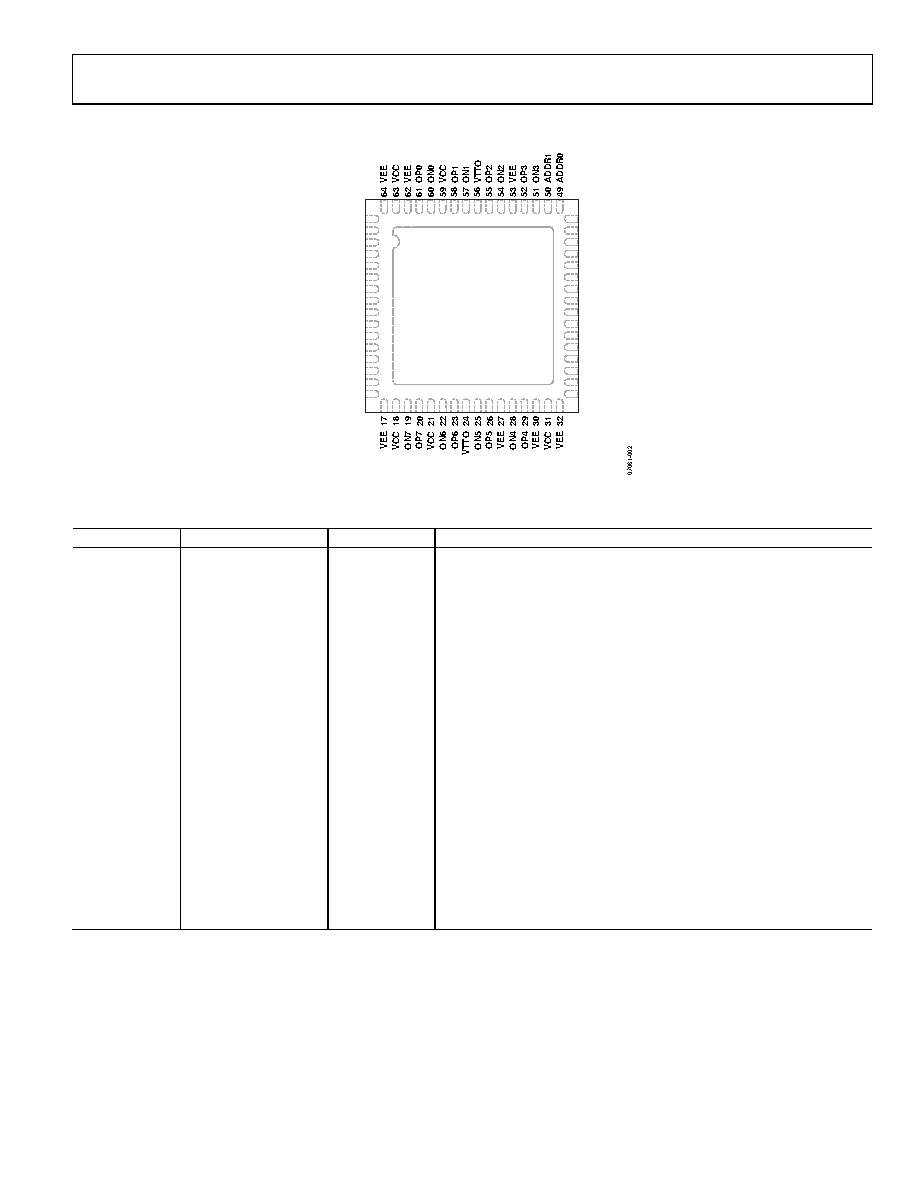

Figure 3. Pin Configuration
Table 4. Pin Function Descriptions
Pin No.
Mnemonic
Type
Description
1
RESETB
Control
Reset Input (Active Low)
2, 11, 16, 17, 27,
30, 32, 33, 37,
46, 53, 62, 64
VEE
Power
Negative Supply
3, 6, 9, 12, 35,
38, 41, 44
IN0 to IN7
I/O
High Speed Inputs Complement
4, 7, 10, 13, 36,
39, 42, 45
IP0 to IP7
I/O
High Speed Inputs
5, 15, 18, 21, 31,
34, 43, 59, 63
VCC
Power
Positive Supply
8, 40
VTTI
Power
Input Termination Supply
14
DVCC
Power
Digital Positive Supply (3.3 V)
19, 22, 25, 28,
51, 54, 57, 60
ON7 to ON0
I/O
High Speed Outputs Complement
20, 23, 26, 29,
52, 55, 58, 61
OP7 to OP0
I/O
High Speed Outputs
24, 56
VTTO
Power
Output Termination Supply
47
SDA
Control
I2C Control Interface Data Input/Output
48
SCL
Control
I2C Control Interface Clock Input
49
ADDR0
Control
I2C Control Interface Address LSB
50
ADDR1
Control
I2C Control Interface Address MSB
EPAD
Power
Connect to VEE
