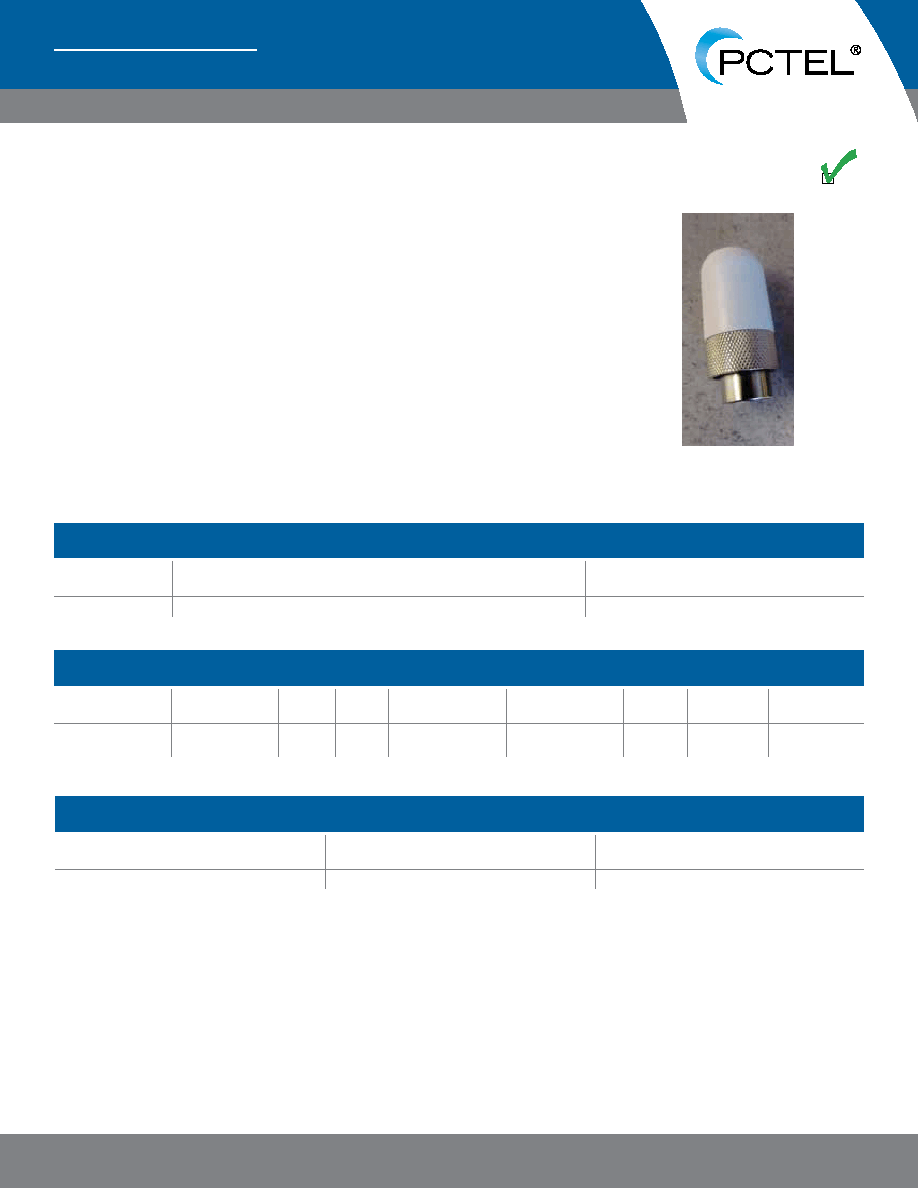

IN-BUILDING ANTENNAS

PCTEL, Inc. WEB: www.antenna.com

PCTEL’s very low-profile antennas are optimized for operation with Reverse Polarity

TNC and SMA compatible broadband wireless MIMO (802.11n) access points

operating at 2.4 GHz and/or 5 GHz frequencies. Their rugged, UV-resistant housing

makes them suitable for use in a wide variety of indoor applications, including office

LAN environments, factory floors, and retail establishments.

Features

• Omnidirectional antenna for indoor operation

• Outstanding performance in a very low-profile housing

• White UL94 V0 plastic housing

• Built directly on an RP-TNC or RP-SMA plug connector

• No more than 1-1/2” long including the connector

Low-Profile Access Point Antennas for

Broadband Wireless

PCTMI

Access Point Low-Profile Antennas, Single Band 802.11a, b/n, ac

ELECTRICAL SPECIFICATIONS - RF ANTENNA

Model

Frequency

Range

Gain

VSWR

Azimuth Half

Power Beamwidth

Elevation Half

Power Beamwidth

Average

Power

Nominal

Impedance

Polarization

PCTMI2458-RPSMA 2.400-2.500 GHz,

5.150-5.925 GHz

2.2 dBi,

4.0 dBi

< 2.0:1

360°

45°, 35°

10 watts

50 ohms

Vertical, linear

STANDARD CONFIGURATION

Model

Connector

Mount

PCTMI2458-RPSMA

Reverse Polarity SMA Male Inside Thread/Center Receptacle

Direct Access Point Mount (all models)

PCTMI2458-RPSMA

MECHANICAL & ENVIRONMENTAL SPECIFICATIONS

Dimensions

Housing Material

Temperature Range

1.7 L x 0.75 OD in (4.3 L x 1.9 cm)

PC

0°C to +55°C

RoHS

COMPLIANT
