23/32

STM690/704/795/802/804/805/806

DC AND AC PARAMETERS

This section summarizes the operating measure-

ment conditions, and the DC and AC characteris-

tics of the device. The parameters in the DC and

AC characteristics Tables that follow, are derived

from tests performed under the Measurement

Conditions summarized in Table 6, Operating and

AC Measurement Conditions. Designers should

check that the operating conditions in their circuit

match the operating conditions when relying on

the quoted parameters.

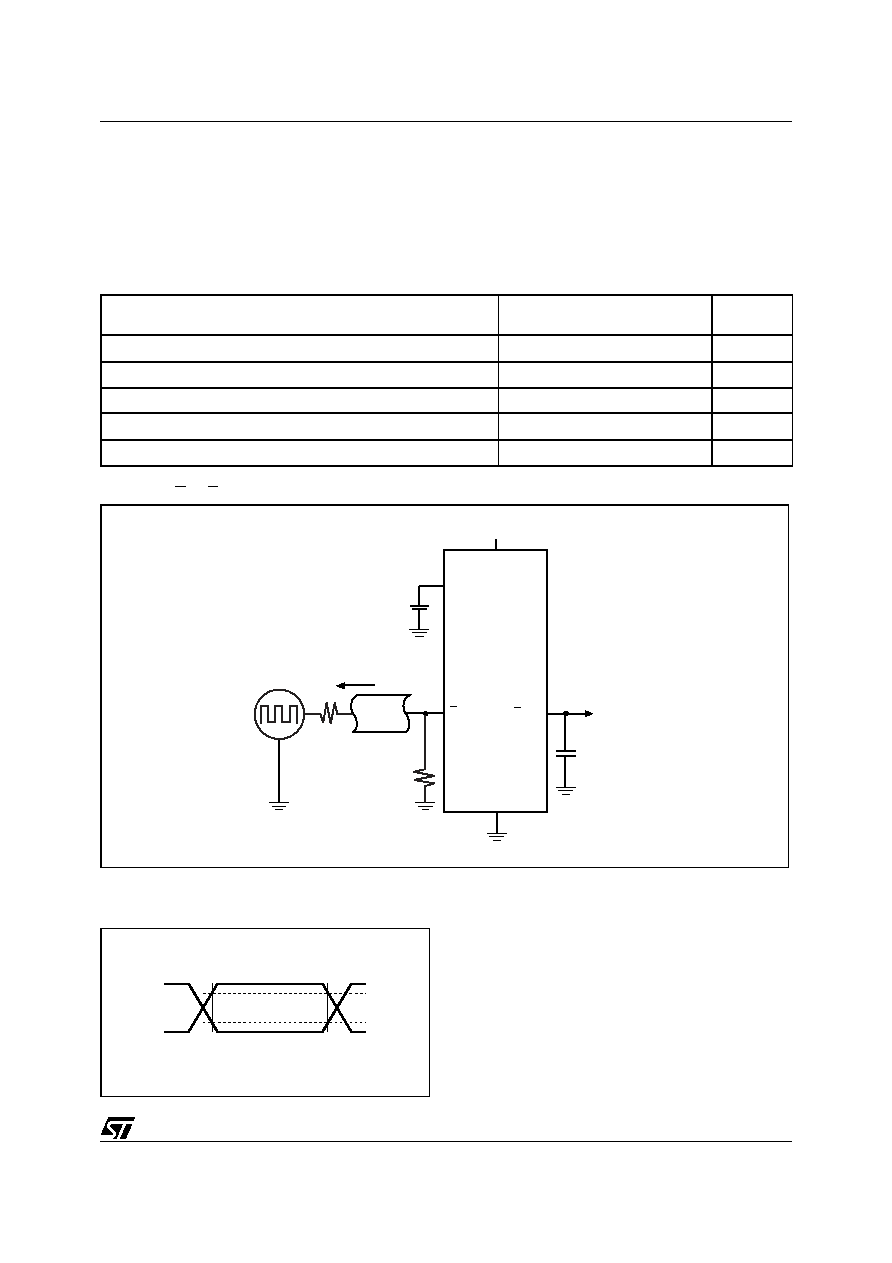

Table 6. Operating and AC Measurement Conditions

Figure 35. E to ECON Propagation Delay Test Circuit

Note: 1. CL includes load capacitance and scope probe capacitance.

Figure 36. AC Testing Input/Output Waveforms

Parameter

STM690/704/795/

802/804/805/806

Unit

VCC/VBAT Supply Voltage

1.0 to 5.5

Ambient Operating Temperature (TA)

–40 to 85

°C

Input Rise and Fall Times

≤ 5ns

Input Pulse Voltages

0.2 to 0.8VCC

Input and Output Timing Ref. Voltages

0.3 to 0.7VCC

AI08854

VBAT

ECON

VCC

3.6V

50pF CL

(1)

Ω Equivalent

Source Impedance

Ω Cable

Ω

STM690/704/

795/802/804/

805/806

GND

AI02568

0.8VCC

0.2VCC

0.7VCC

0.3VCC
