● Guardring for overvoltage protection

●Low forward voltage drop,Low power losses

● High forward surge capability

● High frequency operation

●Low forward voltage drop,Low power losses

● Solder dip 260 °C max. 10 s, per JESD 22-B106

For use in low voltage high frequency inverters,

freewheeling, DC/DC converters, and polarity protection

applications.

● Package : DO-2

Molding compound meets UL 94 V-0 flammability

rating, RoHS-compliant

● Terminals : Tin plated leads, solderable per J-STD-

002 and JESD22-B102

● Polarity: Color band denotes the cathode end

PARAMETER

SYMBOL

UNIT

SSL34

SSL36

SSL310

Device marking code

SSL34

SSL36

SSL310

Repetitive Peak Reverse Voltage

VRRM

V

40

60

100

Average Rectified Output Current

@60Hz sine wave, Resistance load, Ta (FIG.1)

IO

A

3.0

Forward Surge Current (Non-repetitive)

@60Hz Half-sine wave,1 cycle, Ta=25

IFSM

A

60

Storage Temperature

Tstg

-55 ~+150

Junction Temperature

Tj

-55 ~+125

-55 ~+150

PARAMETER

SYMBOL

UNIT

TEST CONDITIONS

SSL34

SSL36

SSL310

Maximum instantaneous

forward voltage drop per diode

VF

V

IFM=3.0A

0.45

0.5

0.6

Maximum DC reverse current

at rated DC blocking voltage

per diode

IR

mA

Ta=25°C

0.5

Ta=100

50

Typical junction capacitance

Cj

pF

Measured at 1MHZ

and Applied Reverse

Voltage of 4.0 V.D.C.

220

180

130

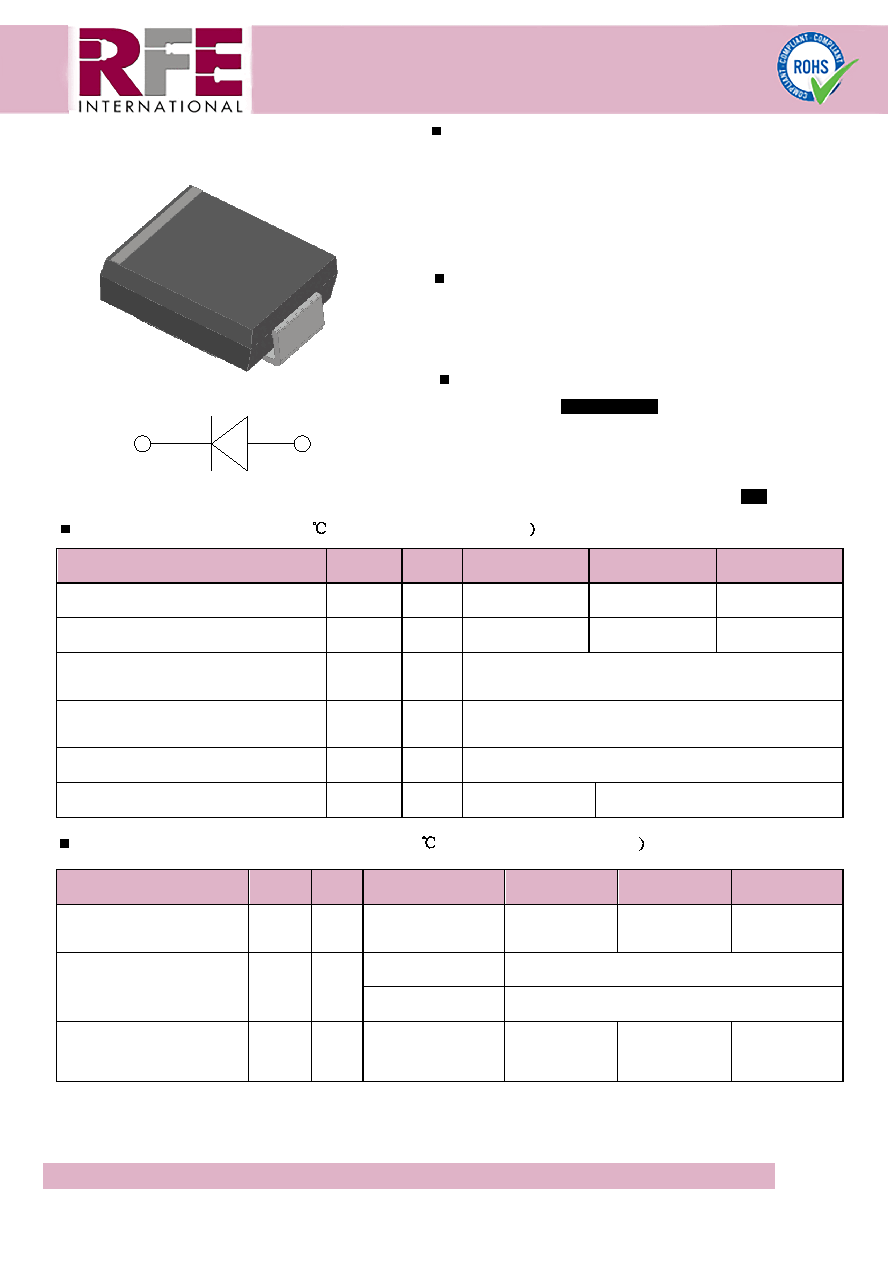

Surface Mount Schottky Rectifier

SSL34 Through SSL310

DO-214AB(SMC)

10-14-2022

Page 3 of 3

RFE International • Tel (949) 833-1988 • Fax (949) 833-1788 • E-mail sales@rfeinc.com

FEATURES

TYPICAL APPLICATIONS

MECHANICAL DATA

MAXIMUM RATINGS (Ta=25 Unless otherwise specified

ELECTRICAL CHARACTERISTICS (Ta=25 Unless otherwise specified

°C

°C

°C

°C
