Specifications:

Part Number

RI-TRP-R9VS

RI-TRP-W9VS

Functionality

Read Only

Read/Write

Memory (Bits)

64

80*

Memory (Pages)

1

1

Operating Frequency

134.2 kHz

Modulation

FSK (Frequency Shift Keying) 134.2 kHz / 123.2 kHz

Transmission Principle

HDX (Half Duplex)

Power Source

Powered from the reader signal (batteryless)

Typical Reading Range

≤ 120 cm**

Typical Programming Range

---

30 % of typical reading range

Typical Reading Time

70 ms

Typical Programming Time

---

309 ms

Typical Programming Cycles

---

100,000

Operating Temperature

-25 to +70

°C***

Storage Temperature

-25 to +85

°C

Case Material

Polypropylene, black

Protection Class

IP 67 ( product revision –11 )

Mounting

With screws or rivets on aluminum, iron or steel

EMC

Programmed code is not affected by normal electromagnetic interference or x-rays

Signal Penetration

Transponder can be read through virtually all non-metallic material

Mechanical Shock

IEC 68-2-27, Test Ea; 200 g, half sine, 3 ms, 3 axes, 6 shocks per axis

Vibration

IEC 68-2-6, Test Fc; 20 g, 20 - 500 Hz, 3 axes, 10 cycles per axis

Dimensions

102 mm

± 1 mm * 36 mm ± 1 mm * 16.5 mm ± 1 mm

Weight

43 g

* We recommend that you split each 80 bit page into 64 user programmable bits plus a 16 bit wide CRC CCITT Block Check Character as is done

by TI-RFID LF readers.

** Depending on RF regulation in country of use, the Reader Antenna configuration used, and the environmental conditions.

*** Reduced operating temperature of 0 to +70

°C if used with Series 2000 Standard Reader (RI-STU-MB2A/MB6A) or Standard RFM (RI-RFM-104B)

For more information, contact the sales office or distributor nearest you. This contact information can be found

on our web site at:

http://www.ti-rfid.com

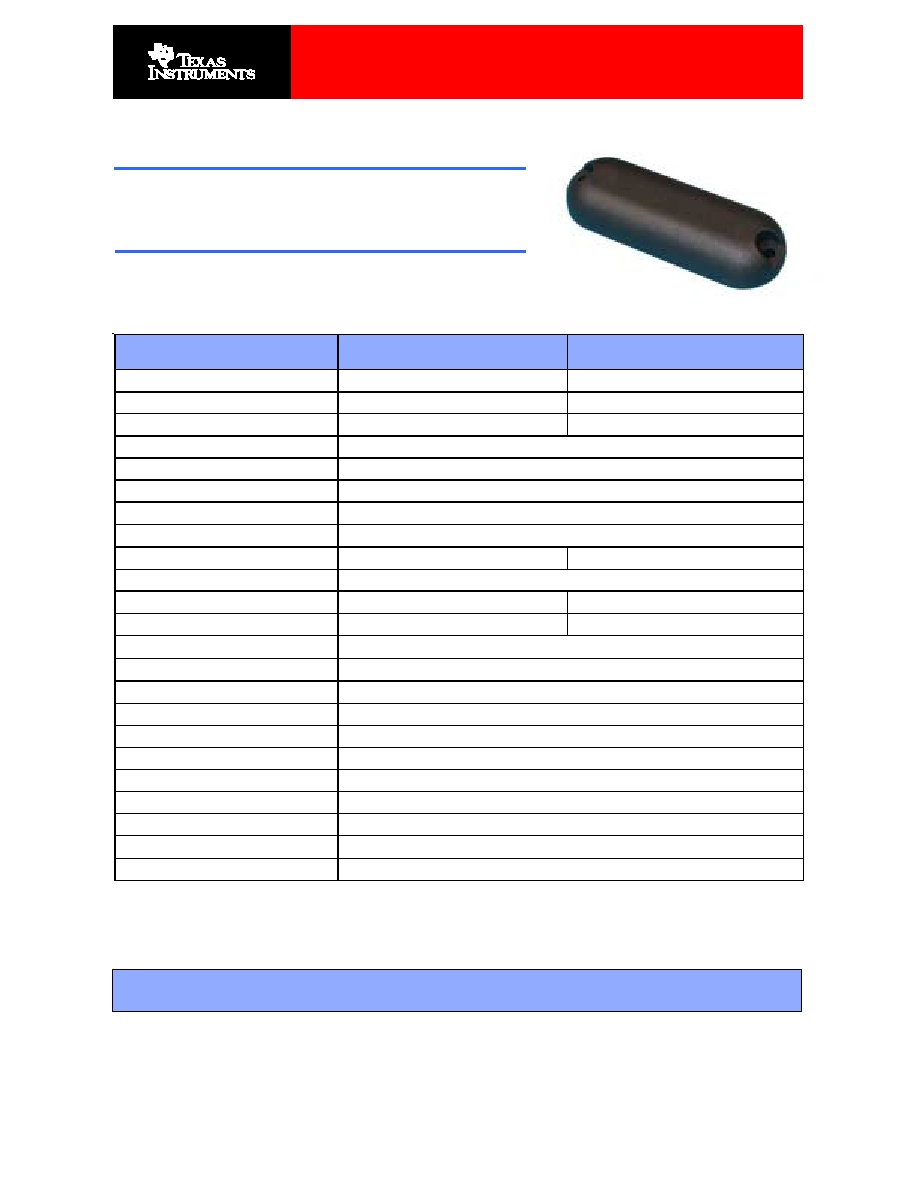

Data Sheet

Mount-on-Metal Transponder
