Part #:

Revision:

*Ipk = Instantaneous Peak

4411 South High School Road, Indianapolis, Indiana 46241 U.S.A · Phone: (317) 612-1000 Fax: (317) 612-1010

Dimensions:

Inches [mm]

cUL Recognized

ROHS Compliant

Operating Temperature:

-30° to +55° C

Housing Material:

Valox (UL94V-0), Octagonal, Black

Storage Temperature:

-30° to +60° C

Ipk Current*:

400mA

Connection:

Connect " + " to " + "

& " - " to " - " of

Power Supply

Connect " + " to " + " &

" - " & Low to " - " of

Power Supply

www.mspindy.com

Connect " + " to " + " &

" - " & Medium to

" - "

of Power Supply

Connect " + " to " + "

& " - " & High to " - "

of Power Supply

Voltage Rating:

3.3 - 5.5 VDC

Average Current Draw:

<10mA Typ

<200mA Typ.

<250mA Typ.

<250mA Typ.

PATENT NUMBER: 7880593

Weight Typical:

6.0g

Options:

Please contact factory.

Sound Level Category:

Silent

Loud

Loud

Loud

Mode of Operation:

Silent

Medium Pulse @ 5PPS

Medium Priority Alarm -

MP-perfusion.wav

repeating every 7.5 sec

High Priority Alarm -

HP-perfusion.wav

repeating every 2.5

sec

Loudness @ 10cm:

Silent

85 to 95 dB(A) Typ.

85 to 95 dB(A) Typ.

85 to 95 dB(A) Typ.

cUL Recognized to IEC60601-1-8 AMD2:2020

Mallory Sonalert Products,Inc.

MSW5PMHMP

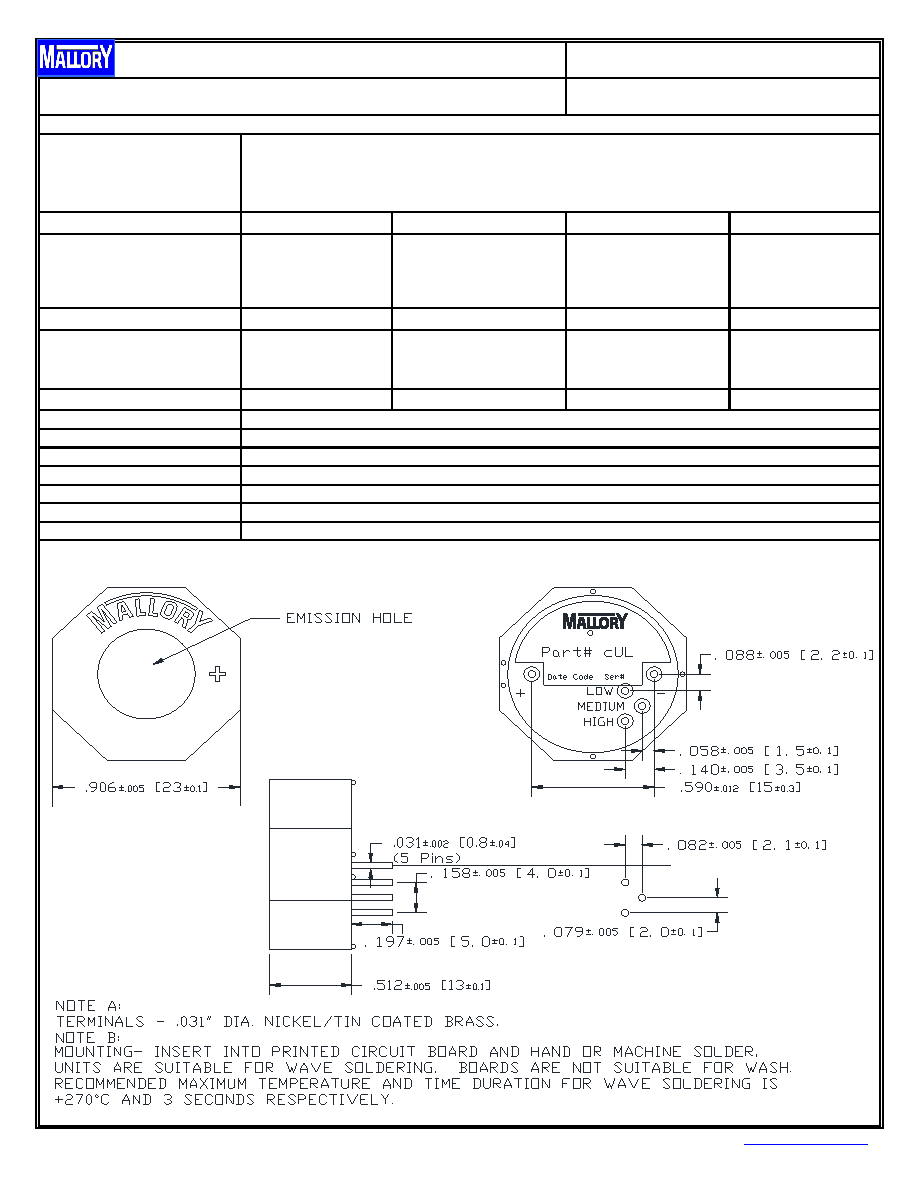

Sales Outline Drawing

C

Specifications:

Artificial Perfusion Melody

SO N A LERT

M a d e i n U . S . A .

R
