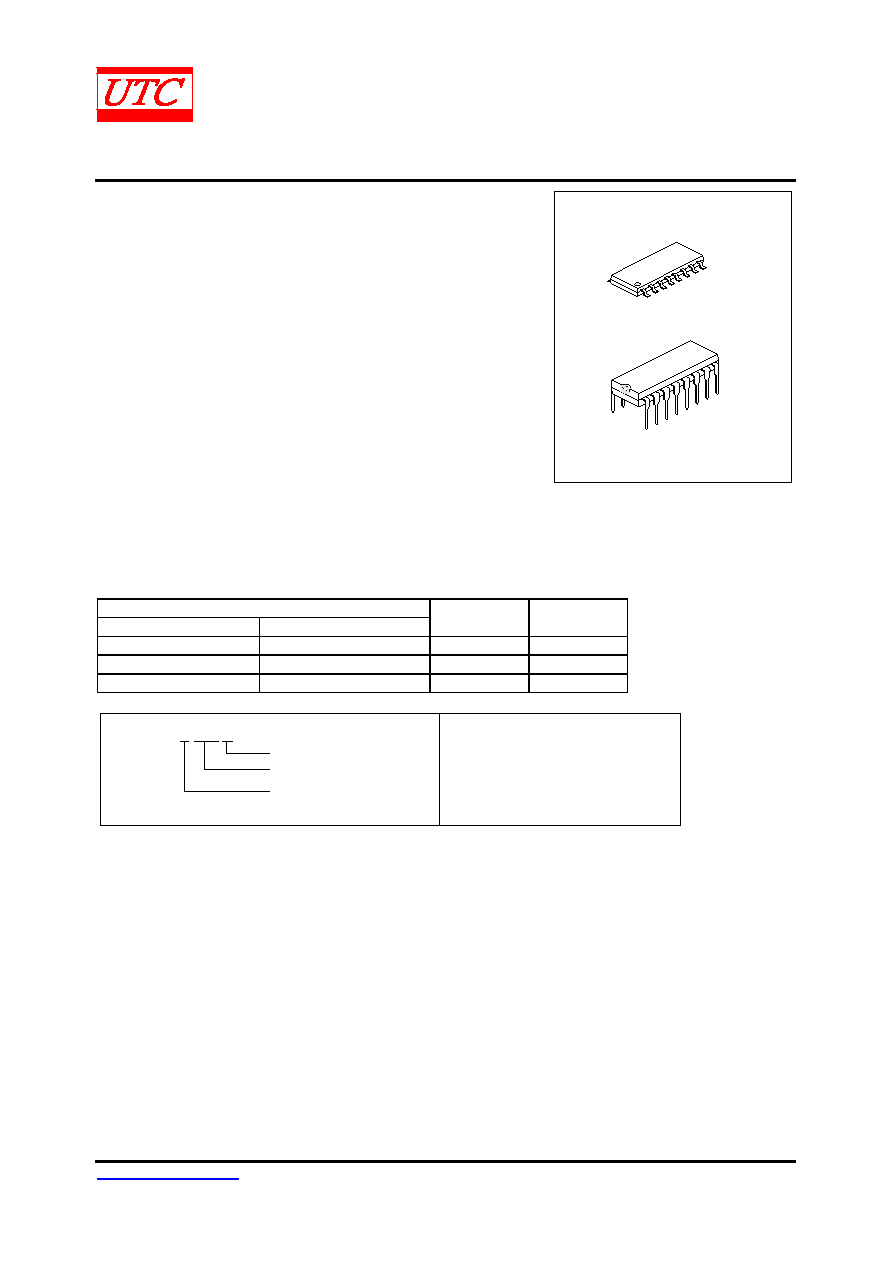

UNISONIC TECHNOLOGIES CO., LTD

TL494

LINEAR INTEGRATED CIRCUIT

www.unisonic.com.tw

1 of 7

Copyright © 2005 Unisonic Technologies Co., Ltd

QW-R103-004,D

VOLTAGE MODE PWM

CONTROL CIRCUIT

DESCRIPTION

The UTC TL494 incorporates all the functions required in the

construction

of

a

pulse-width

modulation

switching

circuit.

Designed primarily for switching power supply control or DC-DC

convectors, it offers the systems engineer the flexibility to tailor

control circuitry to its own application.

FEATURES

*Complete PWM power control circuitry

*Uncommitted outputs for 200mA sink or source current

*Output control selects single ended or push pull operation

*Internal circuitry prohibits double pulses over total range

*Easy synchronization

DIP-16

SOP-16

*Pb-free plating product number: TL494L

ORDERING INFORMATION

Order Number

Normal

Lead Free Plating

Package

Packing

TL494-D16-T

TL494L-D16-T

DIP-16

Tube

TL494-S16-R

TL494L-S16-R

SOP-16

Tape Reel

TL494-S16-T

TL494L-S16-T

SOP-16

Tube

TL494L-D16-T

(1)Packing Type

(2)Package Type

(3)Lead Plating

(1) R: Tape Reel, T: Tube

(2) D16: DIP-16, S16: SOP-16

(3) L: Lead Free Plating, Blank: Pb/Sn
