3. Test and Measurement Setup

3.1. Input Edge

Input edge rate is based on single-ended measurement. This is the minimum input edge rate at which the Si53112

is guaranteed to meet all performance specifications.

3.1.1. Measurement Points for Differential

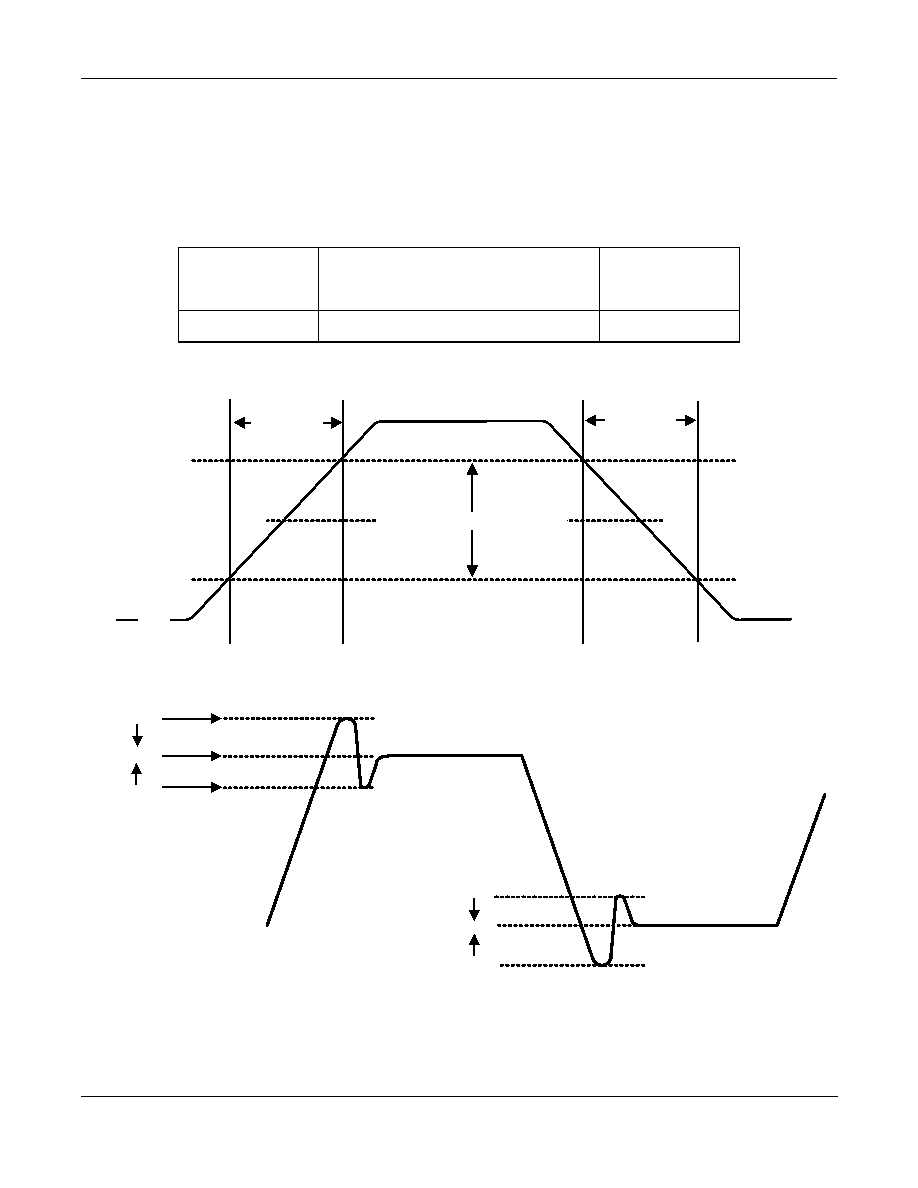

Figure 4. Measurement Points for Rise Time and Fall Time

Figure 5. Single-Ended Measurement Points for Vovs, Vuds, Vrb

Table 15. Input Edge Rate

Frequency

Min

Max

Unit

100 MHz

0.35

N/A

V/ns

133 MHz

0.35

N/A

V/ns

+150 mV

-150 mV

Slew_rise

+150 mV

-150 mV

Slew_fall

0.0 V

V_swing

0.0 V

Diff

Vovs

VHigh

Vrb

VLow

Vrb

Vuds
