5B37

Rev. 0 | Page 5 of 8

PIN CONFIGURATIONS AND FUNCTIONAL DESCRIPTIONS

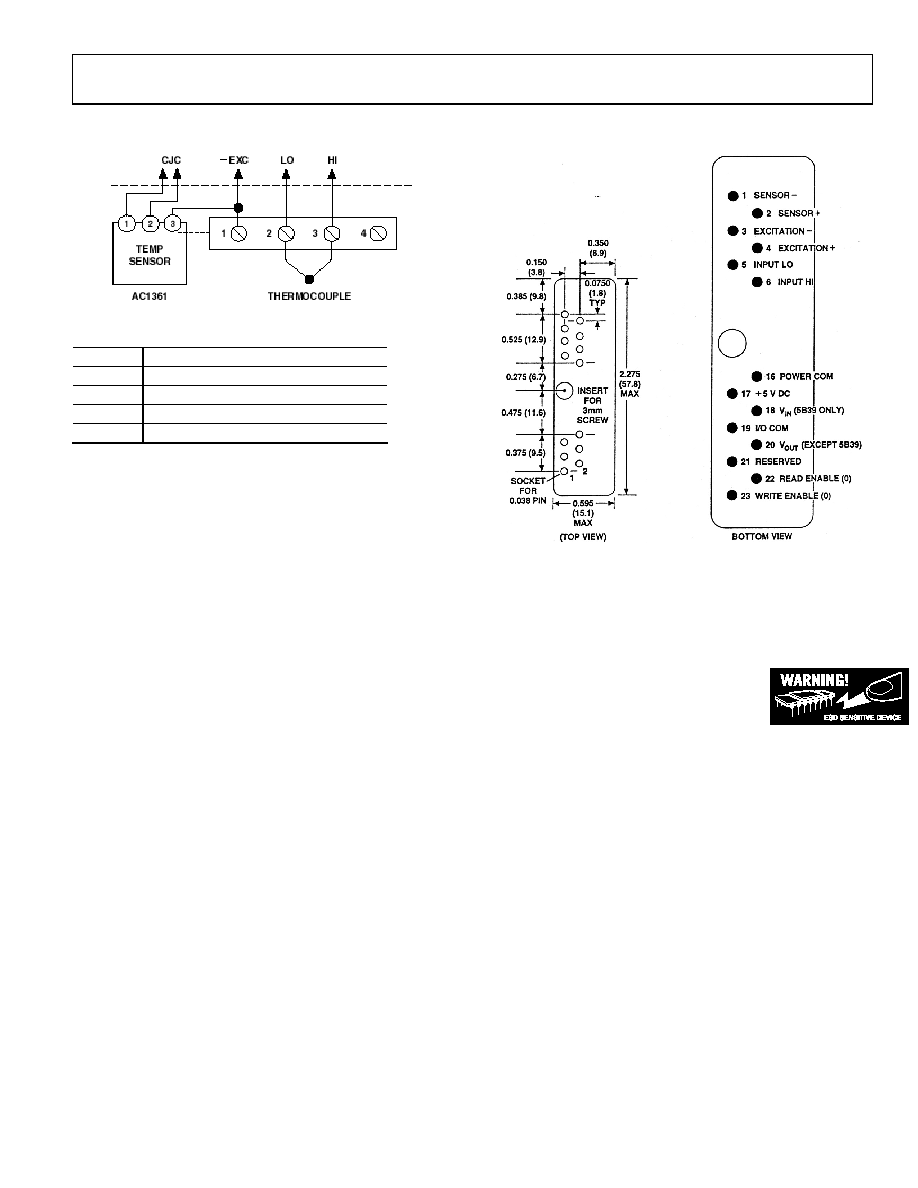

Figure 3 5B37 input Field Connections

Table 1. Pin Function Descriptions—

Pin No.

Description

1

- EXC

2

LO

3

HI

4

n/c

Figure 4 . Model 5B Series Module, with pin-out assignments.

ESD CAUTION

ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily accumulate on the human

body and test equipment and can discharge without detection. Although this product features proprietary ESD

protection circuitry, permanent damage may occur on devices subjected to high energy electrostatic discharges.

Therefore, proper ESD precautions are recommended to avoid performance degradation or loss of functionality.
