Data Sheet

ADCA3280

TYPICAL PERFORMANCE CHARACTERISTICS

analog.com

Rev. 0 | 11 of 18

NOISE PERFORMANCE

Noise figure measured using the schematic and layout shown in Figure 24. Reported values include the losses of the balun, PCB traces, and

other components in the input circuit. VDD = 21 V, IDD = 540 mA, TPADDLE = 35°C, and ZS = ZL = 75 Ω, unless otherwise noted.

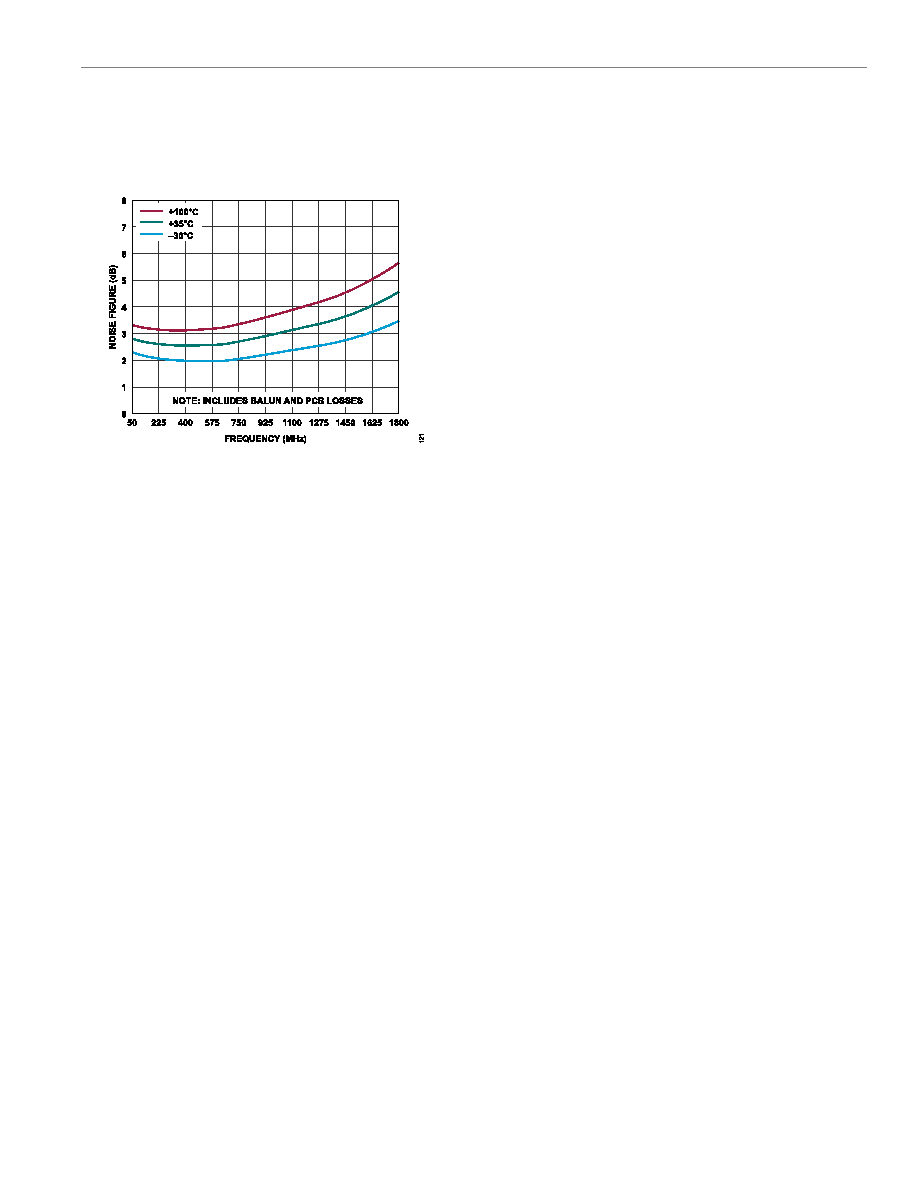

Figure 21. Noise Figure vs. Frequency over Temperature
