AN1262 APPLICATION NOTE

The optimum value will be found empirically once the transformer construction has been frozen. Also the divider

RH, RL that sets the VCC voltage (and as a consequence, the output voltage) is likely to need adjustment after

bench verification. Some improvement in terms of load regulation can be achieved by using an inductor (typi-

cally, between 1 and 10

µH) instead of a resistor. Any inexpensive axial inductor able to carry few mA will serve

the purpose.

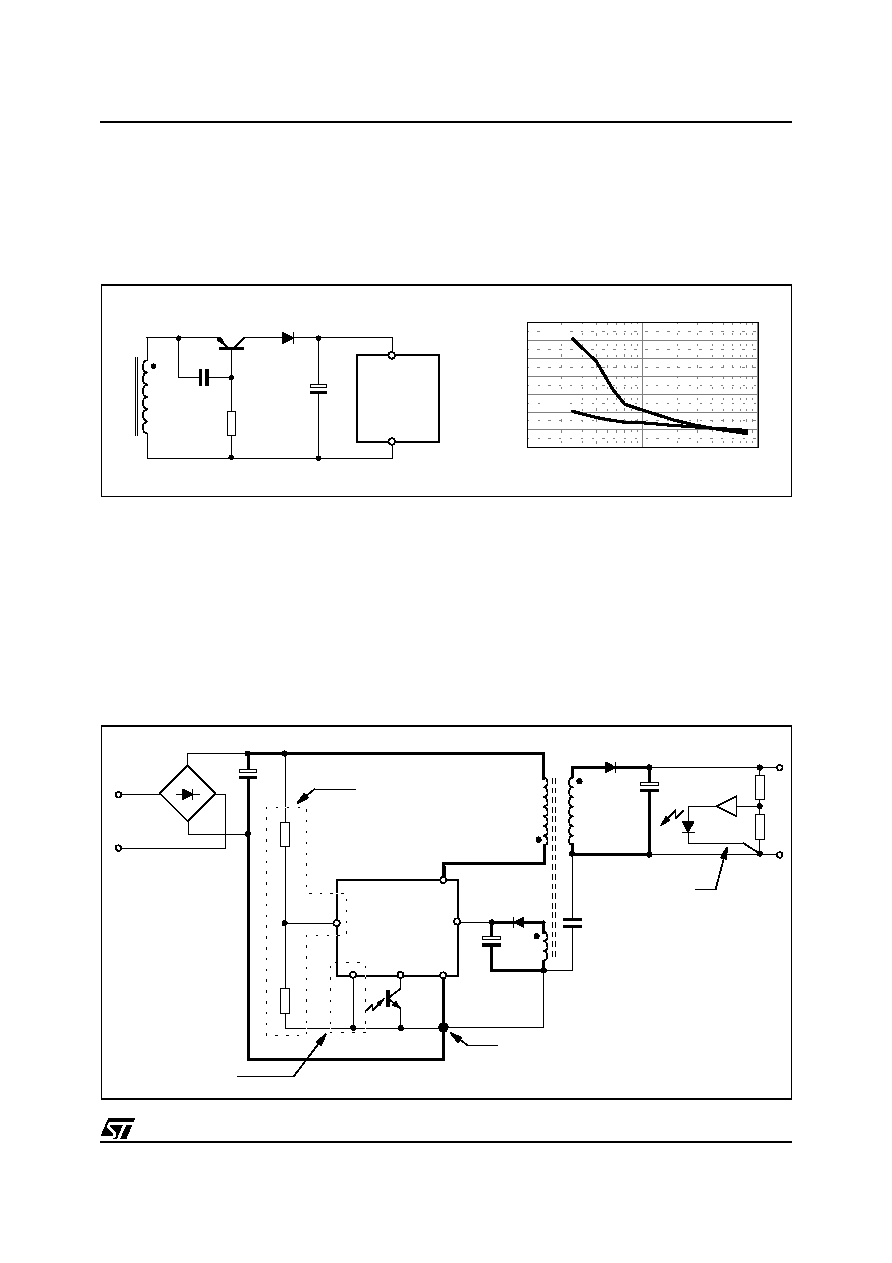

Figure 17. Leading Edge Blanking (LEB) circuit for leakage inductance spikes filtering

However, the most effective way to improve regulation is to use the circuit shown in figure 17, which blanks the

spike appearing at the leading edges of the voltage generated by the self-supply winding. This spike, due to the

transformer's leakage inductance, is the major responsible for the poor load regulation.
