Dimensions are shown in inches (millimeters).

Dimensions subject to change.

MIL-C-24308 Filter Connectors

TD1*

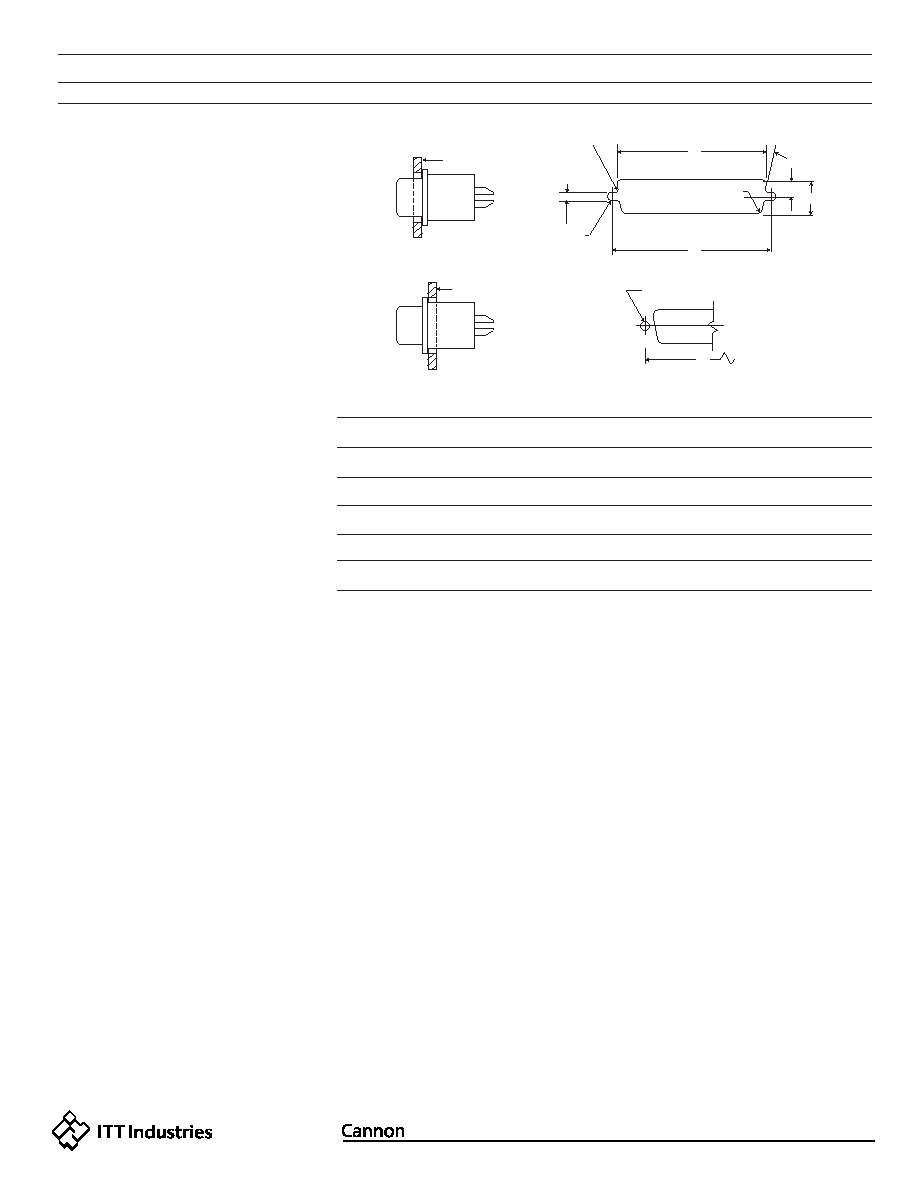

Mounting Panel Cutout Dimensions

PANEL

Rear Mounting

Front Mounting

Connector

Front Mounting

Rear Mounting

Front Mounting

Rear Mounting

Front Mounting

Rear Mounting

Front Mounting

Rear Mounting

Front Mounting

Rear Mounting

.833 (21.16)

.806 (20.47)

1.161 (29.49)

1.134 (28.80)

1.700 (43.18)

1.674 (42.52)

2.349 (59.66)

2.326 (59.08)

2.254 (57.25)

2.218 (56.34)

.984 (24.99)

1.312 (33.32)

1.852 (47.04)

2.500 (63.50)

2.406 (61.11)

.485 (12.32)

.449 (11.40)

.485 (12.32)

.449 (11.40)

.485 (12.32)

.449 (11.40)

.485 (12.32)

.449 (11.40)

.593 (15.06)

.555 (14.09)

.243 (6.17)

.225 (5.72)

.243 (6.17)

.225 (5.72)

.243 (6.17)

.225 (5.72)

.243 (6.17)

.225 (5.72)

.297 (7.54)

.278 (7.06)

.065 (1.65)

.132 (3.35)

.065 (1.65)

.132 (3.35)

.065 (1.65)

.132 (3.35)

.065 (1.65)

.132 (3.35)

.065 (1.65)

.132 (3.35)

TD1E

TD1A

TD1B

TD1C

TD1D

Mounting

Method

_ .005 (0.13)

Standard Cutout

Optional Cutout

for Rear Mounting

PANEL

.032 (0.81)

RADIUS MAX. TYP.

FULL

RADIUS

.120 +_ .002

(3.04 +_ 0.05)

BOTH SIDES

.120 +_ .002

(3.04 +_ 0.05)

DIAMETER

J RADIUS

4 PLACES

10˚

(TYP.)
