ADR130

Rev. 0 | Page 8 of 16

0.01

0.02

0.03

0.04

0.05

–40 –25 –10

110 125

TEMPERATURE (°C)

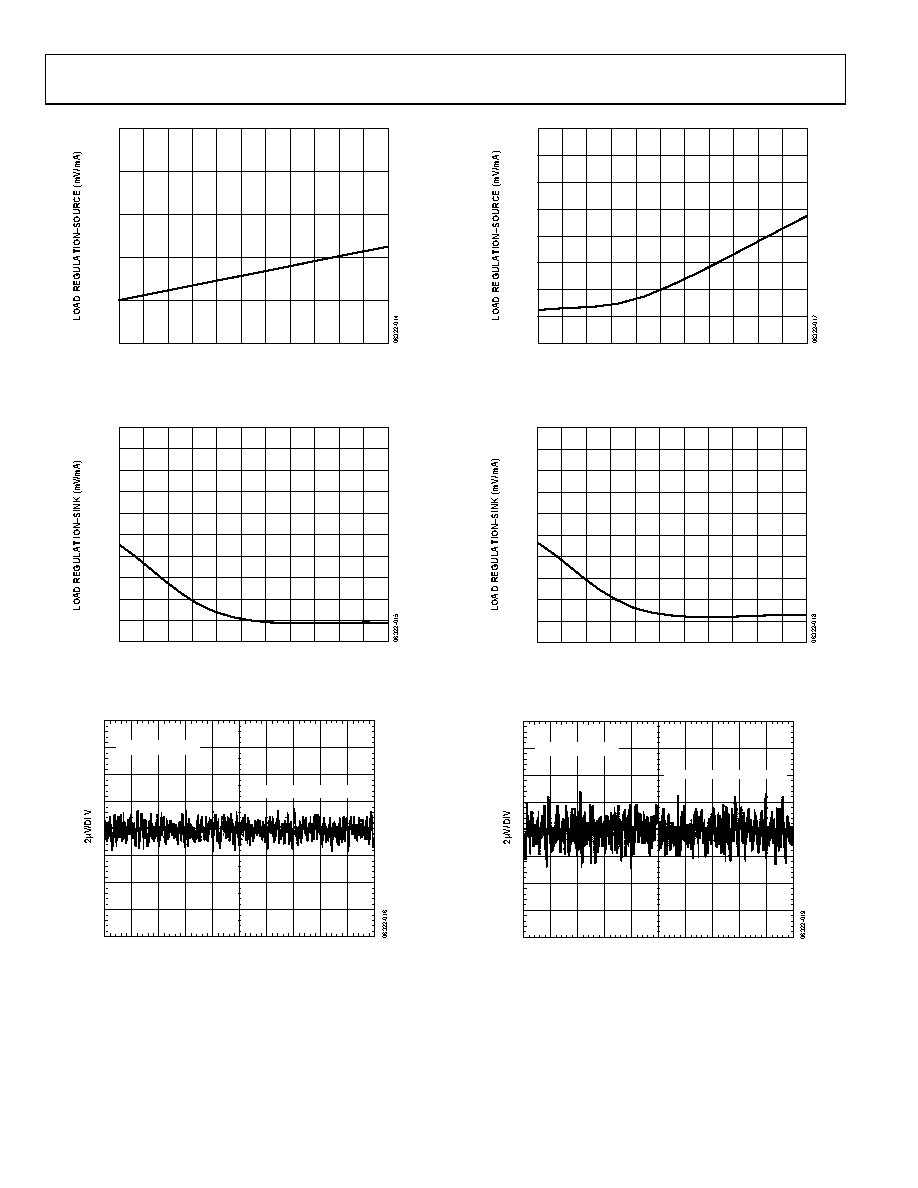

Figure 14. Load Regulation (Source) vs. Temperature, VOUT = 0.5 V

–40 –25 –10

110 125

TEMPERATURE (°C)

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

1.0

Figure 15. Load Regulation (Sink) vs. Temperature, VOUT = 0.5 V

CIN = COUT = 0.1µF

TIME (1s/DIV)

CH1 PEAK-TO-PEAK 3.16µV

Figure 16. 0.1 Hz to 10 Hz Noise, VOUT = 0.5 V

0.02

0.04

0.06

0.08

0.01

0.03

0.05

0.07

–40 –25 –10

110 125

TEMPERATURE (°C)

Figure 17. Load Regulation (Source) vs. Temperature, VOUT = 1 V

–40 –25 –10

110 125

TEMPERATURE (°C)

0.2

0.4

0.6

0.8

2.0

1.0

1.2

1.4

1.6

1.8

Figure 18. Load Regulation (Sink) vs. Temperature, VOUT = 1 V

CIN = COUT = 0.1µF

TIME (1s/DIV)

CH1 PEAK-TO-PEAK 5.72µV

Figure 19. 0.1 Hz to 10 Hz Noise, VOUT = 1 V
