VIPer50/SP

- VIPer50A/ASP

SMPS PRIMARY I.C.

1

s

ADJUSTABLE SWITCHING FREQUENCY UP

TO 200 kHz

s

CURRENT MODE CONTROL

s

SOFT START AND SHUT DOWN CONTROL

s

AUTOMATIC BURST MODE OPERATION IN

STAND-BY CONDITION ABLE TO MEET

“BLUE ANGEL” NORM (<1W TOTAL POWER

CONSUMPTION)

s

INTERNALLY TRIMMED ZENER REFERENCE

s

UNDERVOLTAGE LOCK-OUT WITH

HYSTERESIS

s

INTEGRATED START-UP SUPPLY

s

AVALANCHE RUGGED

s

OVERTEMPERATURE PROTECTION

s

LOW STAND-BY CURRENT

s

ADJUSTABLE CURRENT LIMITATION

DESCRIPTION

VIPer50™/50A,

made

using

VIPower

M0

Technology, combines on the same silicon chip a

state-of-the-art PWM circuit together with an

optimized high voltage avalanche rugged Vertical

Power MOSFET (620V or 700V / 1.5A).

Typical applications cover off line power supplies

with a secondary power capability of 25W in wide

range condition and 50W in single range or with

doubler configuration. It is compatible from both

primary or secondary regulation loop despite

using

around

50%

less

components

when

compared with a discrete solution. Burst mode

operation is an additional feature of this device,

offering the possibility to operate in stand-by

mode without extra components.

TYPE

VDSS

In

RDS(on)

VIPer50/SP

620V

1.5 A

5

Ω

VIPer50A/ASP

700V

1.5 A

5.7

Ω

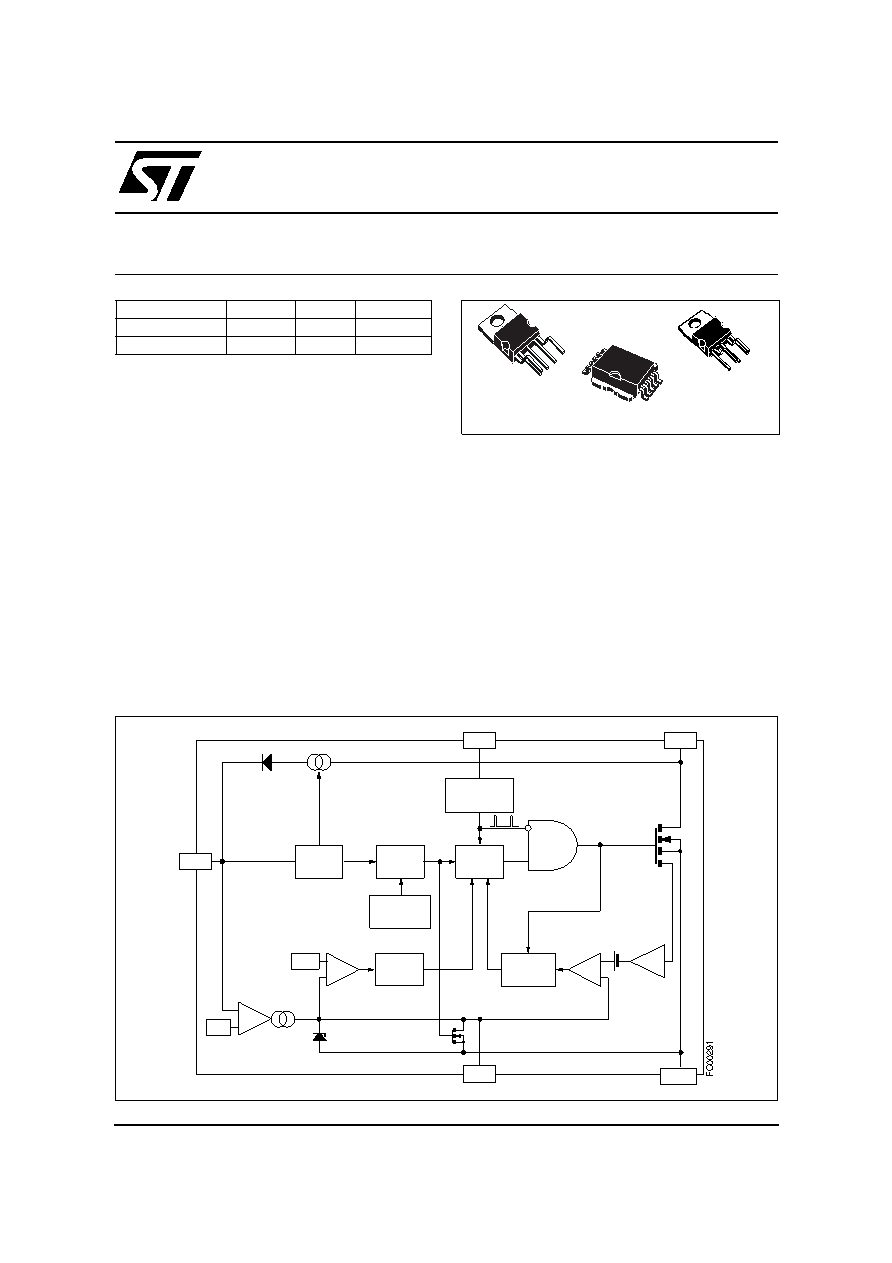

BLOCK DIAGRAM

PENTAWATT HV

1

10

PowerSO-10™

(022Y)

VDD

OSC

COMP

DRAIN

SOURCE

13 V

UVLO

LOGIC

SECURITY

LATCH

PWM

LATCH

FF

R/S

S

Q

S

R1

R2 R3

Q

OSCILLATOR

OVERTEMP.

DETECTOR

ERROR

AMPLIFIER

_

+

0.5 V

+

_

1.7

µ s

DELAY

250 ns

BLANKING

CURRENT

AMPLIFIER

ON/OFF

0.5V

2 V/A

_

+

_

4.5 V
