Data Sheet

ADAR5000

17 GHz to 32 GHz, 4-Way RF Splitter Combiner

Rev. 0

DOCUMENT FEEDBACK

TECHNICAL SUPPORT

Information furnished by Analog Devices is believed to be accurate and reliable "as is". However, no responsibility is assumed by Analog

Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to

change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and

registered trademarks are the property of their respective owners.

FEATURES

►

4-way RF splitter combiner

►

Frequency range: 17 GHz to 32 GHz

►

Insertion loss (excess of 6.0 dB): −1.7 dB at 22 GHz to 27 GHz

►

Return loss (S1): −17 dB at 22 GHz to 27 GHz

►

Isolation: −17 dB at 22 GHz to 27 GHz

►

2.460 mm x 2.460 mm x 0.500 mm, wafer level, chip-scale

package

APPLICATIONS

►

General-purpose microwave signal distribution

►

Phased-array satellite communication (satcom) systems

►

Phased-array radar systems

GENERAL DESCRIPTION

The ADAR5000 is a 1-to-4 Wilkinson power splitter that is designed

for space-sensitive microwave signal distribution applications. Ex-

cess insertion loss ranges from −1.5 dB to −2.5 dB from 17 GHz

to 32 GHz. The four outputs are matched in both phase and

amplitude, making the ADAR5000 ideal for signal distribution appli-

cations requiring low time skew between channels. The ADAR5000

can also be used as a combiner, combining input signals at the P1,

P2, P3, and P4 ports to an output at the S1 port. The ADAR5000 is

housed in a compact, 2.460 mm x 2.460 mm x 0.500 mm WLCSP,

which makes it ideal for use in planar, phased-array antenna sys-

tems that require a tight pitch between elements.

The ADAR5000 is fabricated on a passive silicon process, and it is

specified to operate from −40°C to +85°C.

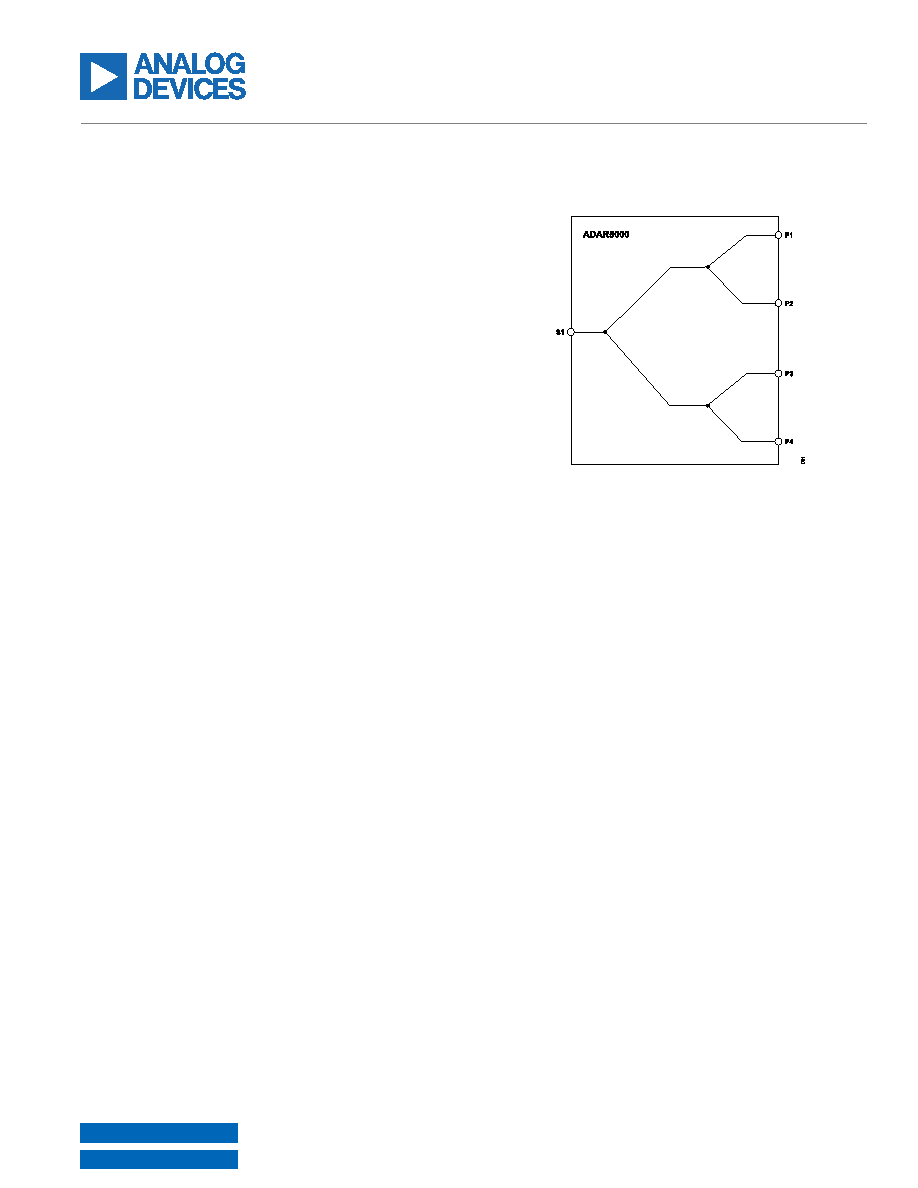

FUNCTIONAL BLOCK DIAGRAM

Figure 1. Functional Block Diagram
