TSSP570..

www.vishay.com

Vishay Semiconductors

Datasheet Values Refer to PCN-OPT-1224-2022

Rev. 2.4, 16-Aug-2022

5

Document Number: 82482

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

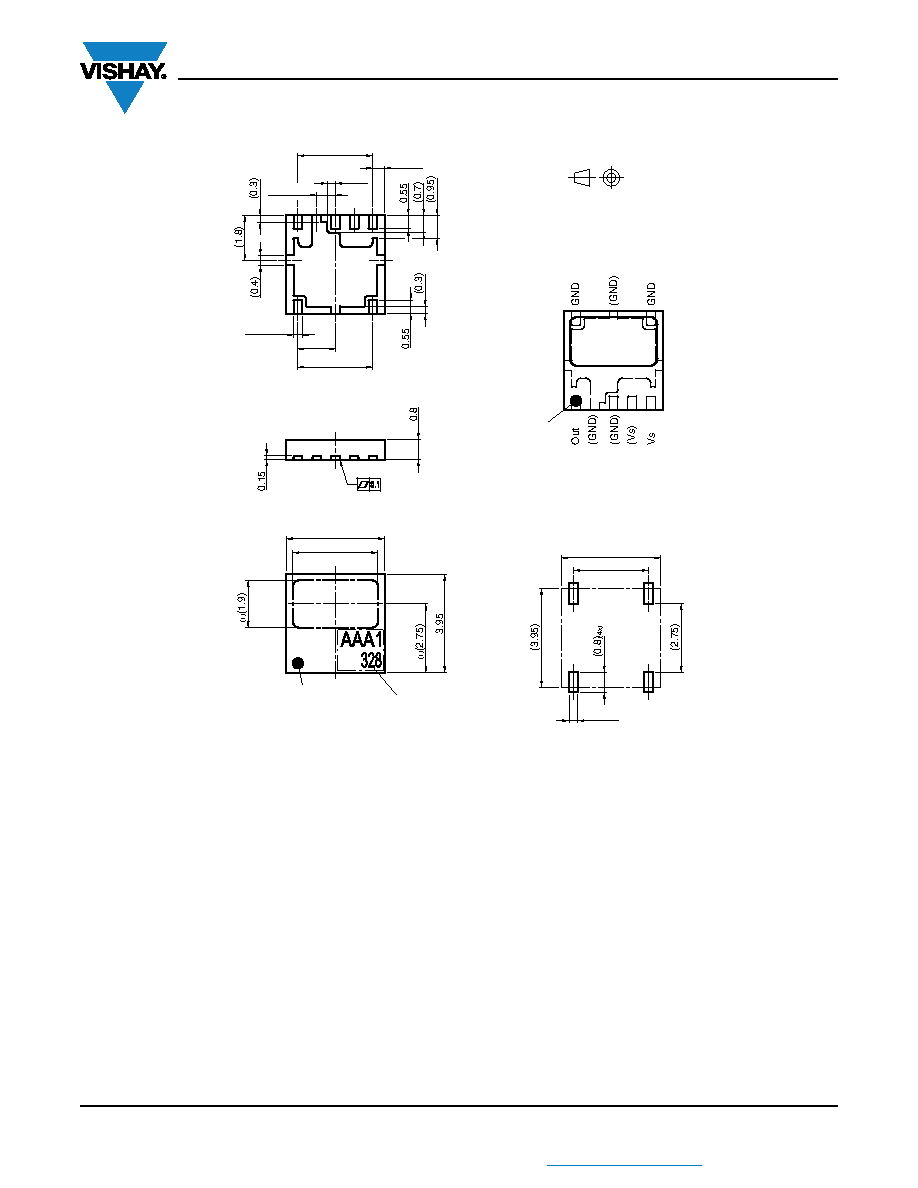

PACKAGE DIMENSIONS in millimeters

Notes

(1) Optically effective area

(2) Pins connected internally. It is not necessary to connect externally

Drawing-No.: 6.550-5315.01-4

Issue: 2; 12.02.14

Not indicated tolerances ± 0.1

technical drawings

according to DIN

specifications

Proposed pad layout from

component side

(dim. for reference only)

(3.95)

(0.35)

(3)

(4 x)

0.75± 0.05

4 x 0.75 = 3

0.35± 0.05

(8 x)

1.5

3

(0.3)

0.475

Pinning from topview

1

2

3

4

5

8

7

6

Pin 1 identification

(2)

(2)

(2)

(2)

3.95

(3.4)

marking area

Pin 1 Identification

(1)
