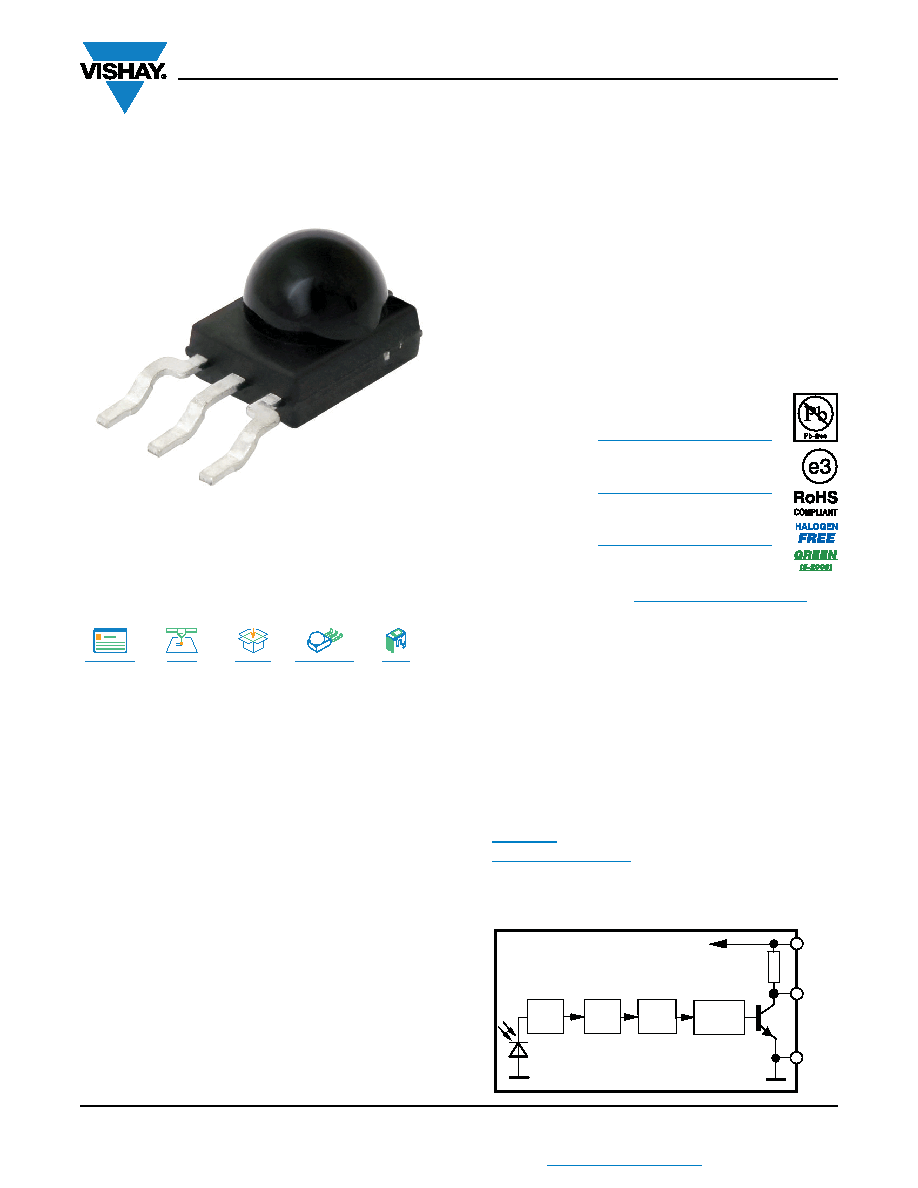

TSSP530..DF1P

www.vishay.com

Vishay Semiconductors

Datasheet Values Refer to PCN-OPT-1225-2022-REV-0

Rev. 1.2, 17-Jan-2023

1

Document Number: 82893

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

IR Sensor Module For Reflective Sensor, Light Barrier,

And Fast Proximity Applications

LINKS TO ADDITIONAL RESOURCES

DESCRIPTION

The TSSP530..DF1P series are compact infrared detector

modules

for

presence

and

fast

proximity

sensing

applications. They provide an active low output in response

to infrared bursts at 940 nm. The frequency of the burst

should correspond to the carrier frequency shown in the

parts table.

This component has not been qualified according to

automotive specifications.

FEATURES

• Presence sensor: up to 2 m distance,

find more info at: www.vishay.com/doc?49009

• Light barrier: up to 12 m distance, TSAL6200

with IF = 50 mA,

find more info at: www.vishay.com/doc?49650

• Fast proximity: up to 2 m range at 5 ms

response time,

find more info at: www.vishay.com/doc?82741

• Supply voltage: 2.0 V to 5.5 V

• Material

categorization:

for

definitions

of

compliance please see www.vishay.com/doc?99912

APPLICATIONS

• Reflective sensors for hand dryers, towel or soap

dispensers, water faucets, toilet flush

• Vending machine fall detection

• Security and pet gates

• Person or object vicinity switch

• Fast proximity sensors for toys, robotics, drones, and

other consumer and industrial uses

DESIGN SUPPORT TOOLS

• 3D models

• Window size calculator

BLOCK DIAGRAM

22911

22911

Product Page

Marking

Packages

Bends and Cuts

Holders

33 k

Ω

2

3

1

V

S

OUT

Demo-

GND

pass

AMP

Input

PIN

Band

dulator

16833_8
